Zephyr Venezia ZVE-E30DS Guide D'utilisation, D'entretien Et D'installation page 12

Installation Instructions

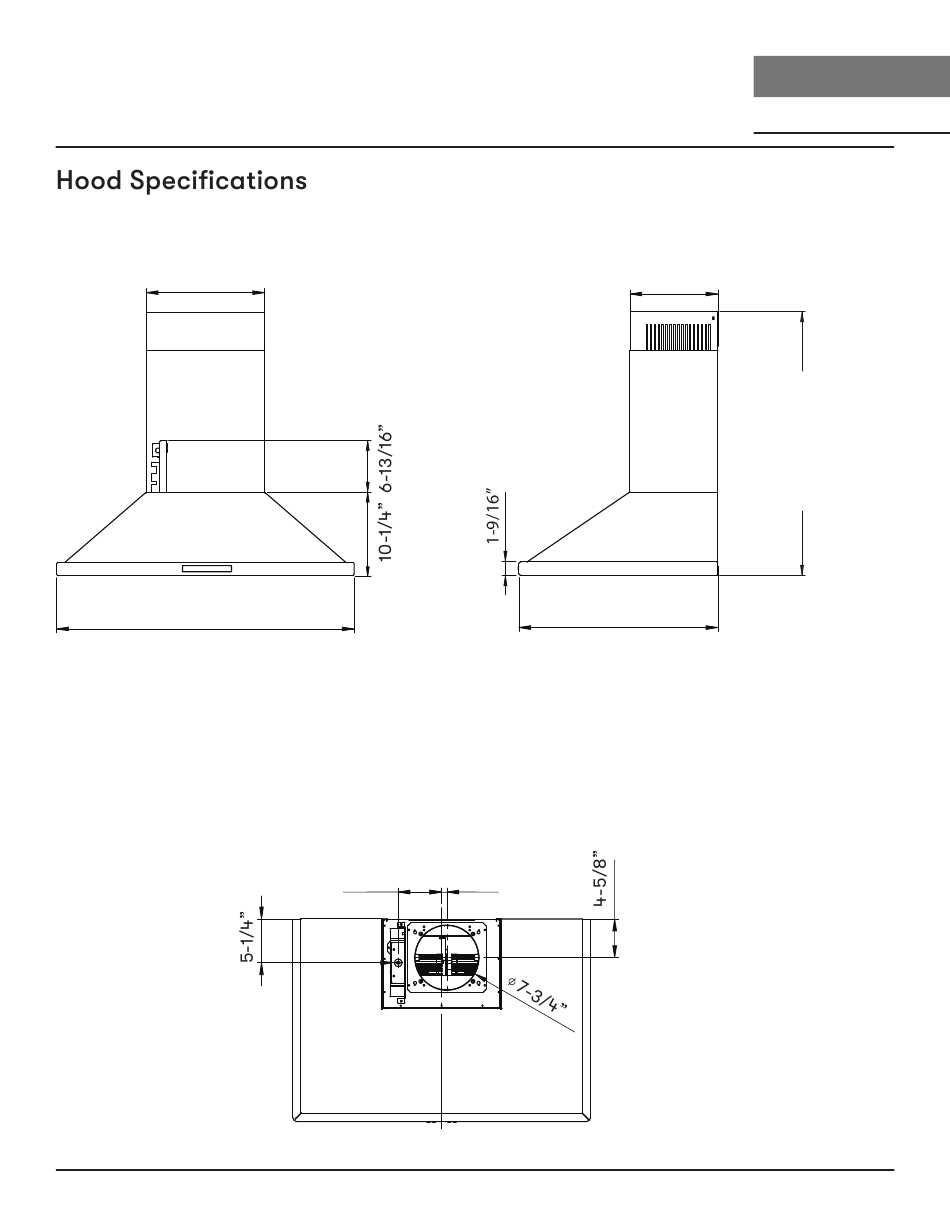

Front of Hood
14-5/16"
29-15/16", 35-7/8", 41-7/8"
12
Top of Hood
5-1/4" 7/16"
AC In
C/L
Venezia Use, Care, and Installation Guide
Side of Hood
10-9/16"
STANDARD
min. ducted - 27"
min. recirc. - 31
max. - 44"
Z1C-01VE
min. ducted - 45"
min. recirc. - 49-
max. - 80"
24"
C O R E
V E N E Z I A
WA L L
"
-1/2
"
1/2
