Detaching Docking Station

To detach the Docking Station, slide the tablet support release latch to the left and lift the Hybrid Tablet away from
the Docking Station to detach it. (Figure 23)

Changing the Battery

The keyboard docking station is equipped with a rechargeable, removable battery. The battery can be charged by
connecting the AC Adapter to the DC In port on the left side of the docking station (Figure 20).
Lift Point
Battery Lock
Battery Latch

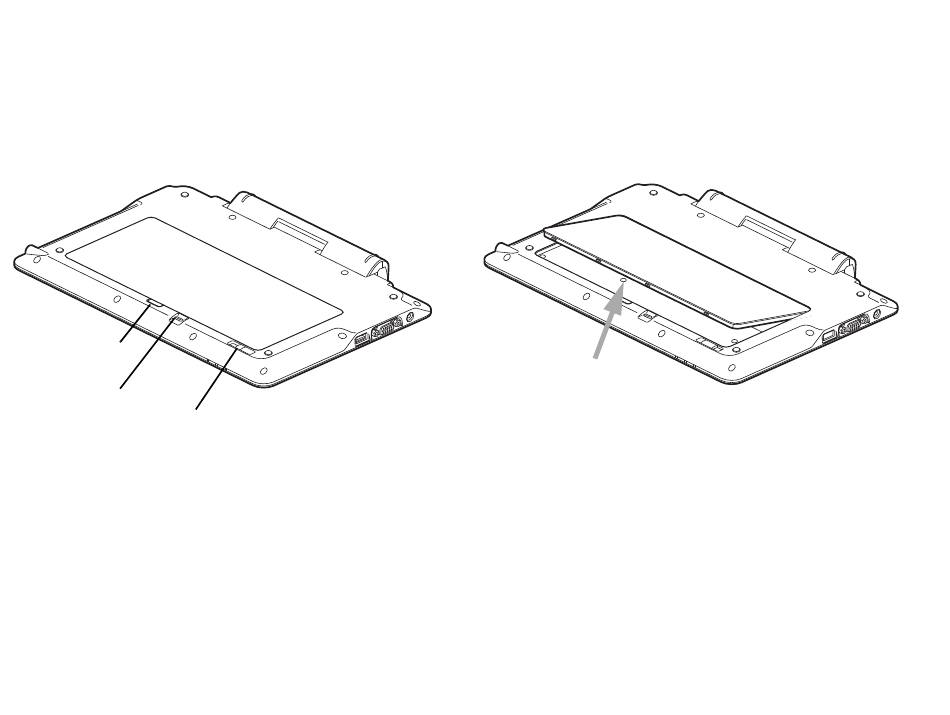

Figure 24. Docking Station - Bottom
To remove the battery for replacement with a new battery or when storing the docking station for a long period of
time, perform the following steps (Figure 25):
Turn the docking station upside down.
1
While pushing the battery lock, slide the battery latch to release the battery.
2
Lift the battery at the lift point and remove it from the battery bay.
3
Figure 25. Removing the Battery
