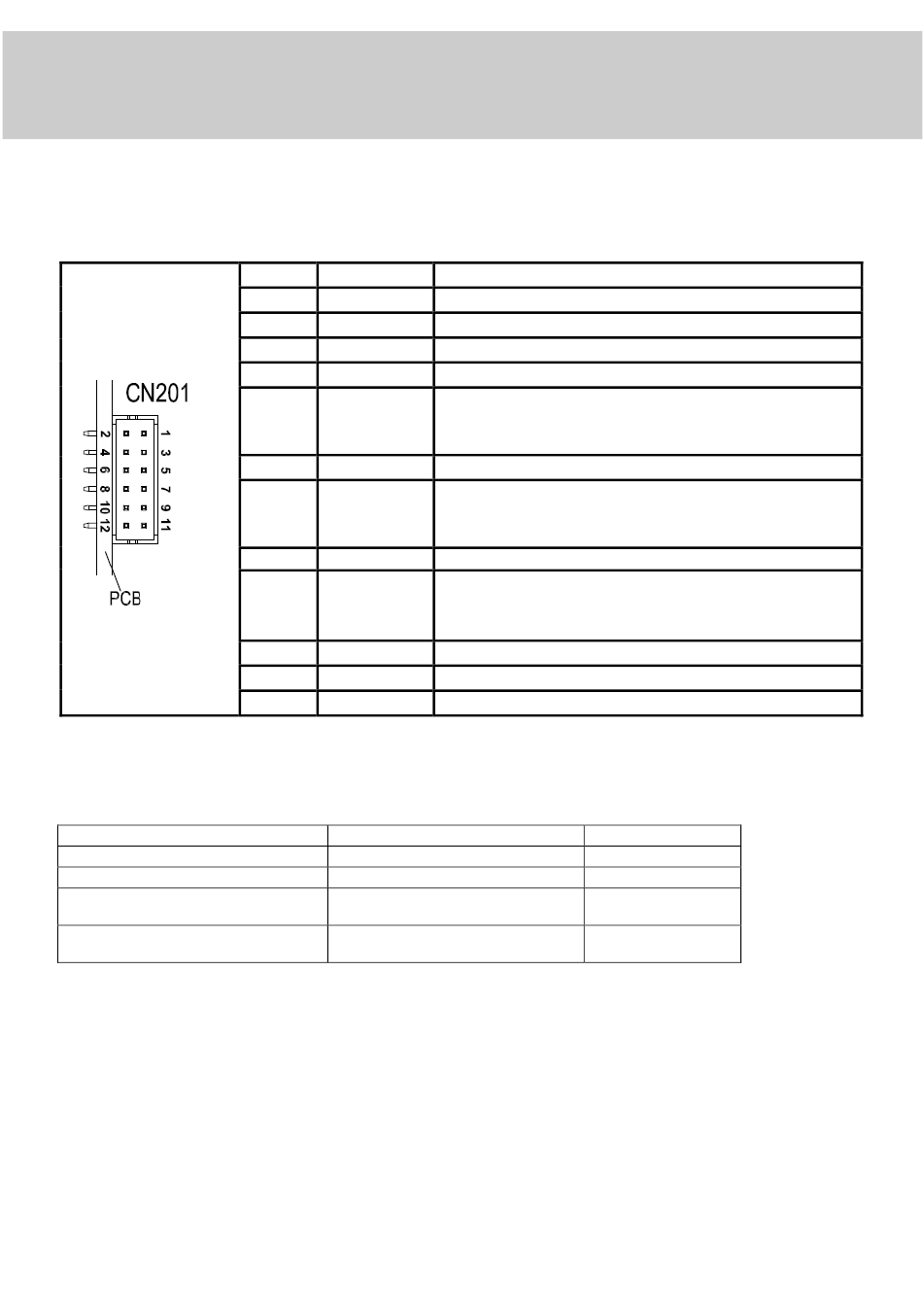

CN201 Connector Pin Configuration and Function
CN201 Connector, Housing and Terminal Pins
PART DESCRIPTION
PIN HEADER
SOCKET HOUSING
TERMINAL PINS
HAND CRIMPING TOOL
Pin No.
Configuration
1
+Vm
2
+S
3
-Vm
4
-S
5
DCOK
6
COM
7
5VSB
8
5V COM
9
CNT+
10
CNT-
11
PV
12
COM
PART NAME
S12B-PHDSS(LF)(SN)
PHDR-12VS
SPHD-002T-P0.5(AWG28~24)
SPHD-001T-P0.5(AWG26~22)
YRS-620(SPHD-002T-P0.5)
YC-610R(SPHD-001T-P0.5)
Function
+Output Voltage Monitor
+Sensing
-Output Voltage Monitor
-Sensing
DCOK signal is an open collector output signal, referenced to
pin6 (COM). As the output voltage drops, DCOK signal will
output "High".
Return loop for DCOK signal.
Auxiliary voltage output, 4.75~5.25V, referenced to pin8 (5V
COM). The maximum load current is 0.3A. This output is not
controlled by the remote ON/OFF control.
Return loop for 5VSB output.
Remote ON/OFF control terminal (When CNT+ is pulled to
TTL low, power supply unit turns ON. Otherwise, it turns
OFF)
Return loop for CNT+ signal
Output voltage external control terminal
Return loop for PV signal.
MANUFACTURER
JST
JST
JST
JST
2
TDK-Lambda
GWS
Series
500
