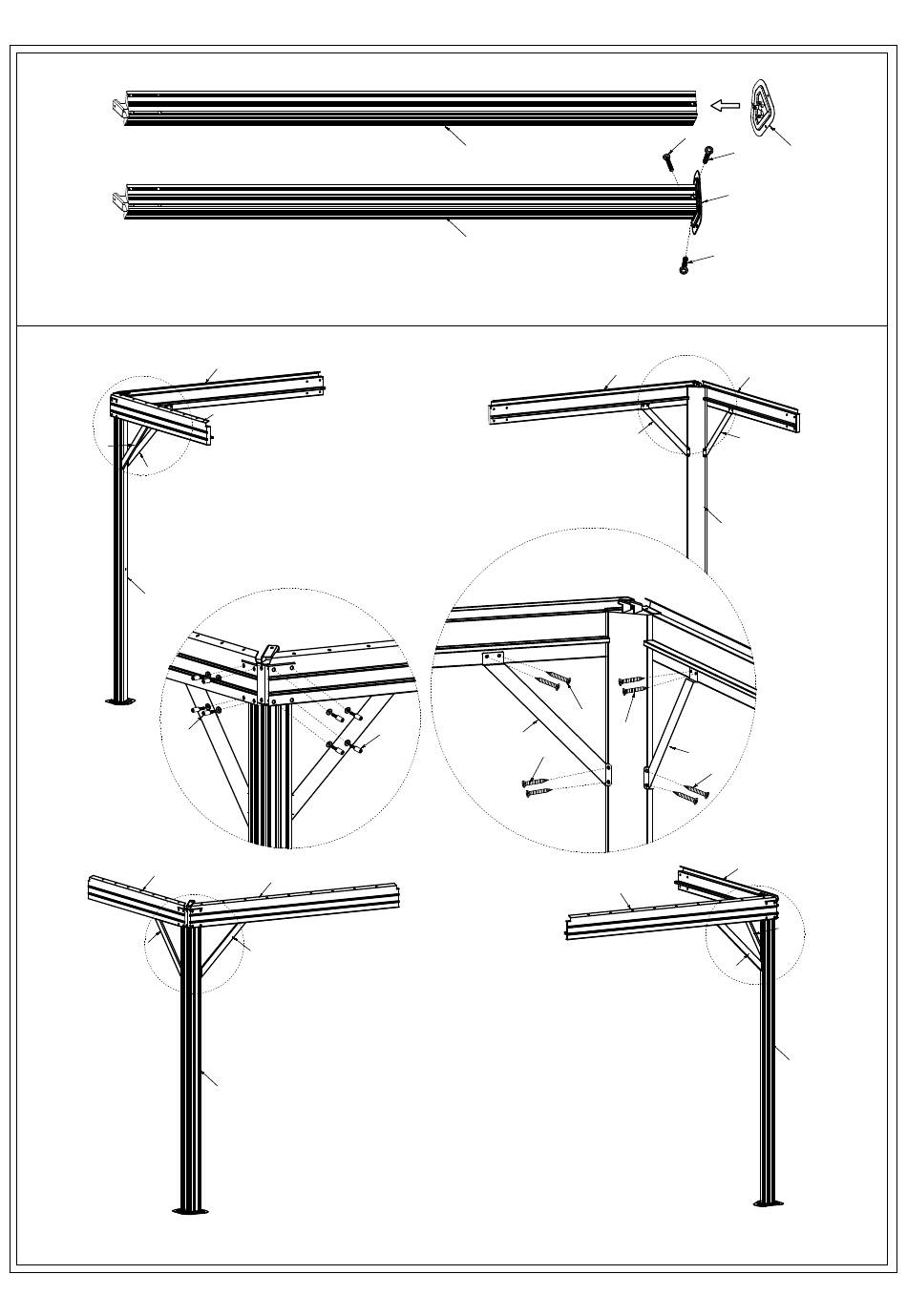

STEP 1: Attach Foot Base ( Part L) to the Pillars (Part A).
TIPS: Tighten screws completely only after all screws are in right
position./CONSEIL: Serrez les vis complètement seulement après que
toutes les vis sont dans la bonne position.
ÉTAPE 1: Fixez la base du pied (Pièce L) aux
piliers (Pièce A)
F
F1
A
X
B1
F1
B1
B
X
B
F
STEP2: Attach crossbeams (Part B) and (Part B1) to
A
pillars (Part A).
Attach support brackets (Parts F and F1) to crossbeam and
pillars.
ÉTAPE 2: Fixez la traverse (Pièce B) et (Pièce B1) aux piliers
(Pièce A).
Fixez les supports (Pièces F et F1) à la traverse et aux piliers.
A
B
F
Y
Y
F
Y
B1
V
L
V
L
V
B1
F1
A
F1
Y
B
F
F1
A
