Assembly manual / Manuel d'assemblage
Please carefully unpack each of the components and hardware. Check the
components against the parts list and make sure there are no missing parts.
For ease of assembly, it is recommended to have 2 or more people.
Assembly can take 4-6 Hours.
___________________________________________________________________________________________
Veuillez déballer soigneusement chacune des composantes et le matériel.
Vérifiez les composantes par rapport à la liste des pièces et assurez-vous qu'il
n'y a pas de pièces manquantes.
Pour faciliter l'assemblage, il est recommandé d'être 2 personnes ou plus.
Peut prendre entre 4-6 heures.

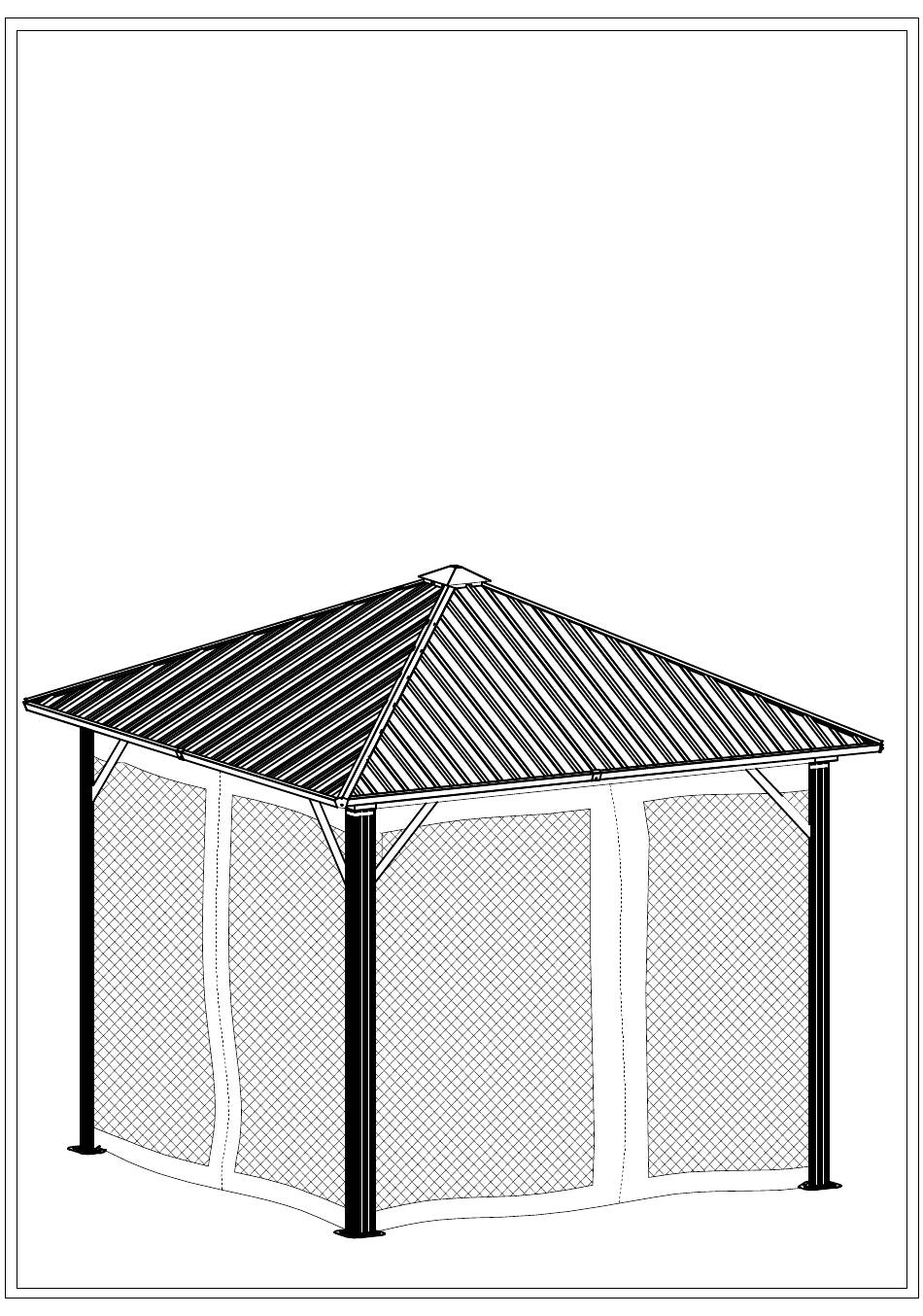

GAZEBO 10'X10' - KWAP102B76

Publicité

loading

Sommaire des Matières pour Club Piscine Gazebo

  • Page 1 Assembly manual / Manuel d'assemblage GAZEBO 10'X10' - KWAP102B76 Please carefully unpack each of the components and hardware. Check the components against the parts list and make sure there are no missing parts. For ease of assembly, it is recommended to have 2 or more people.
  • Page 2 PART DESCRIPTION ITEM/ARTICLE PIECE PILLAR / PILIER CROSSBEAM 1 /TRAVERSE 1 CROSSBEAM 2 /TRAVERSE 2 ROOF RIBS-SHORT SUPPORT DE TOIT COUR ROOF RIBS-LONG SUPPORT DE TOIT LONG CORNER SUPPORT 1 SUPPORT DE COIN 1 CORNER SUPPORT 2 SUPPORT DE COIN 2 FINISHING BORDER 1 BORDURE DE FINITION 1 FINISHING BORDER 2...
  • Page 3 PART ITEM/ARTICLE DESCRIPTION PIECE CONNECTOR 2 CONNECTEUR 2 PLASTIC GAP FILLER REMPLISSEUR D'ESPACE EN PLASTIQUE GAP COVER COUVRE FENTE ROOF PANEL 1 PANNEAU DE TOIT 1 ROOF PANEL 2 PANNEAU DE TOIT 2 ROOF PANEL 3 PANNEAU DE TOIT 3 ROOF PANEL 4 PANNEAU DE TOIT 4 CROSSBEAM CONNECTOR...
  • Page 4 PART ITEM/ARTICLE DESCRIPTION PIECE BOLT & METAL WASHER M6*10 BOULON & RONDELLE METALLIQUE BOLT 5(M6*42) NUT 3 M6*42 BOULON 5(M6*42) NOIX 3 SELF TAPPING SCREW 5*12 VIS AUTO-TARAUDEUSE ALLEN WRENCH CLE ALLEN MOSQUITO NETTING MOUSTIQUAIRE...
  • Page 5 STEP 1: Attach Foot Base ( Part L) to the Pillars (Part A). TIPS: Tighten screws completely only after all screws are in right position./CONSEIL: Serrez les vis complètement seulement après que toutes les vis sont dans la bonne position. ÉTAPE 1: Fixez la base du pied (Pièce L) aux piliers (Pièce A) STEP2: Attach crossbeams (Part B) and (Part B1) to...
  • Page 6 STEP 3: Slide 4 Netting Hooks (Part Q) into each track on Crossbeams (Part B and B1).With the sections laying on their side, connect the Crossbeams B and B1 using Crossbeam Connector (Part P). Note: After sliding theCrossbeam Connector (Part P) into a crossbeam you should start one bolt to hold the Crossbeam Connector in place.
  • Page 7 STEP 4: Finish bolting all crossbeams together. ÉTAPE 4: Terminer le verrouillage de toutes les traverses. STEP 5: Attach the corner gap cover (Part J1) and the gap cover (Part J2). ÉTAPE...
  • Page 8 STEP 6: Assemble the roof frame by attaching the roof ribs (Part E) to the roof top brace(Part K1). ÉTAPE 6: Assemblez la structure du toit en attachant le STEP 7: Lift the partially assembled roof on to the assembled frame and attach. ÉTAPE...
  • Page 9 STEP 8: Attach the roof ribs short (Part D) to the roof top brace (Part K1). Attached the roof ribs short (Part D) to the assembled frame. ÉTAPE 8: Fixez le support de toit court Fixez le support de STEP 9: Attach the roof connector (Part K) to the roof top brace (Part K1).
  • Page 10 ÉTAPE 10: Fixez les en utilisant les M3) et les connecteurs 2 STEP 10: Attach the Roof Supports(Part H) to the roof frame using Connectors 1 (Part M3) and Connectors 2 (Part M4) Step 11: Attach the finishing band (Part D1) and finishing band (Part R) as shown in the diagram.
  • Page 11 STEP 12: Install the Roof Plates on the Gazebo. Work your way from left to right. Start by sliding Roof Plate 1 (Part O1) into position. Then overlap Roof Plate 2 (Part O2) as shown in the diagram and Slide Roof Plate 2 (Part O2) into Position.
  • Page 12 remplisseurs d'espace en plastique 1 et 3 du diagramme. en place en utilisant les boulons et les remplisseurs d'espace en plastique 2 et 4 du diagramme.
  • Page 13 STEP 13: Attach Roof Borders 1 (part G1) and Roof Borders 2 (PartG2) to the Edge of the roof. Attach the Center Rib Braces (Part M1) as shown in the diagram. Attach the Center Rib Braces (Part M2) as shown in the diagram. ÉTAPE Fixez les joints de dans le diagramme.
  • Page 14 Vérifier les vis avant et pendant l'utilisation du gazébo et les resserrer régulièrement. Ne placez pas de barbecue ou de dispositif de cuisson à flamme nue à l'intérieur du (gazebo, solarium, abri-mural) ni à moins de 5 pieds de celui-ci.
  • Page 15 The gazebo must always remain anchored properly to the floor or ground using the appropriate screws to enjoy its safe usage. The gazebo can be left out during all seasons however snow accumulation must be removed at all times. Check periodically that all screws are fastened tightly before and during usage.
