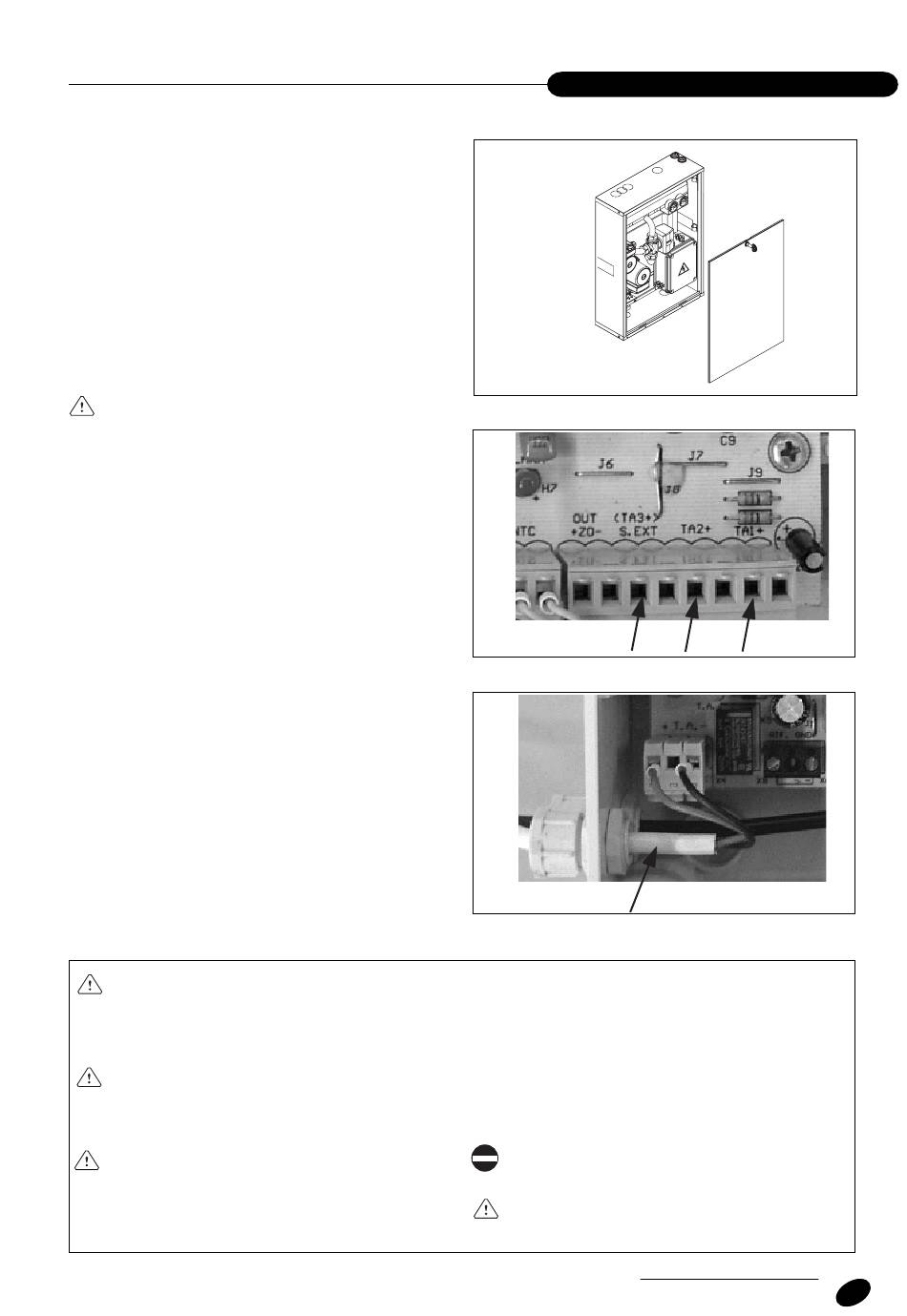

Electrical Connections - Riello BAG2 MIX CLIMA Mode D'emploi

To form the electrical connections for the
access must be obtained to the
the boiler card.
BAG
To gain access to the
- Remove the front cover panel (fig. 1).
CONNECTING THE BAG
ELECTRICITY MAINS
BAG 2 MIX CLIMA unit to the electricity mains (phase /
neutral / earth) using the cable supplied.
Drawing the power supply for the BAG
MA from theboiler is absolutely forbidden as the
boiler's fuse is not sizedto take the electrical loads
associated with the BAG
CONNECTING THE AMBIENT THERMOSTATS (TA)
The TAs for the low (TA2+) and high (TA1+) temperatu-
re system must be directly connected to the BAG
MIX CLIMA (fig. 2) using a cable with minimum section
1 mm 2 .
BAG 2 MIX CLIMA CONNECTION TO THE BOILER
Connect the TA from the BAG2 MIX BASIC Board (fig.
3) to the heater TA cable grip using the cable provided
(refer to the wiring diagram in the installer instruction
booklet for the specific heater).
CONNECTING THE EXTERNAL SENSOR
Connect the external sensor as indicated in fig. 2.
When using a phase-phase power supply, use a
tester to determine which of the two wires has the
greater potential compared to the earth and con-
nect it to the L terminal. Connect the remaining wire
to the N terminal.
For floating power supplies, that is, those that have
no earth connection, an insulation transformer must
be used, with a secondary unit connected to the
earth.
The following are obligatory:
- A multi-pole trip-switch must be used to discon-
nect the line, that conforms to the CEI-EN standards
(contact opening at least 3 mm).
2
BAG MIX CLIMA
2
BAG MIX CLIMA
2 MIX CLIMA
2
MIX CLIMA TO THE
2
MIX CLI-
2 MIX CLIMA.
ELECTRIC CONNECTIONS ELECTRIC CONNECTIONS ELECTRIC CONNECTIONS
ELECTRIC CONNECTIONS ELECTRIC CONNECTIONS
and
Fig. 1
2
Fig. 2
Fig. 3
- Use cables with a 1,5 mm
L (Phase) – N (Neutral) connection.
- The amperage on the switch must be adequate for
the boiler's electrical power rating – see the techni-
cal data to check the electrical power rating for the
model installed.
- Connect the equipment to an efficient earthing
system.
- The power socket must be inaccessible after in-
stallation.
The use of gas or water pipes to earth this equip-
ment is forbidden.
The manufacturer does not accept any responsibil-
ity for any damage caused due to the lack of a proper
earth or failure to comply with the wiring diagram.
2
section and respect the
21
INSTALLATOR
