Stroller Operation; Unfolding And Folding - B.O.B IRONMAN Mode D'emploi

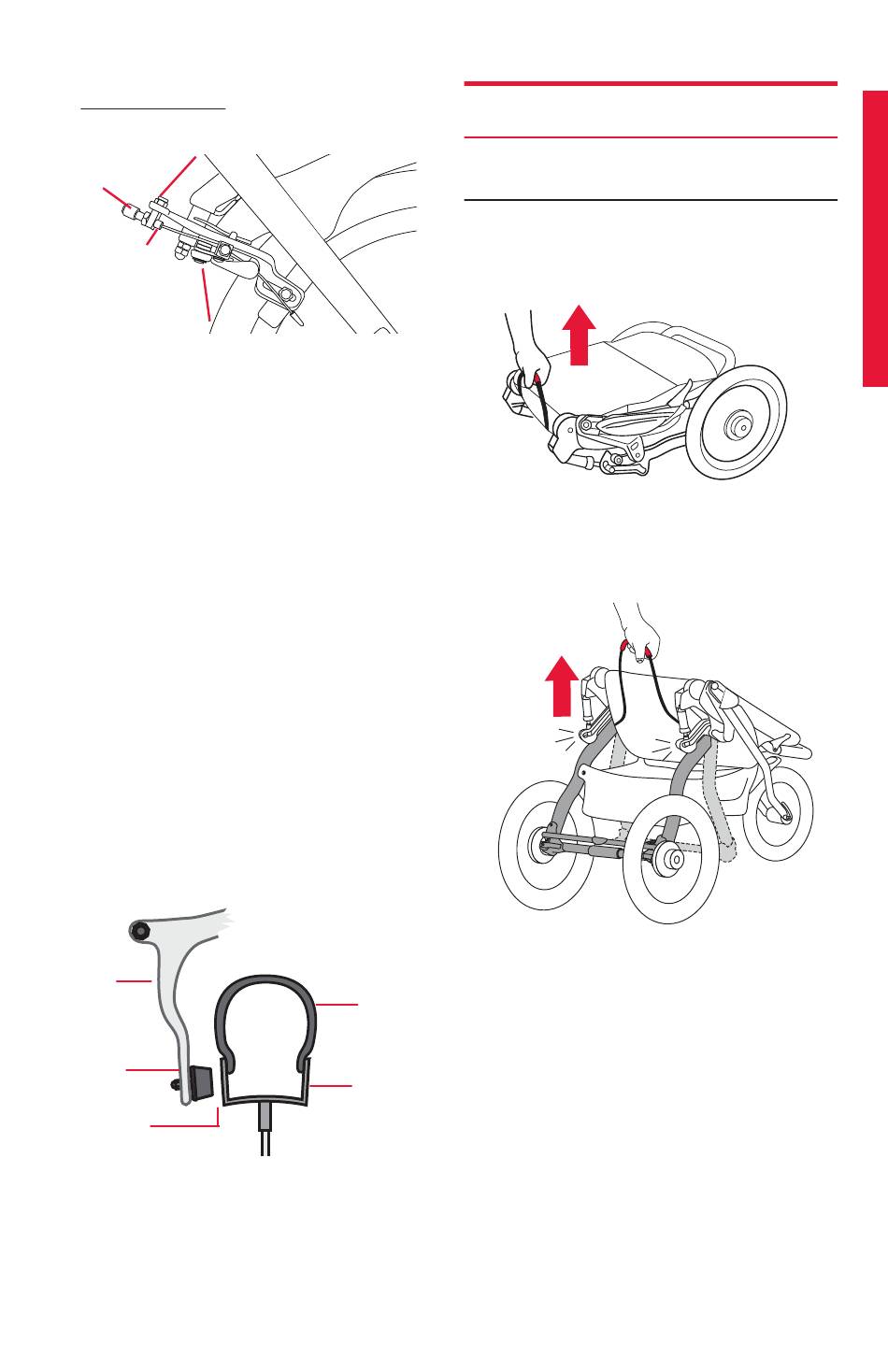

Caliper Brake
Brake Caliper
Mounting Nut
Barrel
Adjuster
Lock Ring
Brake Caliper
To tighten the cable, loosen the
lock ring and turn the barrel
adjuster in the counter clockwise
direction. Secure the barrel
adjuster in the new position by
tightening the lock ring against
the caliper or brake lever body.
To loosen the cable, turn the
barrel adjuster in a clockwise
direction and secure by tightening
the lock ring. There should be a
3/16"(5mm) clearance between
the rim and brake pads.
3� Reposition Brake Caliper
If gap is not equal on each brake
pad, the brake caliper can easily
be repositioned on the frame by
loosening the caliper mounting
nut with a 10mm wrench, adjust
caliper position and re-tighten the
same nut.
Brake
Brake
Pad
3/16"
(5mm) Gap
IRONMAN/SPORT UTILITY STROLLER User Guide

Stroller Operation

Unfolding and Folding

Unfolding the Stroller
1� Lift Red Frame Release Handle
Tire
Rim
Keep tires on ground as stroller
swing arm begins to swing open.
NOTE: Stroller swing arm will
swing open and snap into an
open and locked position.
9
