PREMASGARD

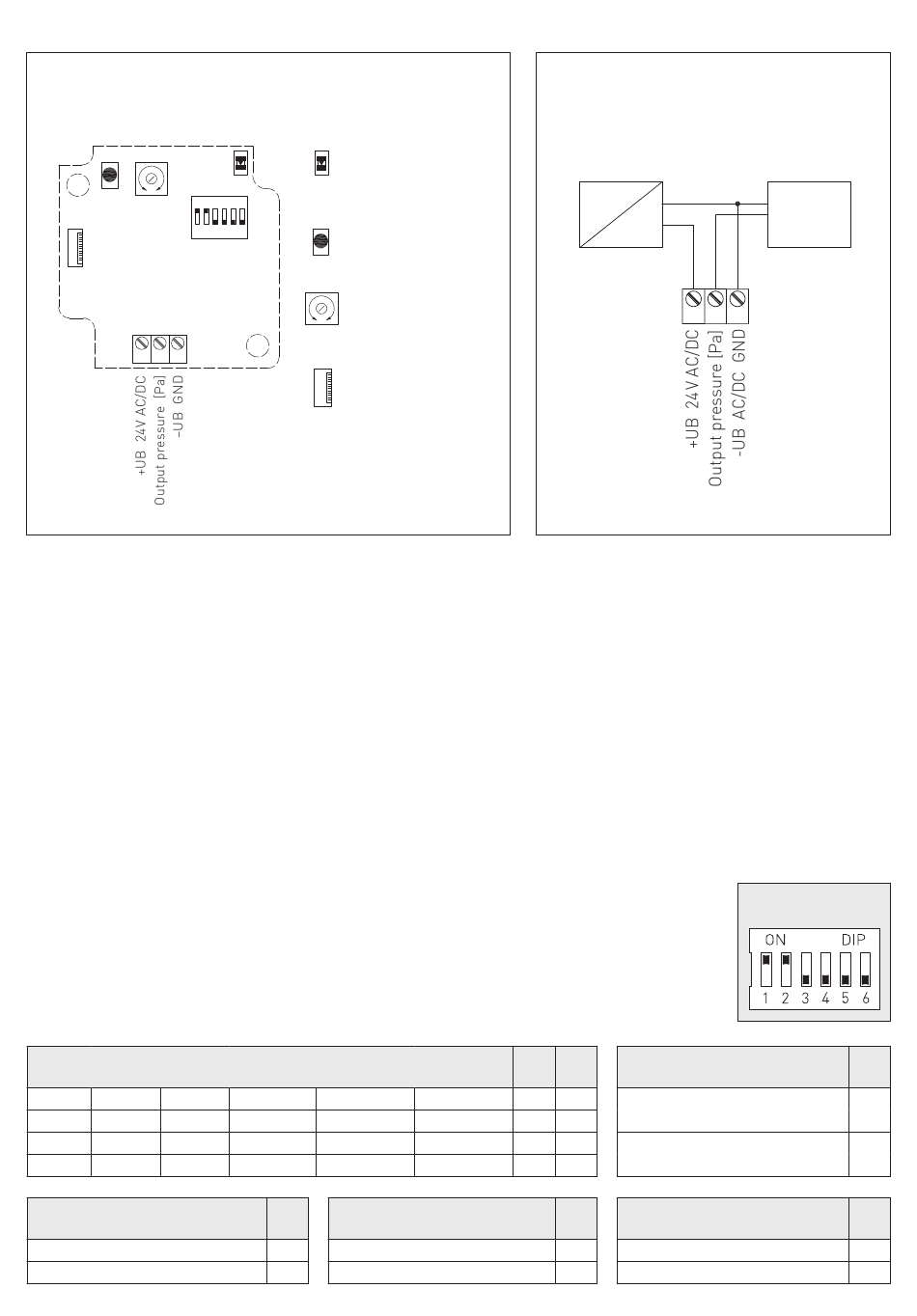

Schematic diagram
min. max.
auto
offset
ON
zero
1 2 3 4 5 6
switches
Plug for
display
1 2 3
DIP switches for
pressure range setting, output attenuation and zero compensation:
Pressure range
(selectable) – max. measuring range (default) is depending to the type of device
0...50 Pa
0...100 Pa 0...1000 Pa
–
0...300 Pa 0...2000 Pa
–
0...500 Pa 0...3000 Pa
0...100 Pa 0...1000 Pa 0...5000 Pa –100...+100 Pa –1000...+1000 Pa –5000...+5000 Pa
Measuring range mode
(Mode selectable)
Unidirectional ( 0 ...+MR ) (default)
Bidirectional (–MR ...+MR )
211x ⁄ 212x ⁄ 212x - SD
PREMASGARD
PREMASGARD
PREMASGARD
LED
Status LED (DIP 6)
I Output (ON) = orange
U Output (OFF) = green
Pushbutton
Zero point setting
DIP
(auto zero)
Offset correction
see graph
ca. ± 10% of
offset
final value
Plug for display
contact is
on the right side
–50...+50 Pa
–100...+100 Pa –1000...+1000 Pa
–
–300...+300 Pa –2000...+2000 Pa
–
–500...+500 Pa –3000...+3000 Pa
DIP
Measurement signal filtering
3
(Time interval selectable)
OFF
10 s (default)
O N
1 s
®
211x
Connecting diagram
®
212x
®
212x - SD
230V AC
24V AC/DC
DIP
DIP
1
2
OFF
OFF
O N
OFF
O N
OFF
O N
O N
DIP
5
OFF
O N
13
PREMASGARD
PREMASGARD
PREMASGARD
-
-
PLC
+
+
1 2 3
Output characteristic line
(Mode selectable)
Linear (default)
(for pressure detection)
Square root extracting
(to determine the volume flow)
Output
(selectable)
Voltage 0 -10 V (default)
Current 4... 20 mA
Rev. 2019 - V11
®
211x
®
212x
®
212x - SD
PC
DIP switch
(default)
DIP
4
OFF
O N
DIP
6
OFF
O N
