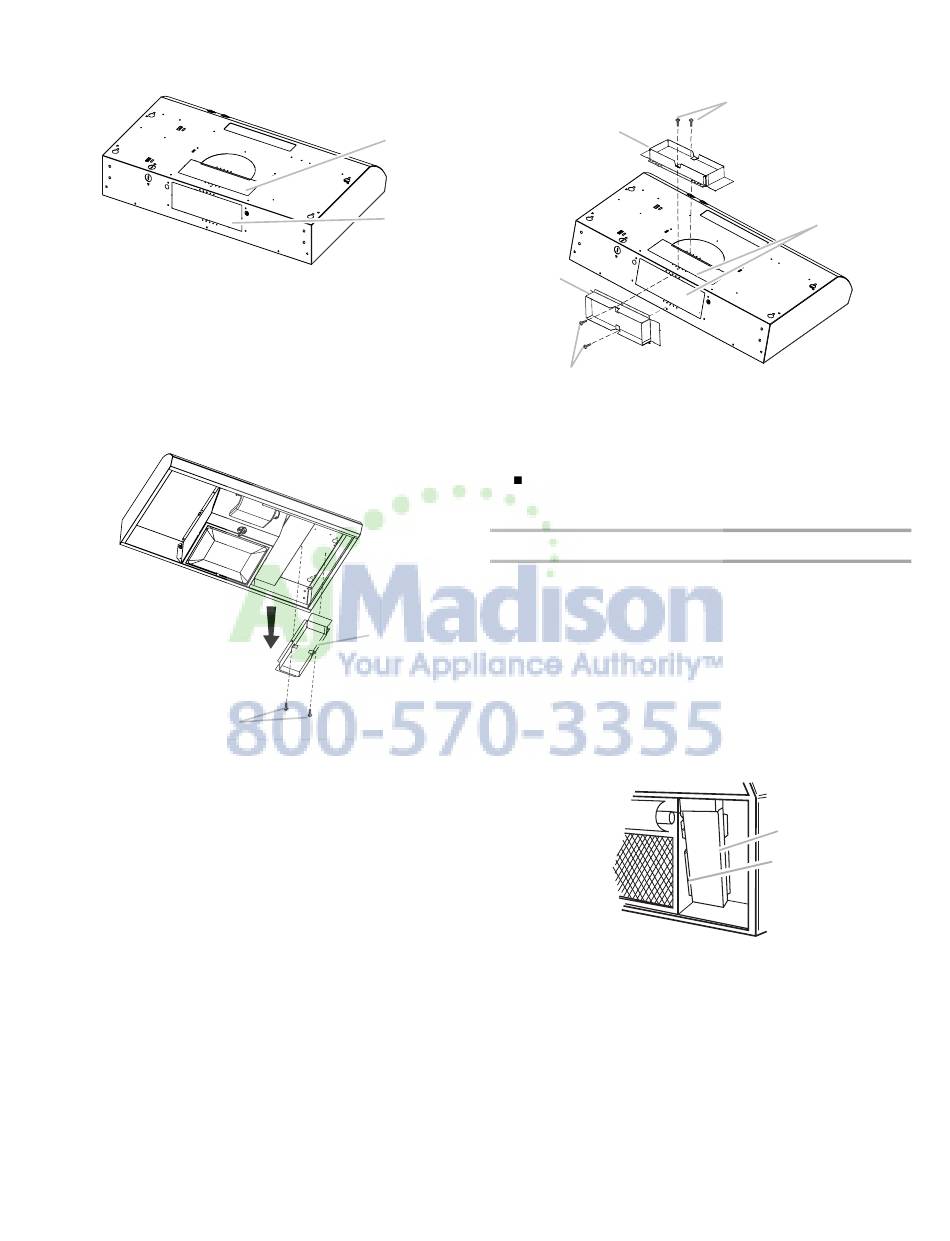

4. For roof installations, remove the top rectangular vent
knockout. For wall installations, remove the rear rectangular
vent knockout.
A. Top rectangular vent knockout
B. Rear rectangular vent knockout
5. Remove metal grease filters. See the "Range Hood Care"
section.
NOTE: Your model will have a 3¼" x 10" (8.3 x 25.4 cm)
rectangular vent connector on the inside of the range hood.
6. Remove the 3¼" x 10" (8.3 x 25.4 cm) rectangular vent
connector attached with screws on the inside your range
hood.
¹⁄₄
A. 3 " X 10" (8.3 X 24.4 cm) rectangular vent connector
B. Screws
7. Install the 3¼" x 10" (8.3 x 25.4 cm) vent connector. Attach to
range hood with the 6.5 x 9.5 mm screws provided and
remove tape from damper flap.
A
B
A
B
NOTE: The 3¹⁄₄" x 10" (8.3 x 25.4 cm) rectangular vent
connector can be installed up to 1" (2.5 cm) on either side
of the hood center to accommodate off center ductwork.
A
D
B
A. Vertical connector
B. 6.5 x 9.5 mm screws
C. Vent knockouts
D. Horizontal connector
If a vent damper is installed with a wall cap with damper,
check that they do not interfere with each other. Remove
the vent connector damper flap if they interfere.
Power Supply Cable Installation
1. For direct wire installations, run the home power supply cable
according to the National Electric Code or CSA standards
and local codes and ordinances. There must be enough
wiring from the fused disconnect (or circuit breaker) box to
make the connection in the hood electrical terminal box.
For optional power supply cord kit installations, follow the
instructions in the "Make Electrical Connections" section.
NOTE: Do not reconnect power until the installation is
complete.
2. Remove the screw from the terminal box cover. Remove
terminal box cover and set aside.
A. Terminal box cover
B. Screw
3. Remove the power supply knockout from the top or rear of
the vent hood (depending on the incoming location of your
B
C
A
B
