4.4 Mechanics

Dimension (W x H x D)
Weight
Mounting
Degree of protection

5. Maintenance

No maintenance is required, as long as the unit is used as
intended within the specified conditions.

6. Installation

6.1 Mounting / Removal
Before mounting or removing the unit:
Prevent damage to internal electronics from electrostatic
discharges (ESD) by discharging your body to a grounding
point (e.g. use of wrist strap).
Prevent access to hazardous voltages by disconnecting
the unit from AC/DC mains supply and all other electrical
connections.
Mounting
This unit should be mounted on 35 mm DIN-rail which is horizontally mounted on a wall
or cabinet backplate.
This unit use convention cooling. To avoid obstructions to the airflow around the unit,
use the following spacing rules. Recommended spacing 25 mm (1.0 inch) above/below and
10 mm (0.4 inches) left/right the unit.

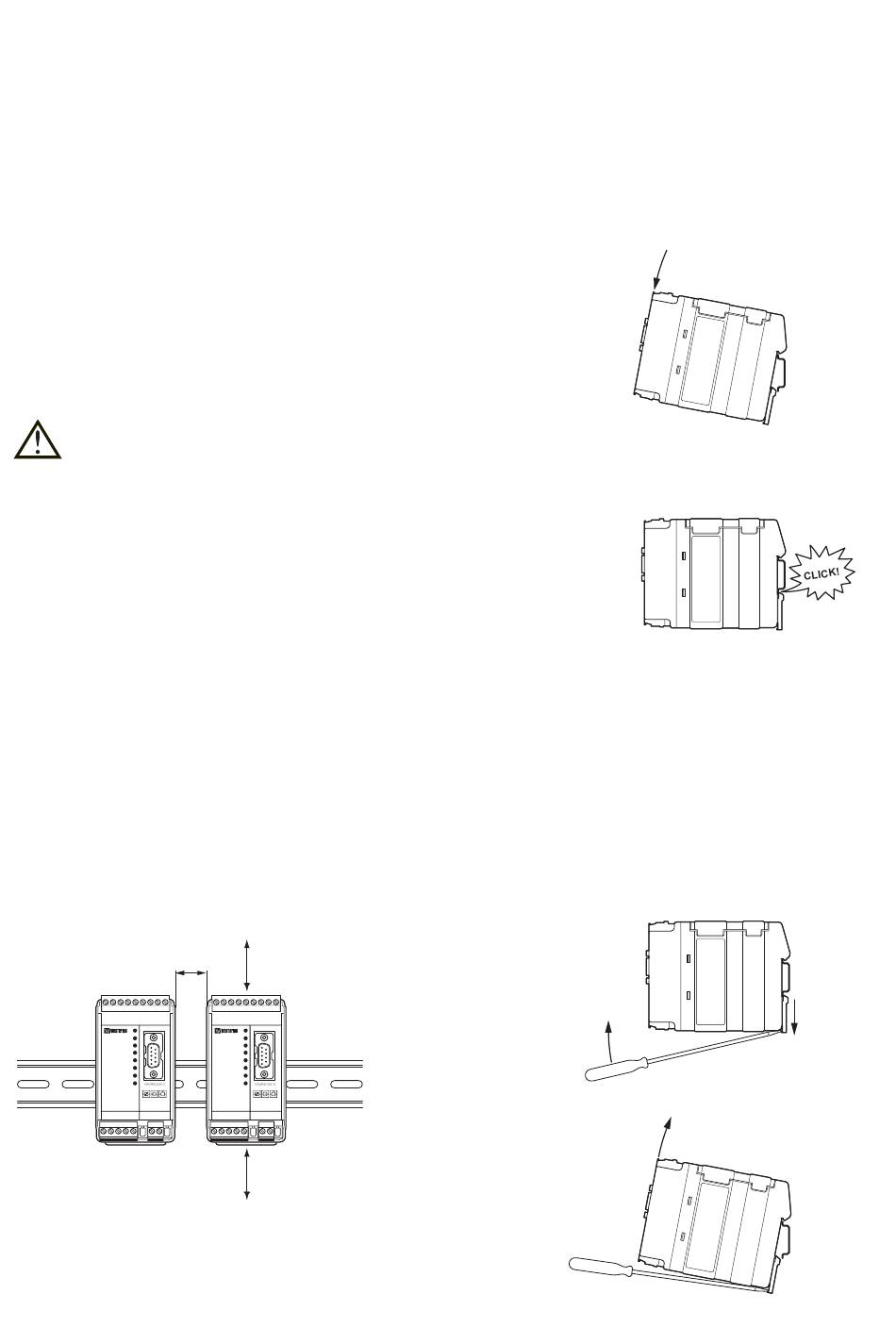

Snap on mounting, see figure
10 mm
(0.4 inches)
Removal
Press down the black support at the back of the unit
using a screwdriver, see figure.
18
55 x 128 x 100 mm
0.3 kg
Snap on mounting to 35 mm DIN-rail
IP 20 (IEC 529)
Min
25 mm
25 mm
6153-2004
