3

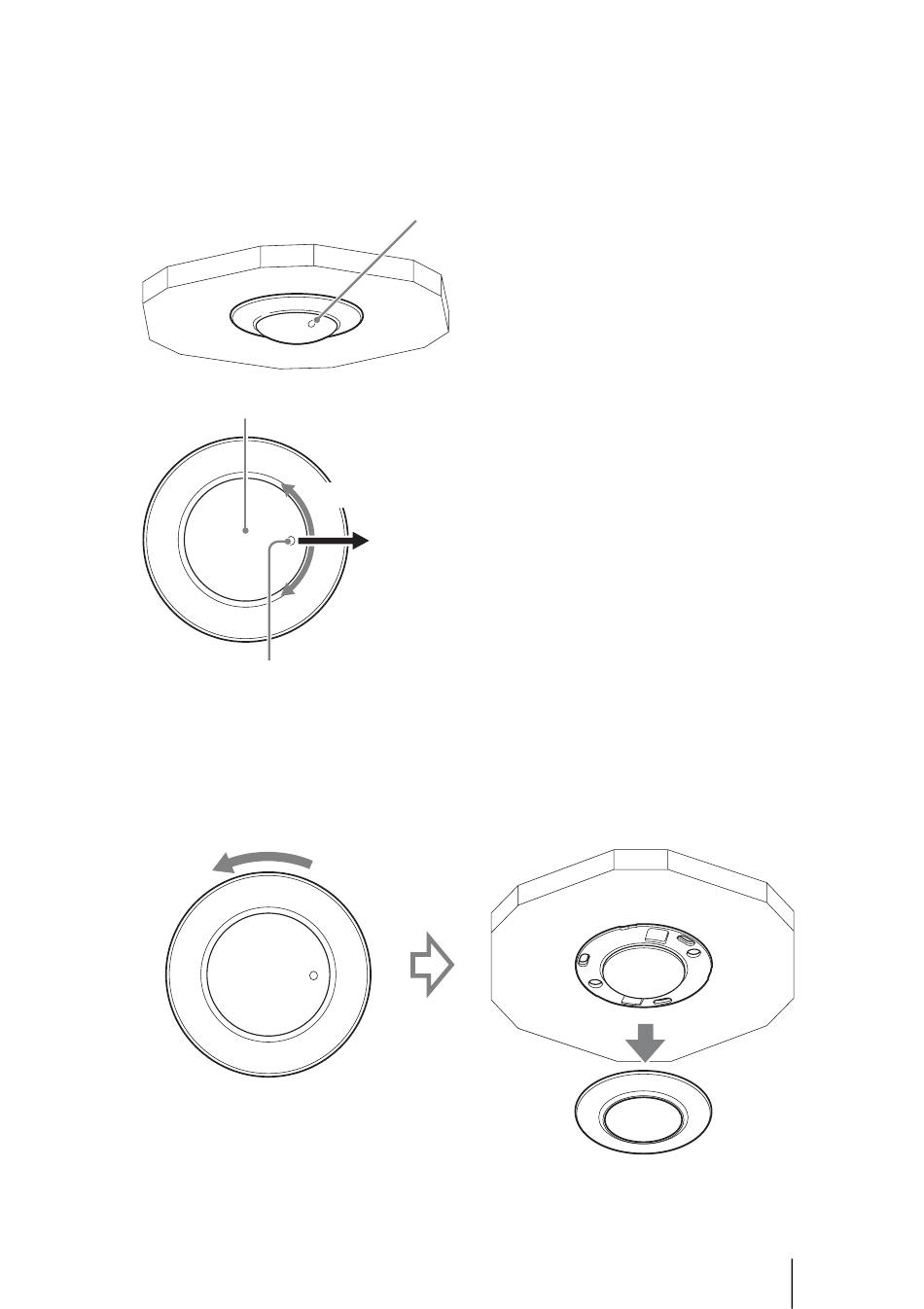

Rotate the grill to set the pickup direction.
The grill can be rotated 180 degrees in either direction.
Point the projection on the microphone unit in the desired pickup direction.
Grill
Point the projection in the desired pickup direction.
4
Affix the microphone unit with screws as needed.
A Remove the panel from the microphone unit.
Push the microphone unit and, and turn the panel in the direction indicated by the
arrows to remove.
Microphone pickup direction indicator (projection)
The grill can be rotated 180 degrees in either direction.
Pickup direction
Installation 9
