Configuration; Programming; Reset - LEGRAND Contrôle Stéréo Notice D'installation

3 - Configuration

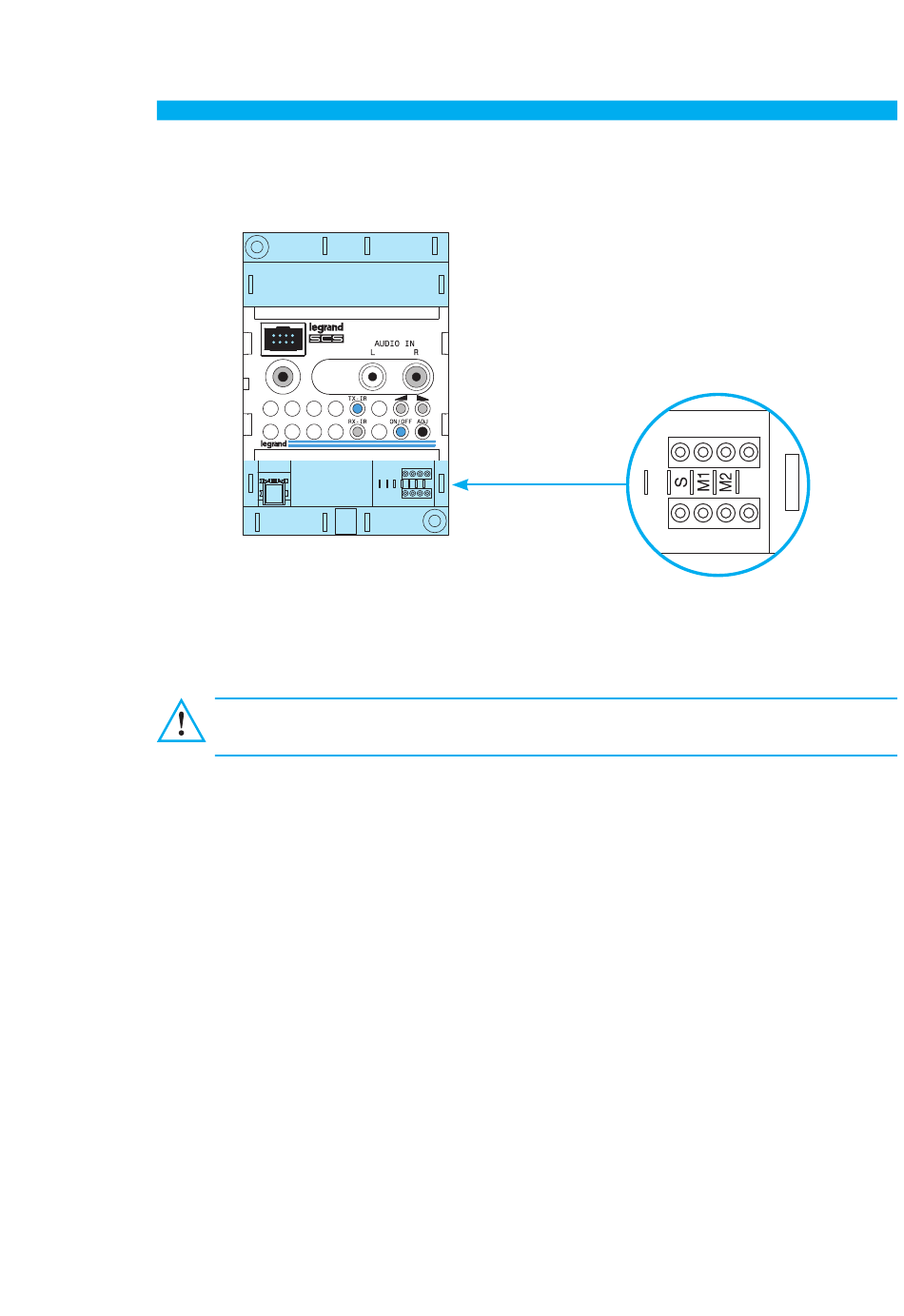

Before programming the Stereo Control (it must not be connected to the BUS):
S = 1 – 4
M1 =1 – 4
Connect the BUS cable and then the RCA-RCA cable and the IR jack.

3.1 - Programming

To program item 035 86 use the StereoControlConfig software supplied in the CD which comes
with the device, referring to its manual.

3.2 - Reset

Restore the factory settings as follows:
- Switch the Stereo Control off
- Configure: S = – ; M1 = – ; M2 = 9
- Switch the device back on and wait for LED 3 to light up
- Switch off and restore the configuration
16
device address in the system
(indicate the number of Hi-Fi system modules, e.g. Radio, CD..., which the
Stereo Control must manage)
If the multi-channel matrix (035 84) is used, only one Hi-Fi system module can be managed,
so configure M1=1.
