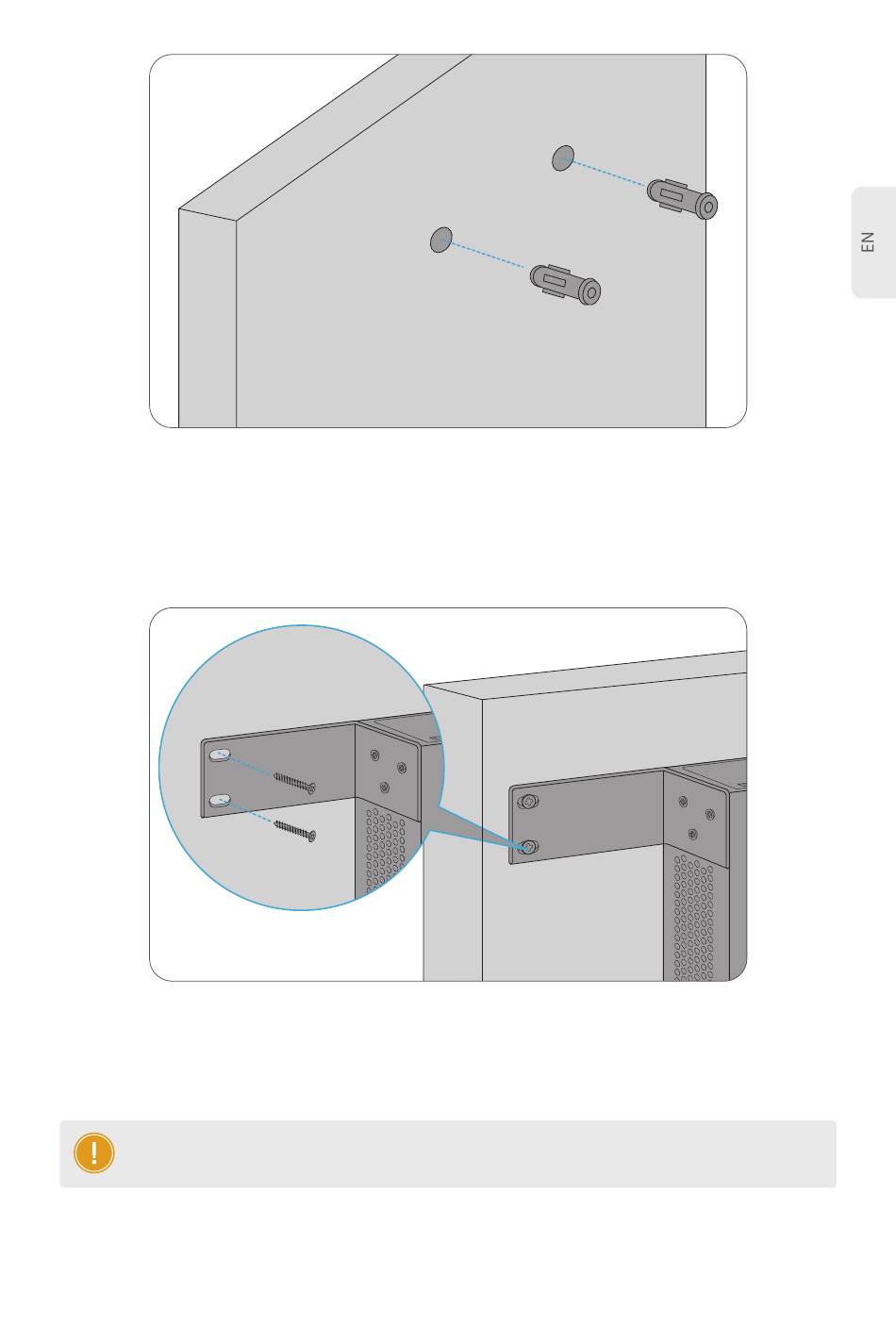

2. Horizontally place the switch onto the wall with its RJ45 ports facing upward. Then mark the screw
holes with the marker.
3. Drill holes in the marked positions, and then knock the expansion bolts (self-prepared,
M5*40 mm) into the holes.
4. Insert the screws (self-prepared, PA5*25 mm, head diameter: 10 mm) through the holes of the two
L-shaped brackets, and secure the screws into the expansion bolts with a screwdriver. Ensure that the
switch is installed firmly with its RJ45 ports facing upward.
NOTE: This switch can only be installed on a concrete or non-flammable wall.
