C A B L I N G
LF-cords
Using balanced cables with phone or XLR-type plugs for connecting signal sources to the SUB800A is
strongly recommended to prevent problems caused by noise interference. Make sure to mind the
pin-assignment as shown below. Cables from the DYNACORD accessory assortment provide correct,
secure and reliable connection.
XLR MALE

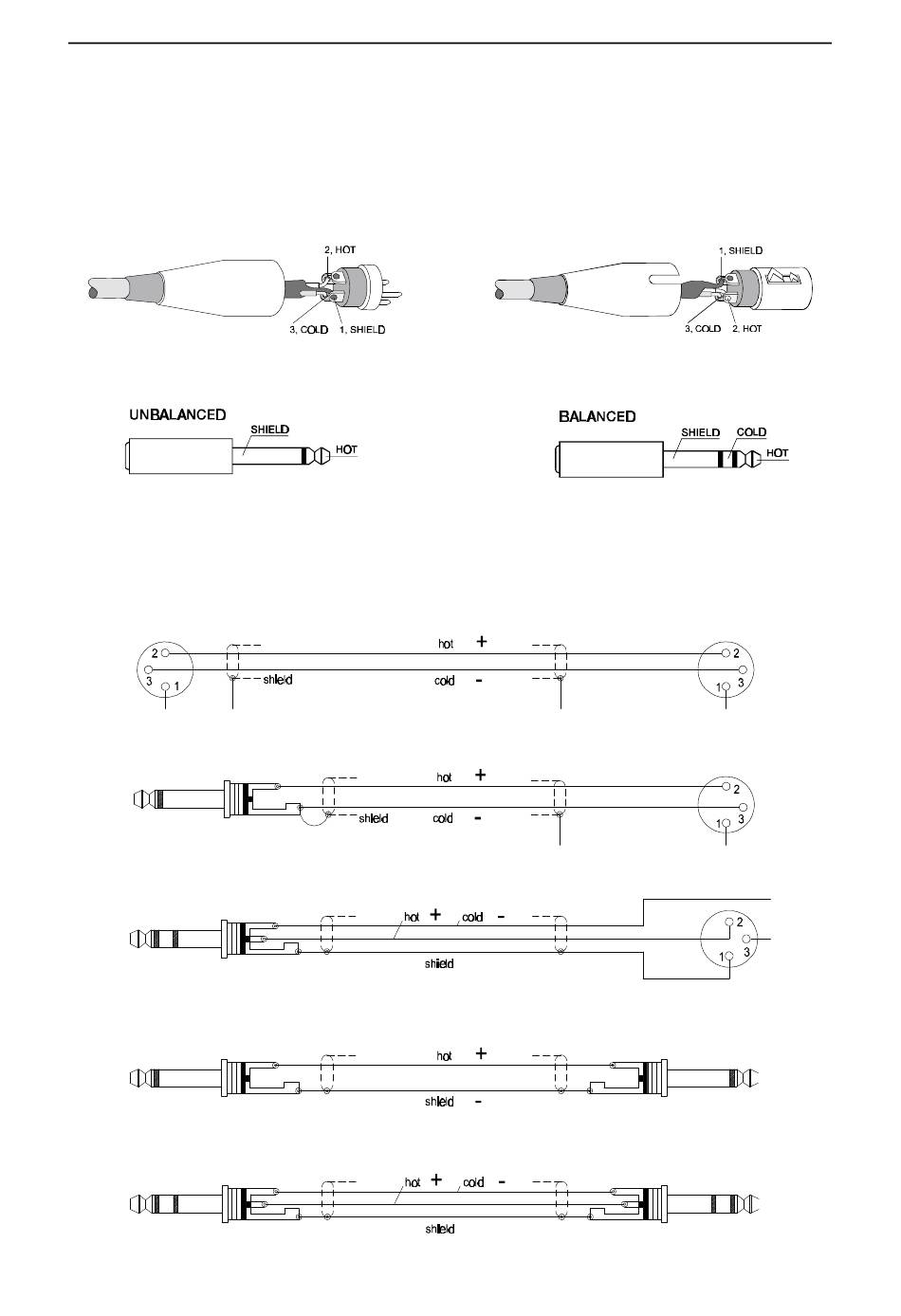

The following illustration shows the most important cable connections and their pin-assignment.
A balanced wiring is to be preferred in each case.
Standard XLR-Cable
Cable connection phone to XLR-type, unbalanced
Cable connection phone to XLR-type, balanced
Standard phone-type, unbalanced
Standard phone-type, balanced
XLR FEMALE
14
