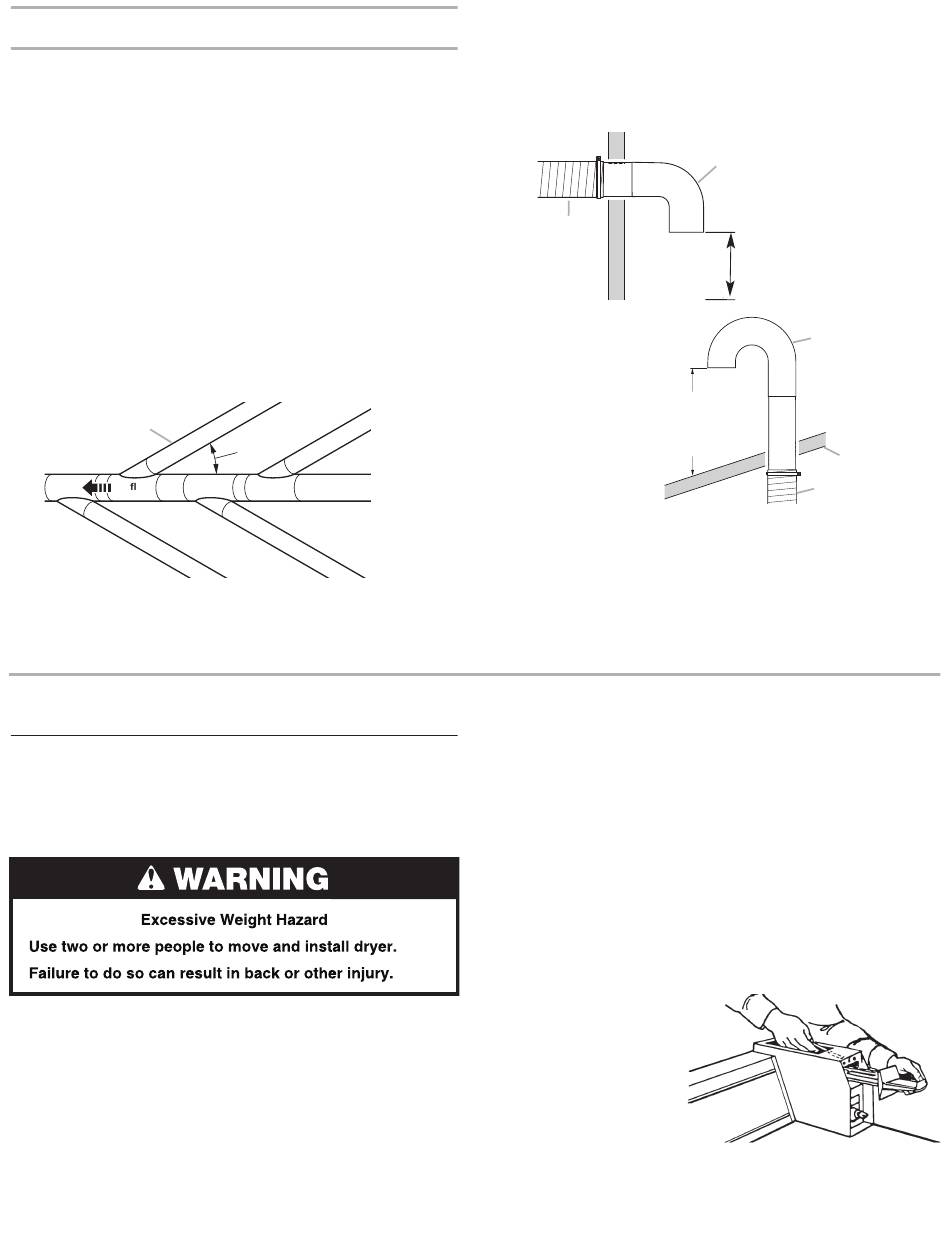

Multiple Dryer Venting
I A main vent can be used for venting a group of dryers. The
main vent should be sized to remove 200 CFM of air per
dryer. Large-capacity lint screens of proper design may be
used in the main vent if checked and cleaned frequently. The
room where the dryers are located should have make-up air
equal to or greater than the CFM of all the dryers in the room.
I A back-draft damper kit is needed and is available from a
commercial laundry distributor; it should be installed in the
vent of each dryer to keep exhausted air from returning into
the dryers and to keep the exhaust in balance within the main
vent. Unobstructed return air openings are required.
Each vent should enter the main vent at an angle pointing in the
direction of the airflow. Vents entering from the opposite side
should be staggered to reduce the exhausted air from interfering
with the other vents.
The maximum angle of each vent entering the main vent should
be no more than 30°.
A
air ow
A. Individual dryer vent
B. Main vent
INSTALLATION INSTRUCTIONS – COIN SLIDE AND COIN BOX
Install Coin Slide and Coin Box
The coin slide mechanism, control panel lock and key, and coin
box lock and key are not included and are available from usual
industry sources. A special coin slide extension must be used on
this model and can be purchased from the coin slide distributor.
NOTE: Slide dryer onto cardboard or hardboard before moving to
avoid damaging floor covering.
1. Using two or more people, move dryer to desired installation
location.
2. Take tape off front corners of dryer. Open dryer and remove
the literature and parts packages. Wipe the interior of the
drum thoroughly with a damp cloth.
30˚ max.
B
Keep air openings free of dry cleaning fluid fumes. Fumes create
acids which, when drawn through the dryer heating units, can
damage dryers and items being dried.
A clean-out cover should be located on the main vent for periodic
cleaning of the vent system
If an exhaust hood cannot be used:
B
D
C
A. Exhaust hood or elbow
B. Wall
C. Main collector vent
D. Horizontal vent
E. 180° sweep elbow
2 ft. (610 mm)
F. Vertical vent
min. above
G. Roof
highest point
of building
The outside end of the main vent should have a sweep elbow
directed downward. If the main vent travels vertically through the
roof, rather than through the wall, install a 180° sweep elbow on
the end of the vent at least 2 ft. (610 mm) above the highest part
of the building. The opening in the wall or roof shall have a
diameter 1/2" (13 mm) larger than the vent diameter. The vent
should be centered in the opening.
Do not install screening or cap over the end of the vent.
3. Take two of the cardboard corners from the carton and place
them on the floor in back of the dryer. Firmly grasp the body
of the dryer and gently lay it on its back on the cardboard
corners.
4. With one of the legs in hand, check the ridges for a diamond
marking. That's how far the leg is supposed to go into the
hole.
5. Start to screw the leveling legs into the holes by hand.
(Use a small amount of liquid detergent to lubricate the
screw threads so it is easier to turn the legs.) Use a 1"
(25 mm) wrench or socket wrench to finish turning the legs
until you reach the diamond mark.
Now stand the dryer up.
6. Remove the service
door of the meter case
by lifting it up at the
back. Install the money-
accepting device. (Refer
to manufacturer's
instructions for proper
installation.)
7. Replace the meter case
service door. Put the coin vault with lock and key in the meter
case opening.
8. Remove cardboard or hardboard from under dryer. Adjust the
legs of the dryer up or down until the dryer is level.
A
Min. 12" (305 mm) clearance
above any accumulation
12" min.
(305 mm)
of snow, ice, or debris such
as leaves.
E
24" min.
(610 mm)
F
G
C
11
