Intended use

The hedge trimmer is intended solely for the cut-
ting of hedges and bushes with a maximum branch
thickness of 26 mm (1 inch).
Any other use is classed as unintended use.
The user is liable for any damages arising from
unintended use.
Incorrect/abnormal use
This hedge trimmer should not be used in public
facilities, parks, sports grounds, roads etc. nor in
agriculture or forestry.
Identification plate
Position
The identification plate is located on the casing of
the hedge trimmer.
Note
The label has the status of a certificate. It
must never be altered or obliterated.

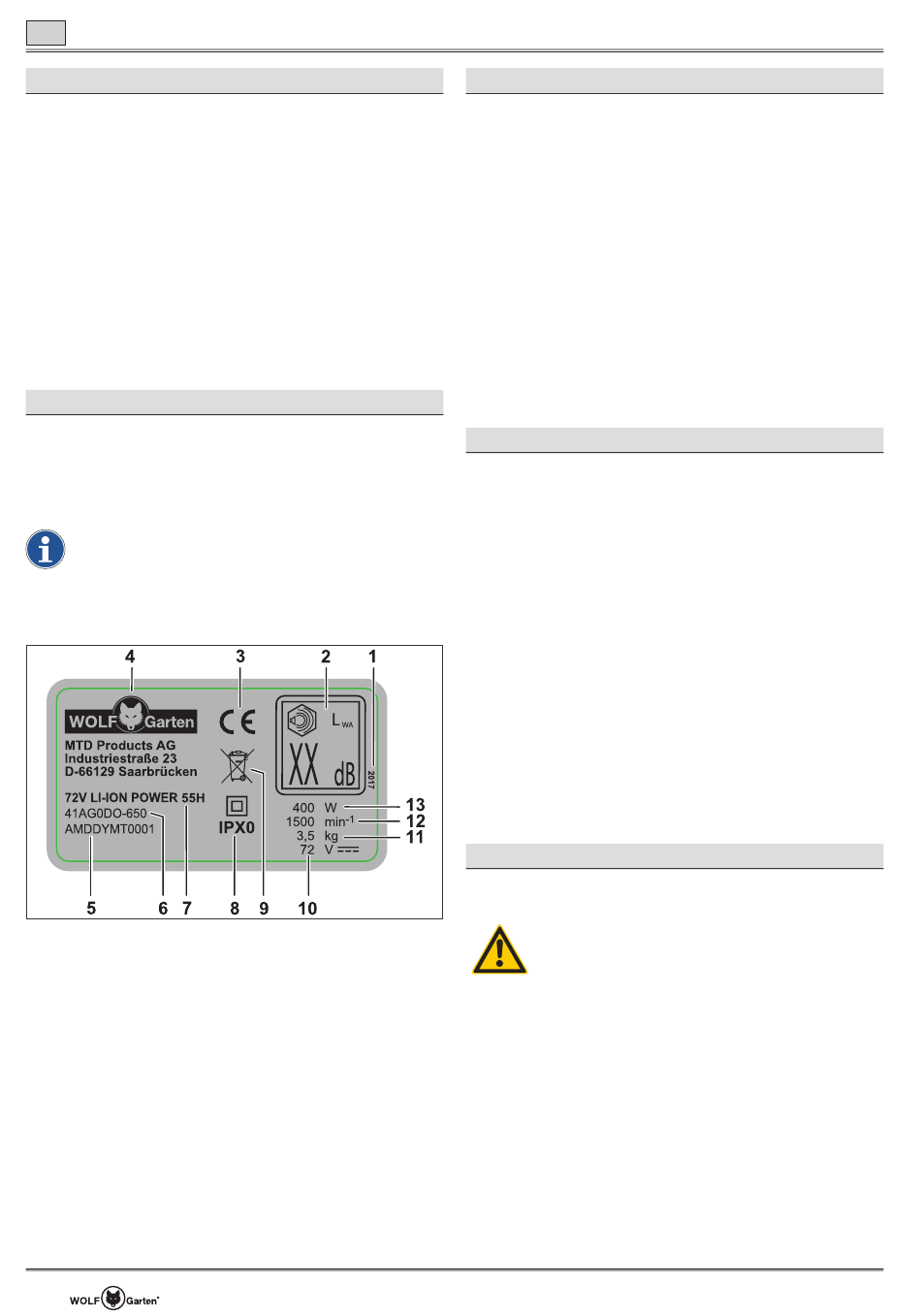

Layout
1 Year of manufacture
2 Guaranteed sound level
3 CE label
4 Manufacturer
5 Serial number
6 Model number
7 Model name
8 Protection class/IP code
9 Disposal note
10 Rated voltage, kind of current
11 Weight
12 Motor rotation speed in rpm
13 Capacity
16 | | 72V LI-ION POWER 55H

Operating elements

Operating elements (Fig . H )
1 Handle
2 On/off switch on handle
3 Handle part
4 On/off switch on bow-shaped handle
5 Bow-shaped handle
6 Shield
7 Cutting blade
8 Power pack release
9 Power pack compartment
10 Working angle adjustment
11 Motor-/gearbox unit
12 Protective cover
13 Impact protection

Protective equipment

Protective equipment (Fig . H )
Shield H 6
The transparent shield protects your hands ensuring
easy cutting with a good view of the cutting area.
Impact protection H 13
The projecting guide rail protects you against
unpleasant impacts, e.g. recoil moments, if you hit a
solid object (wall, floor, etc.).
Two-handed safety switch H 2 H 4
Switching on and operation of the hedge trimmer
requires both hands. One hand operates the on/off
switch on the handle, the other hand operates the
on/off switch on the bow-shaped handle. If one or
other of the switches is released, the cutting blade
automatically comes to a standstill.

Putting into use

Supplementary documentation
Make sure the operating instructions
of the POWER Base 72V / POW-
ER Base 72V Basic charger and of the
Li High Energy 72V power pack are
available and that you understand them
and adhere to them .
Intended use
