2- INSTALLATION

2.1 - Un-blocking the drum
After removing the external packing the drum must be un-blocked before
the machine is used.
A
B
C
D

2.2 -Plumbing connection

The user will require a tap with a 3/4" gas screwthread outlet and a drain
situated between 50 and 80 cms. above floor level. The watermain pressure
must be between 4 and 98 N/cm² inclusively.
Proceed as follows:
-Let the water run for a while before connecting the hose.
-Connect the water inlet hose applying the rubber joint provided in the f ittings
equipment bag.
-Position the drainage hose inside a hose of a larger diameter, or rest it well
fastened against any kind of drain at the height indicated.
-Neither of the hoses should be twisted or kinked.
1 9
H
H
H

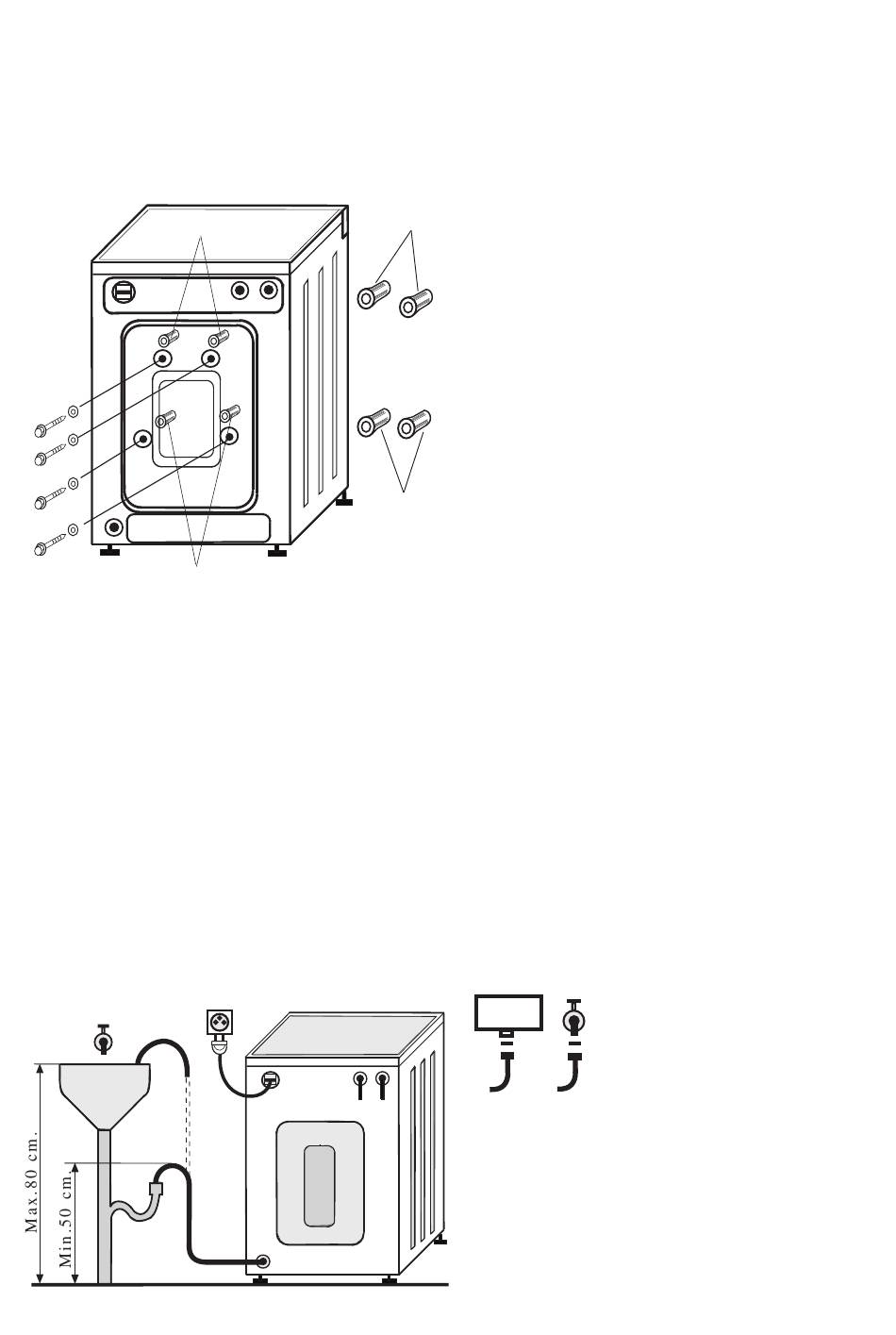

This is done in the following manner:
H
1.) Unscrew and remove the four screws
A-B-C-D.
2.) Push with a screwdriver at an angle
in the screw holes until the four spacers
(H) fall.
These must be recovered and kept.
3.) It is very important to recover these
four spacers (H) because they could
cause damage if they remain inside the
H
machine and also because they will be
required to move the machine in the case
of moving house.
T H E R M O
H
C
C
C- Cold water connection.
H- Hot water connection.
The "H" connection can only be
applied in those machines f itted
for this (Bithermical).
