11. Dosing function
The standard MIM provides a simple dosing function. This can be permanently
activated or deactivated in the settings menu under the menu item "dosing". If the
dosing function is activated, fixed functions are assigned to the 2 outputs which
cannot be changed as long as the dosing function is activated:
OUT2 (Pin 2):
OUT1 (Pin 4):
If the dosing function is deactivated, both outputs are switched to OFF
(deactivated)
again.

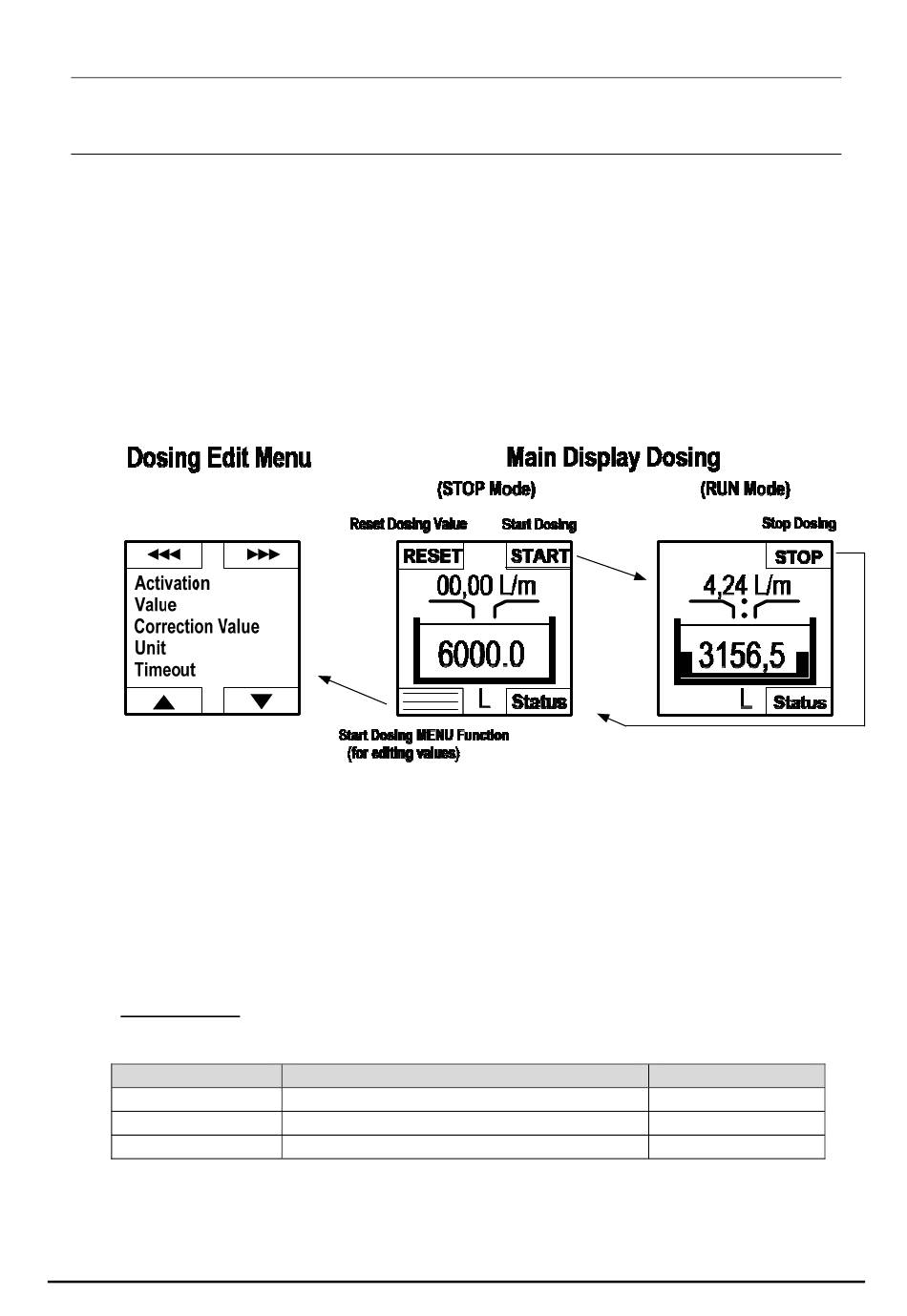

In the main display of the dosing function, the quantity to be dosed in a
preselectable unit and the current flow value are displayed on the one hand. The
progress of the dosing process is additionally represented by a graphic animation
in which the container shown fills in percent and also overfill is shown.
Softkey buttons: All softkey buttons in dosing mode must be held down by the
user for at least 2 seconds and then released again for the corresponding
function to be triggered. This is to avoid accidental operation.
Control input: Connection OUT1 can be used as a control input for the functions
Start / Stop / Reset when the dosing function is activated.
Function
START
STOP
RESET
If the control input is not used, then OUT1 (connection pin 4) must be
connected to PIN3 (GND), the control input must not be left open!
page 30
Dosing output in push pull configuration
Control input for START/STOP/RESET function
by default, but
Conditions
Stop Modus
Run Modus
Stop Modus
can then be freely configured
Control pulsetime
0,5s < t < 4s
high
0,5s < t < 4s
high
t > 5s
high
