Rittal SV 9677.000 Notice De Montage page 12

mm

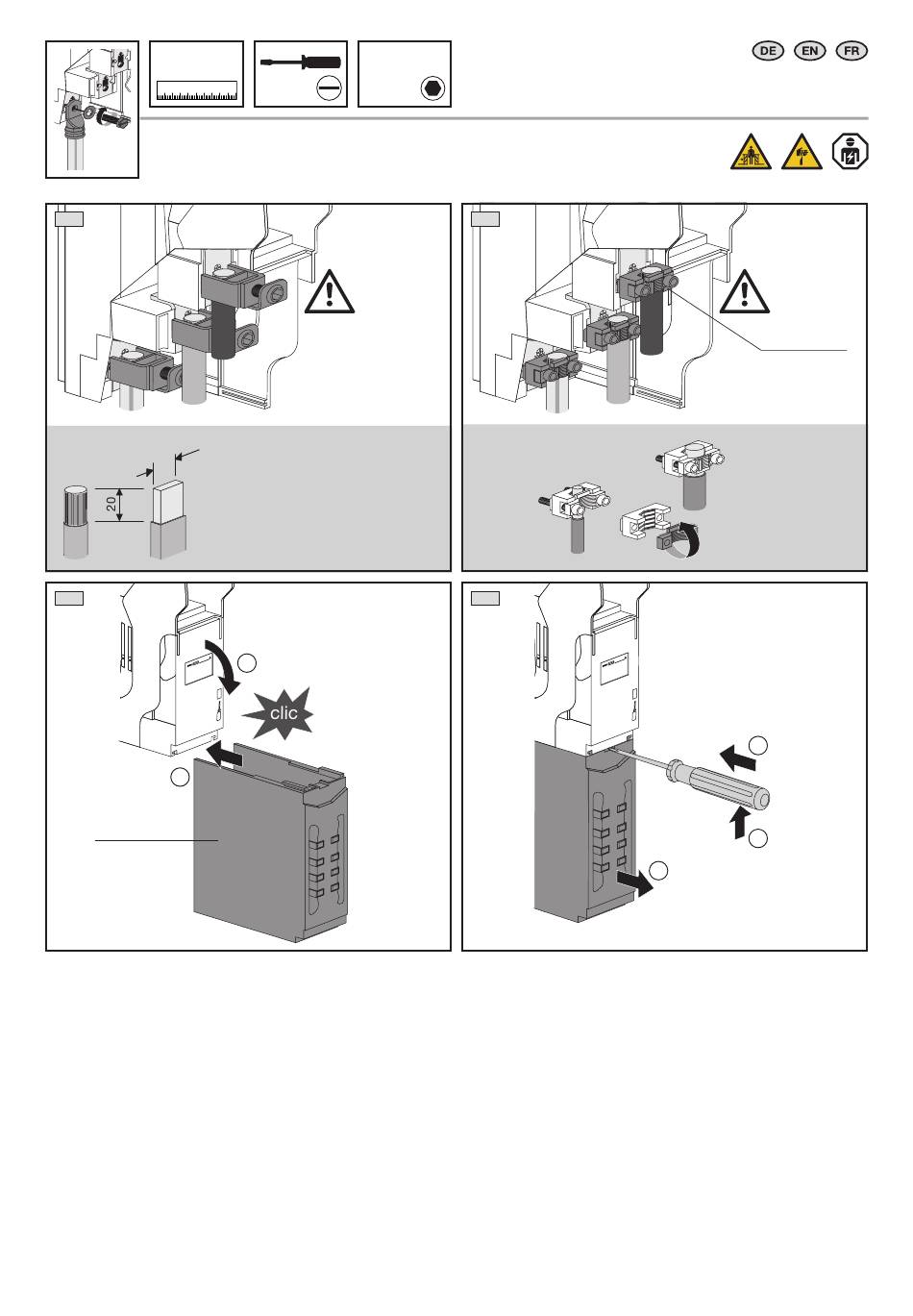

8. Anschlüsse
8. Connections
8. Raccordements
8.3
< 1 2
1.5 – 70 mm²
8.5
2
9677.400
12 Ri4Power System 185 mm Montageanleitung/Ri4Power system 185 mm assembly instructions/Ri4Power système 185 mm – Notice de montage
IS4
1x6
M6, 5.5 Nm
48 lb·in
re 1.5 – 10 mm²
rm 1.5 – 95 mm²
f + AE 1.5 – 70 mm²
95 mm² je nach Verpressung der AE
95 mm² depending on how
cable lugs are crimped
95 mm² en fonction de la manière
dont les cosses de câbles
sont fixés
1
(mm)
8.4
10 – 50 mm²
rm, sm, f, f + AE
8.6
M5, 3.5 Nm
31 lb·in
9677.420
70 – 95 mm²
70 mm² rm, sm, f, f + AE
95 mm² rm, sm, f
1
2
3
Demontage/Dismantling/Démontage
