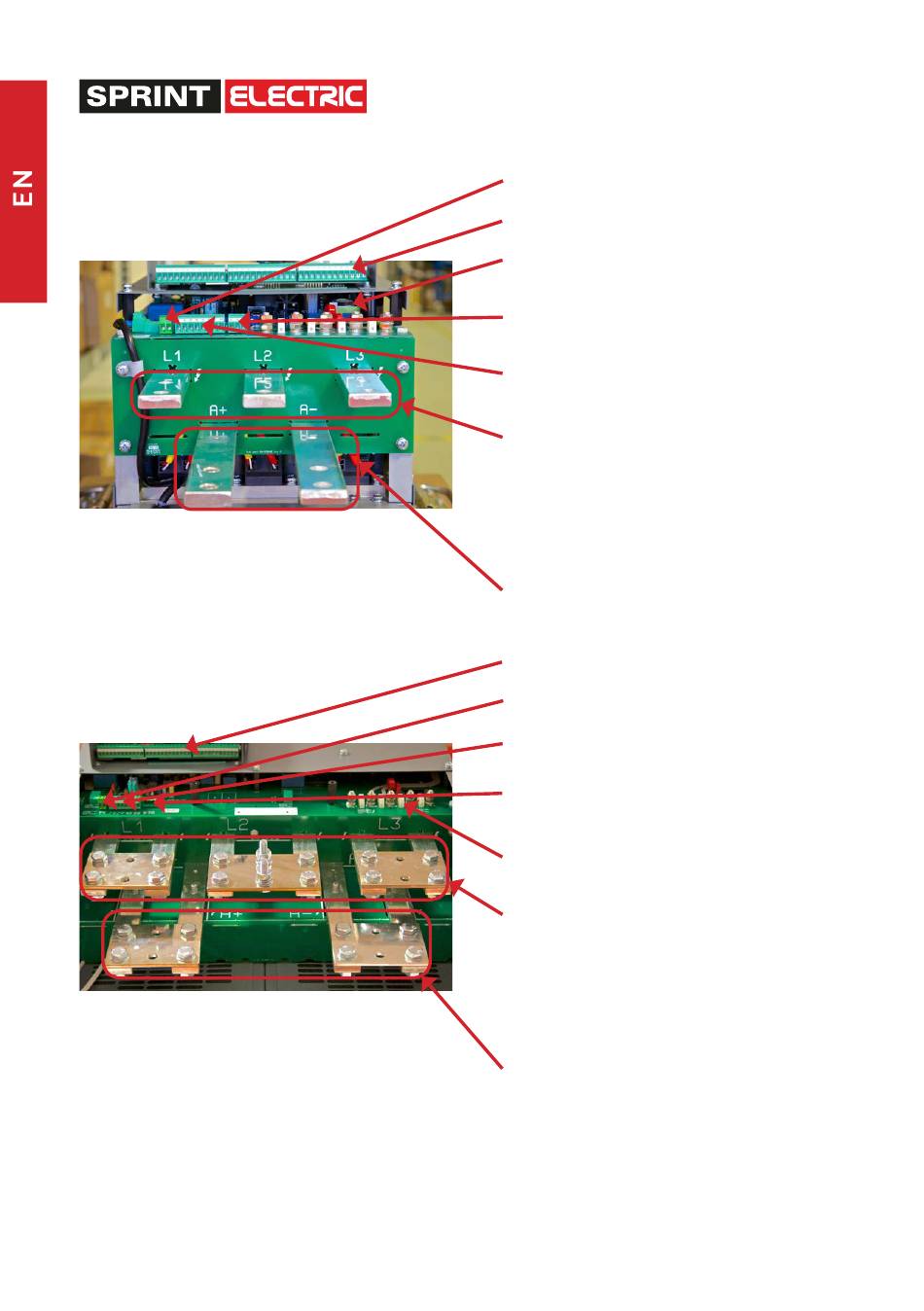

4.1.4 Frame 4
Figure 4-7:
Bottom connections – Frame 4
4.1.5 Frame 5
Figure 4-8:
Bottom connections – Frame 5
06
PL/X Quick Start Guide
240Vac external fan supply (B1, B2)
Control terminals 1 – 36
EL1, EL2, EL3 and Field (F+ and F-) supply
terminals
Control power supply (L, N, E): terminals
51 (E), 52 (N) and 53 (L)
Terminals 41 – 48 for contactor control
and remote armature sensing
Busbar connections for input ac power
(L1, L2, L3)
Note: L1, L2, L3 can be located at
either top or bottom of the
unit, depending on your original
purchase requirements.
Armature (A+ and A-) terminals
Control terminals 1 – 36
240Vac external fan supply (B1, B2)
Terminals 41 – 48 for contactor control
and remote armature sensing
Control power supply (L, N, E): terminals
51 (E), 52 (N) and 53 (L)
EL1, EL2, EL3 and Field (F+ and F-) supply
terminals
Busbar connections for input ac power
(L1, L2, L3)
Note: L1, L2, L3 can be located at
either top or bottom of the
unit, depending on your original
purchase requirements.
Armature (A+ and A-) terminals
