ROBERTS 10-282G-2
DELUXE HEAT BOND IRON

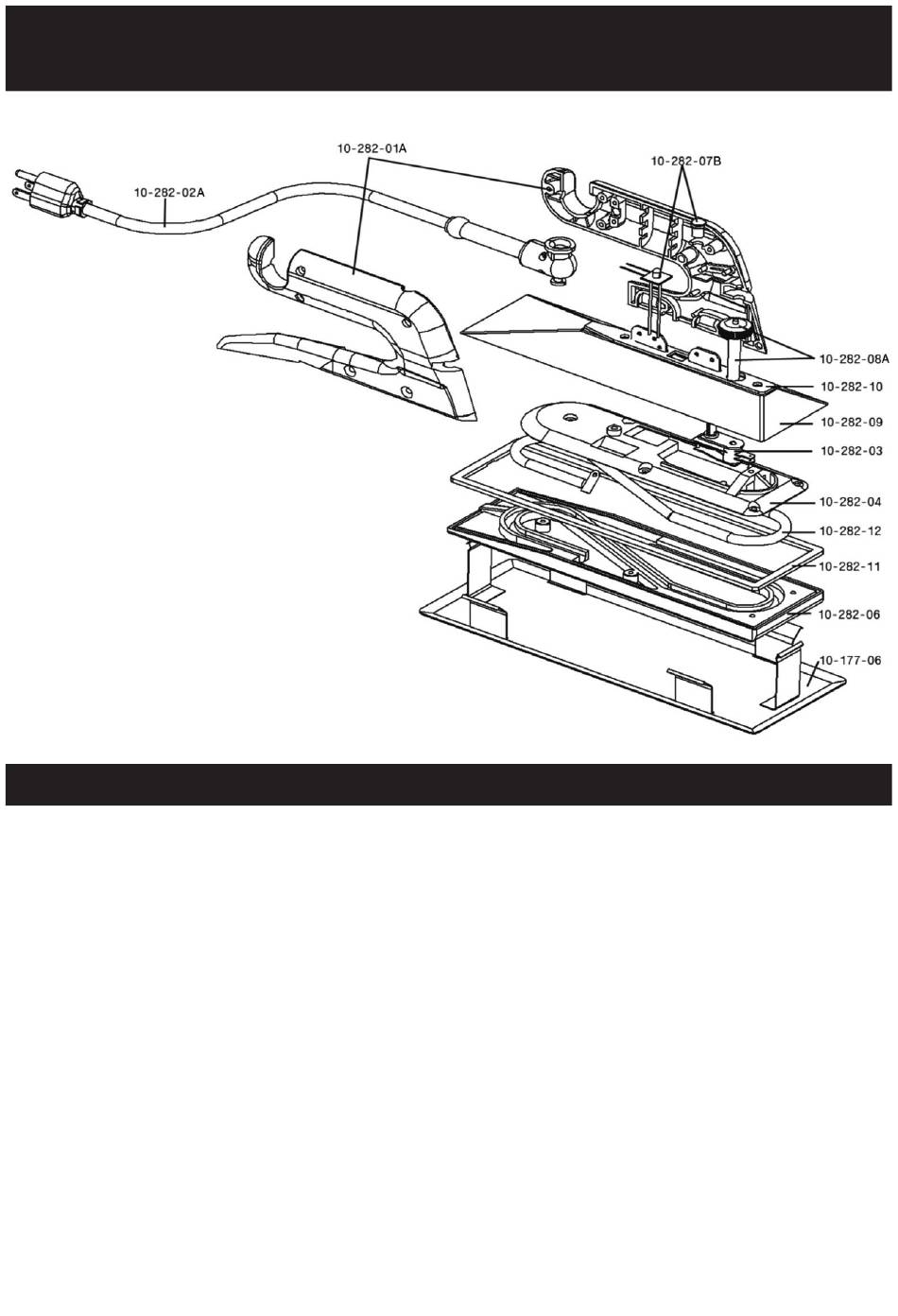

REPLACEMENT PARTS LIST

Part Description
10-282-01A Handle Set w/ (8) Screws
10-282-02A Cord Set Includes Cord Relief Spring, Wire Connection Clip and (4) Screws
10-282-03 Thermostat w/ Extension Post for Control Knob
10-282-04 Top Sole Plate w/ (5) Screws
10-177-06 Iron Holder
10-282-06 Bottom Sole Plate, Non-stick, Grooved (not pictured)
10-282-07B Internal Wire Set (2 pieces)
10-282-08A Calibration Knob
10-282-09 Heat Shield w/ (2) Screws and (1) Washer
10-282-10 Gasket (top of Heat Shield for Handle Mount)
10-282-11 Gasket (between Heat Shield and top of Sole Plate)
10-282-12 Heating Element
10-282-13 Fused Wire Assembly (not pictured)
10-282-14 (50) Screws for Handle (not pictured)
10-282-15 (50) Screws For Sole Plate & Heat Shield (not pictured)
