Equipment controls

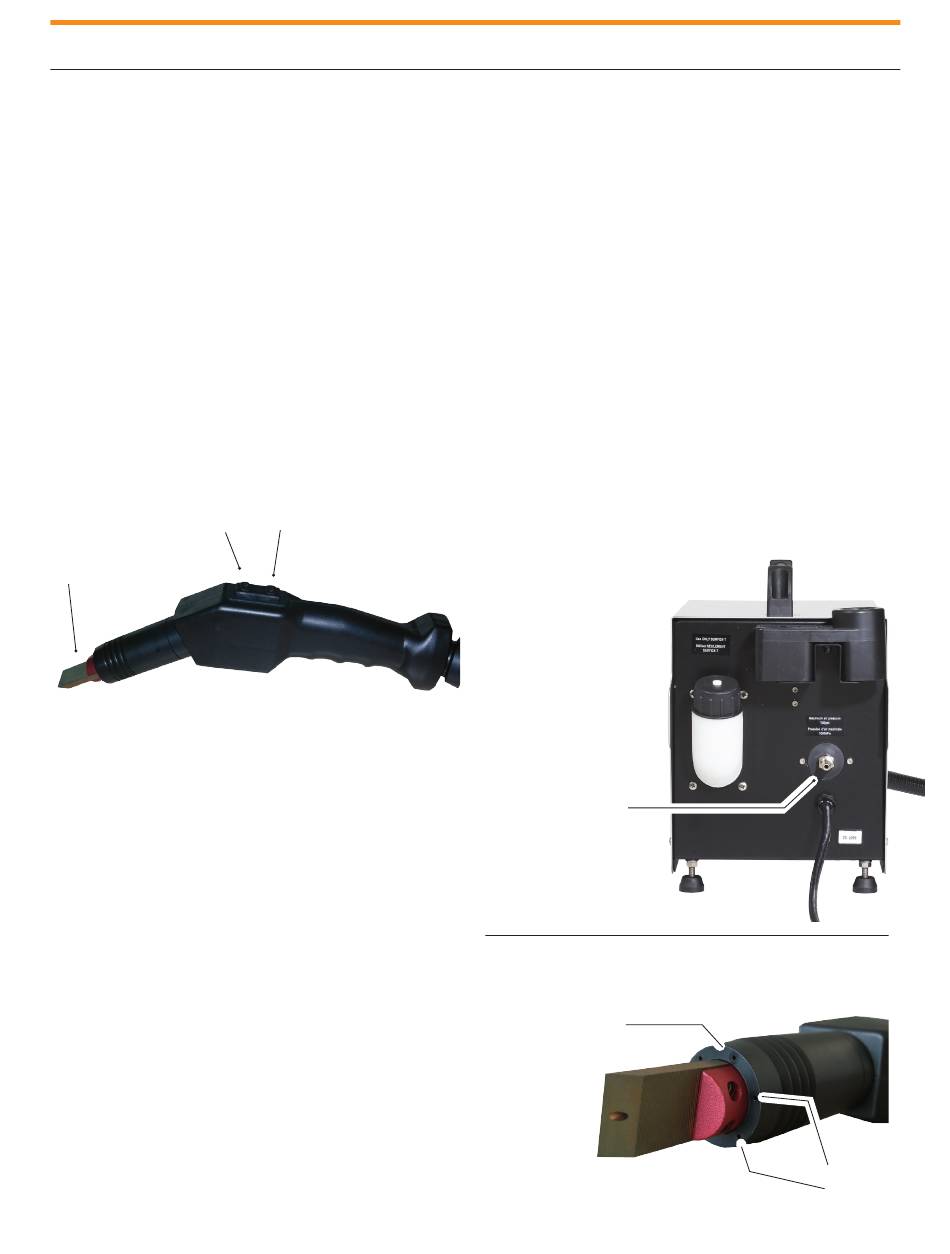

C) Wand control buttons
The ON button is used to give power to the tungsten tip.
When the pumping mode is set to manual, press the ON
button to activate the pump. Press and keep the button
pressed to get continuous flow of liquid.
However, if the pumping mode is set to automatic, press
the ON button once to activate the pump. To stop the
pump, press the OFF button. When finished working
with the machine (in either mode) make sure to press
the OFF button.
Once the ON button is pressed, there will be continuous
power at the tip until the OFF button is pressed.
Tungsten tip
D) Fume elimination system (patented)
The SURFOX 204 machine comes with the integrated fume
elimination system. This system provides for better work-
ing conditions. Although the fumes are non-toxic and non
hazardous, they can be uncomfortable when working in
confined areas.
To activate this feature simply connect a compressed air line
(150 PSI max., 80 PSI min.) to the fitting at the back of the
machine. The fume elimination system is automatically ac-
tivated when the ON button is pressed on the Hand Wand.
The fume elimination system is turned OFF when the OFF
button on the Hand Wand is pressed. If the fume elimination
system is not wanted, simply disconnect the compressed
air line.
The working principle is quite simple and highly effective;
the air comes out through the small openings behind the
tungsten tip. This preset regulated air pressure condenses
the vapors out of the air.
6
ON OFF
E) Tip repositioning (comfort for operator)
The tungsten tip may be rotated from the standard horizon-
tal position to a vertical position or anywhere in between to
make your cleaning as comfortable as possible. To loosen
the right hand threaded fume elimination sleeve, turn tip to
desired position and retighten sleeve.
Important: Always retighten fume elimination sleeve to
ensure a good electrical connection and avoid damaging
the contact points.
Compressed
air line fitting
Tungsten tip close up
Small openings
