Instruction Manual RUSTY
NOTE: The rusty surface is one of the characteristics of this product.
The colour and structure of the surface may change during the
products lifetime.
1.
Use as directed:
This product serves exclusively lighting purposes and may:
only be used with a voltage of 230V ~50Hz.
not be exposed to strong mechanical loads or to strong
contamination.
only be installed and operated after a condition inspection if the
product is dirty or has been moistened through storage.
not be modified or converted.
If these points named above are not adhered to, a short circuit or
electrical shock may occur!
2.
Technical Data:
229020
229021
Operating voltage:
230V ~50Hz
Safety class:
Safety type:
IP 55
Bulb:
E 27, TC-DSE, 7-11 W
Dimensions (cm):
Ø/H: 19/40
Ø/H:19/70
Weight:
11 kg
22 kg
Importer:
SLV Elektronik GmbH
IP 55: Protection against disturbing dust deposition - Protection against
jetted water from all directions.
3.
Installation
The electric connection may be executed only by an electric expert
who is familiar with the valid directives!
Attention: Switch off the power of the mains supply line or
respectively of the connection lead before doing any works
parts, which are supplied with the product or are described as accessories!
Otherwise the product or the installation might not be sufficiently safe.
Installation place:
The product is suited for installation on the ground.
Make sure that the product is mounted on a stable, even and tilt-fixed
background.
Please note: Due to the rusty surface adjacent areas may be stained.
Separate Installation Steps
The electric connection may be executed only by an electric expert who
is familiar with the valid directives.
Prepare the power supply line according to the rules for electric outdoor
installations.

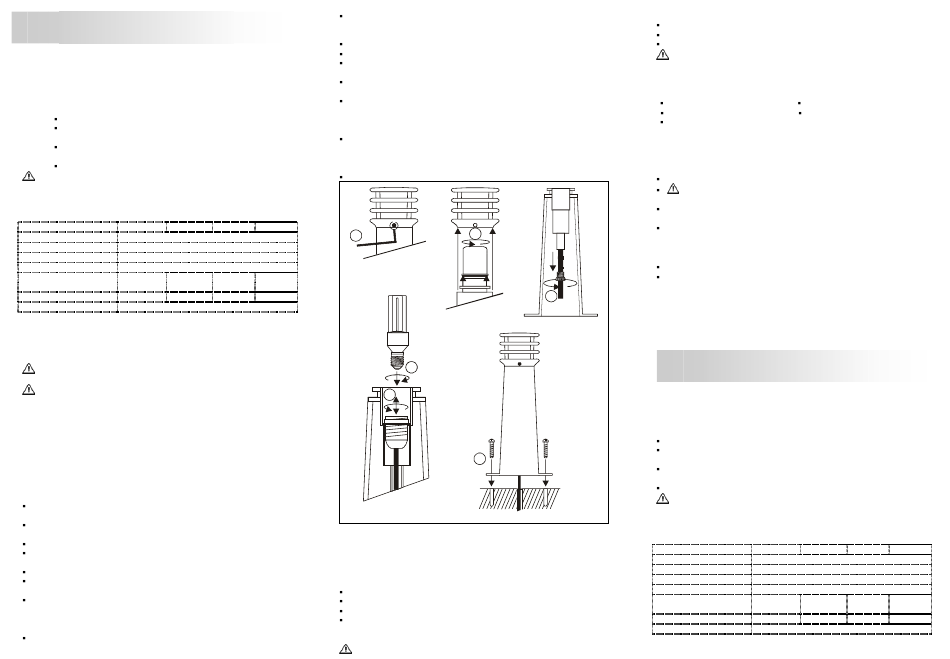

Adjust the socket now to insert the bulb.
Unscrew the headless screws on the lamphead. Remove the lamphead
(1).
Unscrew the lamp glass (2).
Loosen the plastic screw and carefully pull down the plastic washer and
the rubber gasket (3).
Position the socket inside its plastic sleeve using taper-nose pliers, or
the like, corresponding to the size of the bulb. The connected cable must
be freely movable. Bigger bulbs – screw socket down. Smaller bulbs –
screw socket up (4).
Insert the gasket and the plastic washer into the sleeve and secure it
with the plastic screw.
Screw the bulb into the socket (5). Touch the bulb at its plastic base - do
not touch the glass bulb. Use a piece fabric if necessary. Remove
fingerprints from the glass bulb.
Reassemble the lamp head.
Electrical Connection
The product must be able to be separated by an all pole separation from
the current supply.
Use an outdoor connection box (SLV article-no. 228730) to connect
the fixture to the mains supply.
For electric connection attach the black or brown wire (live conductor) of
the mains power supply with the black or brown wire of the fixture and
the blue wire (neutral conductor) of the mains power supply with blue
wire of the fixture.
Fasten the fixture on the installation surface (6). Do not damage the
power supply line, i.e. by drilling, screws or strong bending. This can
lead to a short circuit. Use the earth spike (SLV article-no. 229022) to
utilize the lamp above soil.
Ensure a secure attachment.
229420
229421
1
II
3x
L/B/H:
L/B/H:
12/12/41
12/12/71
13,3 kg
20,4 kg
.
Use only
4.
Operation
Information for the user:
Operate the product only if it is working correctly. Switch off the product
with a malfunction immediately and operate it again only after examination
by an electrical specialist. This is the case, when:
visible damages appear.
the product does not work.
smoke, steam or crackling sounds appear.
an overheating is recognisable.
Repairs of the product or work on mains voltage-prominent sections may
only be carried out by qualified electricians.
Attention: Here exists mortal danger from an electric shock!
2
3
5
4
6
:
How to avoid failure and fire risk:
Do not cover the product - provide free air circulation!
Do not hang or fasten anything on the product, especially no decoration.
Replace damaged protection glasses immediately!
Never let children play unsupervised with electric products! Children
can not always estimate dangers in dealing with electric energy correctly.
The following enviromental influences may have unwanted effects on
the surface of the product:
acid rain and sour soil
high salt content in the air
thawing salt
cleaning agents
other chemical substances (e.g. herbicides)
Protect the product by adequate means to avoid unwanted changes of the
surface. Cleaning tip: Switch off power! Clean the product with a damp
cloth.
What is to do if a bulb is defect or does not work?
Disconnect the product from power, before you exchange the bulbs.
Caution: Let the bulb cool down first before replacement – otherwise
considerable risk of injury exists because of the hot surface.
Replace the bulbs only with bulbs of the same data like socket, power
and capacity. Every other sort of bulb can lead to damages of the light.
Replacing the bulb: see Installation.
5.
What else has to be considered?
Disconnect the product from power, before you...
clean or maintain the product.
do any works on the product or its components (electric expert).
229020/21 229420/21
01/2006 by SLV Elektronik GmbH
Technical Details are subject to change.
Duplication prohibited !
F
Mode d'emploi RUSTY
REMARQUE: La surface rouillée est une des caractéristiques du
produit dont la couleur et la structure peuvent changer !
1.
A utiliser comme indiqué :
Ce produit ne sert qu'à éclairer:
il est prévu pour une tension de 230V ~50Hz.
il ne doit être soumis ni aux efforts mécaniques importants ni à un
encrassement important.
il ne doit être utilisé qu'après examen si le produit a été stocké dans un
entrepôt humide ou sale.
il ne doit pas être modifié.
Un non-respect de ces points peut causer un court-circuit ou une
décharge électrique!
2.
Informations techniques:
229020
229021
Tension d'alimentation:
230V ~50Hz
Classe de protection
Degré de protection:
IP 55
Ampoule:
E 27, TC-DSE, 7-11 W
Dimensions (cm):
Ø/H: 19/40
Ø/H:19/70
Poids:
11 kg
22 kg
Importateur:
SLV Elektronik GmbH
229420
229421
II
L/L/H:
L/L/H:
12/12/41
12/12/71
13,3kg
20,4 kg
Publicité
Table des Matières
