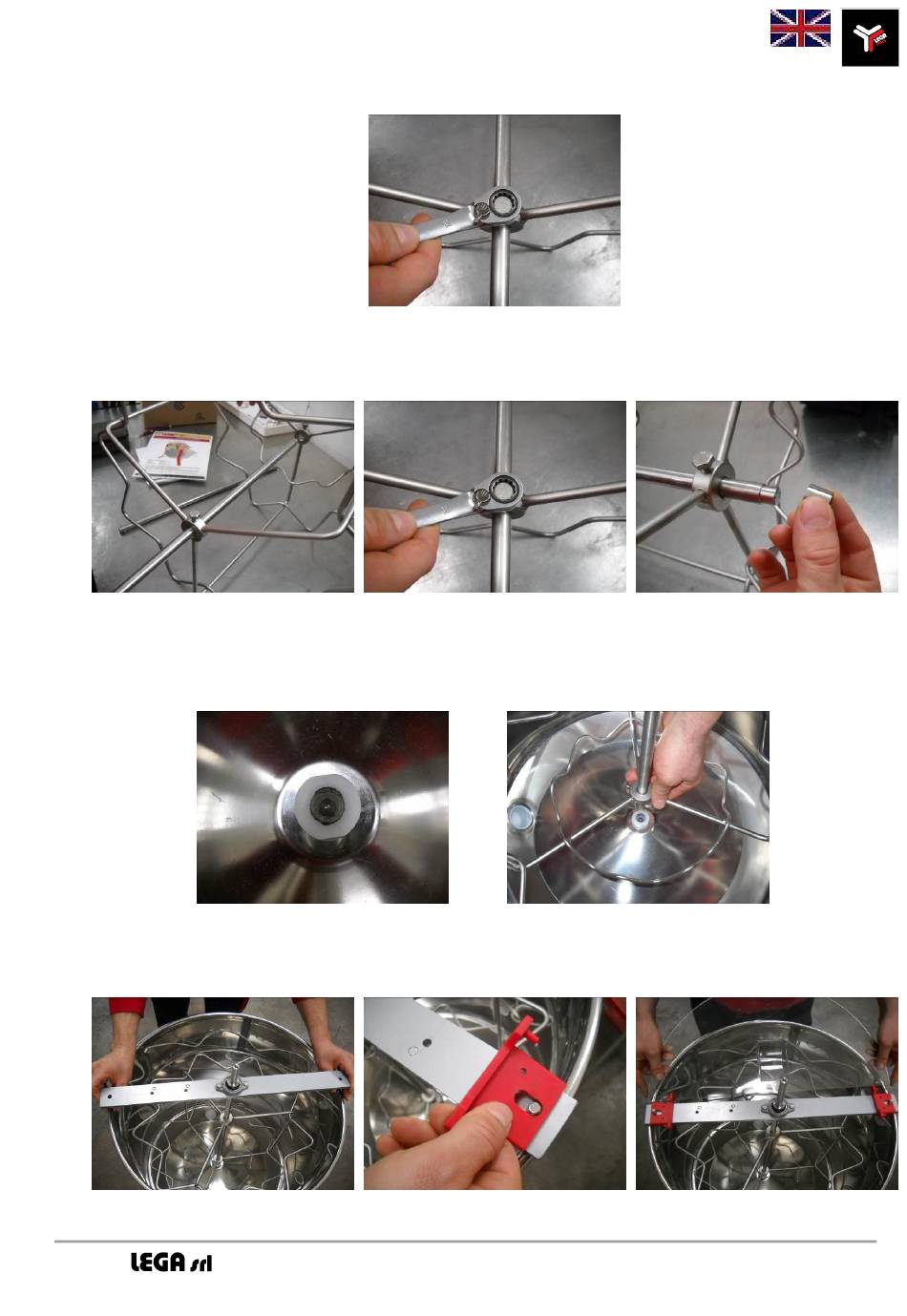

15. Loosen the two locking screws on the cores and remove the cage from the central pin.
16. Insert the new pin (c) in the cage, fix it at the same height as the previous one and insert the bronze bush
(f) in the lower end
17. Check that the ball on which the pin rotates is still present in the bush on the bottom of the extractor,
lubricate with a small quantity of Vaseline grease and insert the cage with the new pin. making sure that the
bush previously inserted on the pin does not come off.
18. Insert the new bar (b) in place of the previous one, ensuring correct insertion of the central pin in the
bearing. Reposition the hinges and half-covers.
