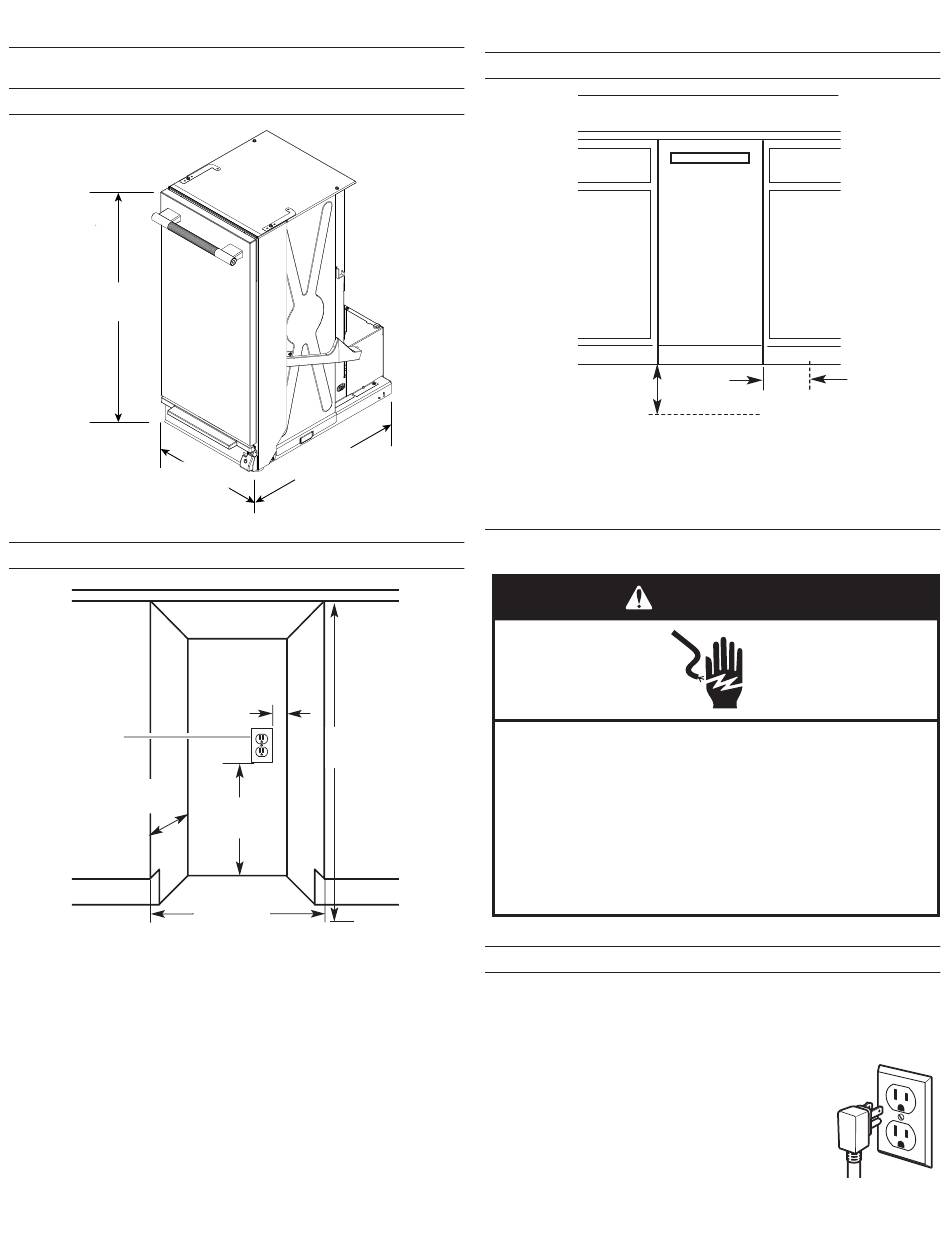

Location Requirement
Product Dimensions
34 / "
1
8
(86.7 cm)
15
(38.1 cm)
Cutout Dimensions
A
24" min.
(61.0 cm)
A. Grounded electrical outlet must be a minimum of 3" (7.6 cm)
away from surrounding cabinets or nearby walls as shown.
It can be placed either to the left or the right side of the
compactor.
INSTALLATION REQUIREMENTS
24
"
"
(61.0 cm)
3" min.
(7.6 cm)
34 / " min.
1
4
(87.0 cm)
18" min.
(45.7 cm)
15 / " min.
1
4
(38.7 cm)
Clearance Dimensions
B
A. Leave 6" (15.2 cm) of clearance space to the right side of the
compactor in order to remove the compactor bags.
B. Leave 23" (58.4 cm) of clearance in front of the compactor in
order to fully open or remove the compactor drawer.
Electrical Requirements
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Recommended Grounding Method
This compactor is for use on a single phase, 115 volt, 60 Hz, AC
only, 15 or 20 amp fused and properly grounded circuit and is
equipped with a grounding plug as shown. It is recommended
that a separate circuit serving only this appliance be provided.
This compactor must be grounded while in
use to reduce the risk of electric shock. The
compactor is equipped with a three-conductor
cord and 3 prong grounding-type plug to fit the
proper grounding-type receptacle. The green (or
green and yellow) conductor in the cord is the
grounding wire. Do not connect the green (or
green and yellow) wire to a live terminal. Do not
modify the plug attached to the compactor; use
with a grounded receptacle.
A
1
