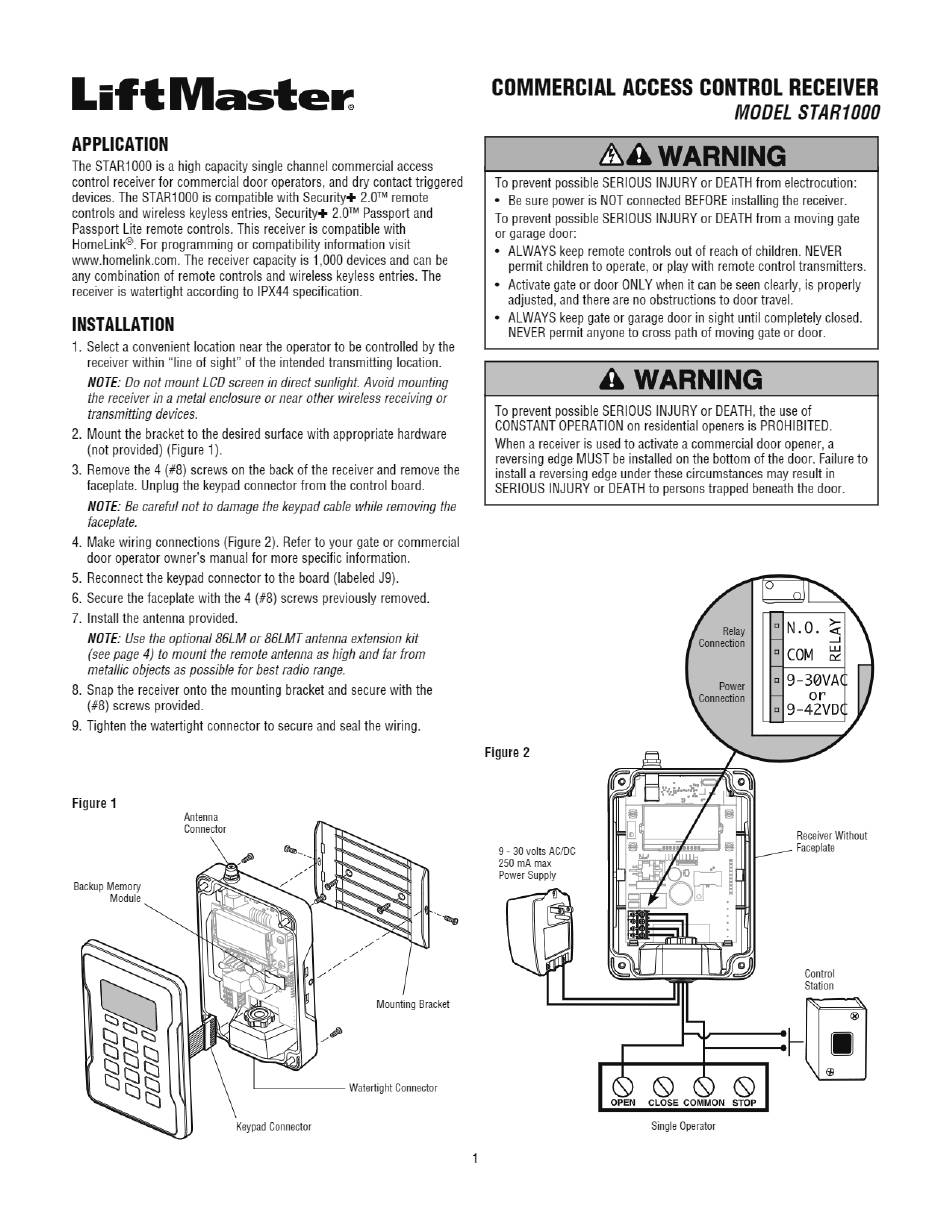

APPLICATION
The STARIOOO is a high capacitysingle channelcommercialaccess
control receiverfor commercialdoor operators, and dry contact triggered
devices.The STARIOOO is compatiblewith Security* 2.0TM remote
controls and wireless keyless entries, Security*
Passport Lite remote controls. This receiver is compatible with
HomeLink@ . Forprogramming or compatibilityinformation visit
www.homelink.com.The receivercapacity is 1,000 devicesand can be
any combinationof remote controls and wirelesskeylessentries.The
receiveris watertight according to IPX44specification.
INSTALLATION
1. Selecta convenientlocation near the operatorto be controlled by the
receiver within "line of sight" of the intended transmitting location.
NOTE:Do not mount LCDscreenin direct sunlight. Avoid mounting
the receiverin a metal enclosure or near other wirelessreceiving or
transmitting devices.
2. Mount the bracketto the desired surfacewith appropriate hardware
(not provided) (Figure1).
3. Removethe 4 (#8) screws on the back of the receiverand removethe
faceplate.Unplugthe keypadconnectorfrom the control board.
NOTE:Be carefulnot to damagethe keypadcable while removing the
faceplate.
4. Makewiring connections (Figure2). Referto your gateor commercial
door operatorowner's manualfor more specific information.
5. Reconnectthe keypadconnectorto the board (labeledJ9).
6. Securethe faceplatewith the 4 (#8) screws previously removed.
7. Install the antennaprovided.
NOTE:Use the optional 861M or 86LMT antennaextensionkit
(seepage4) to mount the remote antennaas high and far from
metallic objectsas possible for best radio range.
8. Snap the receiver onto the mounting bracket and secure with the
(#8) screws provided.
9. Tightenthe watertight connectorto secureand seal the wiring.
Figure 1
Antenna
Connector
Backup Memory
Module
Keypad Connector
COMMERCIAL
To preventpossibleSERIOUS INJURYor DEATH from electrocution:
• Besure power is NOTconnectedBEFORE installingthe receiver.
2.0TM Passport and
To prevent possible SERIOUS INJURY or DEATH from a moving gate
or garagedoor:
• ALWAYSkeepremotecontrols out of reachof children. NEVER
permit children to operate,or play with remote control transmitters.
Activategateor door ONLYwhen it can be seenclearly,is properly
•
adjusted,andthere are no obstructionsto door travel.
ALWAYSkeepgateor garagedoor in sight until completelyclosed.
NEVERpermit anyone to cross path of moving gate or door.
To preventpossibleSERIOUS INJURYor DEATH, t he use of
CONSTANTOPERATIONon residential openers is PROHIBITED.
Whena receiveris usedto activatea commercial door opener,a
reversing edge MUST be installed on the bottom of the door. Failure to
install a reversing edge under these circumstances may result in
SERIOUSINJURYor DEATH to personstrapped beneaththe door.
Figure 2
9 - 30 volts ACIDC
250 mA max
Power Supply
MountingBracket
WatertightConnector
1
ACCESS CONTROL RECEIVER
MODEL
AA WARNING
A WARNING
Relay
Connection
Power
Connection
S S
OPEN CLOSE COMMON
STOP
Single Operator
STARIOOO
9-3ØVA
Receiver Without
Faceplate
Control
Station
