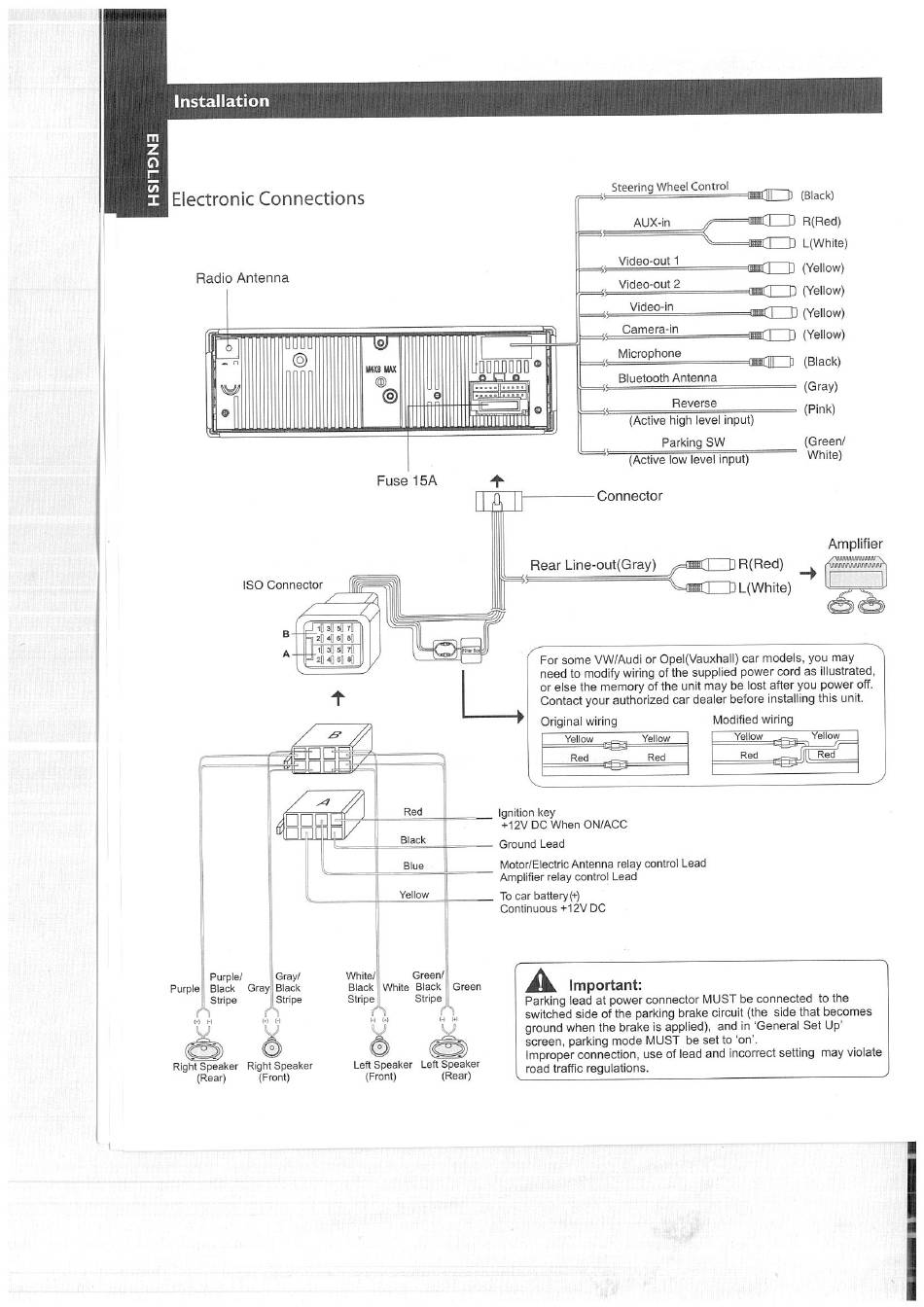

Installation
Electronic Connections
Radio Antenna
o
ISO Connector
2040 so 80
Gray/
Purple/
Gray
Purple Black
Black
Stripe Stripe
Right Speaker
Right Speaker
(Front)
(Rear)
o
0000
Illiliuiliilili
Fuse 15A
71
Red
Ignition key
+12V DC When ON/ACC
Black
Ground
Motor/Electric Antenna relay control Lead
Blue
Amplifier relay control Lead
Yellow To car battery(+)
Continuous
White/
Black Green
Black White
Stripe Stripe
Left Speaker
Left Speaker
(Front) (Rear)
Steering Wheel Control
AUX-in
Video-out I
Video-out 2
Video-in
Camera-in
Microphone
Bluetooth Antenna
Reverse
(Active high level input)
Parking SW
(Active low level input)
Connector
Rear Line-out(Gray)
For some VWIAudi or Opel(Vauxhall) car models, you may
needto modifywiringof thesuppliedpowercordas illustrated,
or else the memoryof the unit may be lost after you power off.
Contactyourauthorized cardealerbeforeinstallingthisunit.
Original wiring
Yellow Yellow
Red
Red
Lead
+12V DC

Important:

Parkingleadat powerconnector M USTbe connectedto the
switched side of the parking brake circuit (the side that becomes
groundwhenthe brakeis applied),and in 'General S etup'
screen, parking mode MUST be set to •on'.
Improper c onnection, u seof leadandincorrectsetting mayviolate
road traffic regulations.
R(Red)
L(White)
(Yellow)
(Black)
(Gray)
(Pink)
(Green/
White)
Amplifier
R(Red)
L(White)
Modified wiring
Yellow Yellow
Red Red
