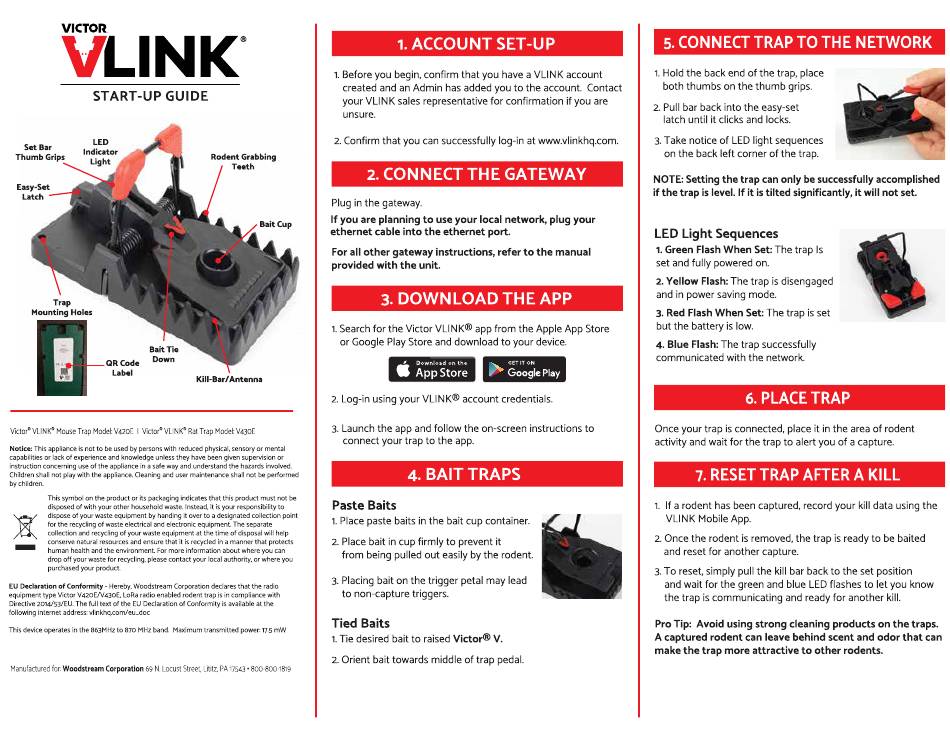

Victor VLINK Guide

VICTOR
VI-INK
START-UP GUIDE
LED
Set Bar
I ndicator
Thumb Grips
Light
Easy-Set
Latch
Trap
Mounting Holes
Bait Tie
Down
QR Code
Label
Victor'V INK'Mouse TrapModel: V420EI Victor eVLINK' R at T rapModel: V430E
Notice: This appliance is not to be used by persons with reduced physical, sensory or mental
capabilities or lack Of experience and knowledge unless they have been given supervision or
instruction concerning use Ofthe appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be performed
by children.
This symbol on the product or its packaging indicates that this product must not be
disposed of with your other household waste. Instead, it is your responsibility to
dispose of your waste equipment by handing it over to a designated collection point
for the recycling of waste electrical and electronic equipment. The separate
collection and recycling of your waste equipment at the time of disposal will help
conserve natural resources and ensure that it is recycled in a manner that protects
human health and the environment. For more information about where you can
drop Off your waste for recycling, please contact your local authority, or where you
purchased your product.
EU Declaration of Conformity - Hereby, Woodstream Corporation declares that the radio
equipment type Victor V420E/V430E, LoRa radio enabled rodent trap is in compliance with
Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the
following internet address:vlinkhq.com/eu_doc
This device operates in the 863MHz to 870 MHz band. Maximum transmitted power: 17.5mw
d Manufacture for:Woodstream Corporation 69 N.LocustStreet, L ititz,PA17543 • 800-800-1819
1. Before you begin, confirm that you have a VLINK account
created and an Admin has added you to the account. Contact
your VLINK sales representative for confirmation if you are
unsure.
2. Confirm that you can successfully log-in at www.vlinkhq.com.
Rodent Grabbing
Teeth
2. CONNECT
Plug in the gateway.
If you are planning to use your local network, plug your
Bait Cup
ethernet cable into the ethernet
For all other gateway instructions, refer to the manual
provided with the unit.
1.Searchfor the Victor VLINK@app from the AppleApp Store
or Google Play Store and download to your device.
Kill- Bar/Antenna
2. Log-in using your VLI
3. Launch the app and follow the on-screen instructions to
connect your trap to the app.
Paste Baits
1.Place paste baits in the bait cup container.
2. Place bait in cup firmly to prevent it
from being pulled out easily by the rodent.
3. Placing bait on the trigger petal may lead
to non-capture triggers.
Tied Baits
1.Tie desired bait to raised Victor@ V.
2.Orient bait towards middle of trap pedal.
1. ACCOUNT SET-UP
THE GATEWAY
port.
3. DOWNLOAD THE APP
Dowåload on the
GET IT ON
App Store Google Play
account credentials.
4. BAIT TRAPS
5. CONNECT TRAP TO THE NETWORK
I. Hold the back end of the trap, place
both thumbs on the thumb grips.
2. Pull bar back into the easy-set
latch until it clicks and locks.
3.Take notice of LED light sequences
on the back left corner of the trap.
NOTE: Setting the trap can only be successfully accomplished
if the trap is level. If it is tilted significantly, it will not set.
LED Light Sequences
1.Green Flash When Set: The trap Is
set and fully powered on.
2. Yellow Flash: The trap is disengaged
and in power saving mode.
3. Red Flash When Set: The trap is set
but the battery is low.
4. Blue Flash: The trap successfully
communicated with the network.
6. PLACE TRAP
Once your trap is connected, place it in the area of rodent
activity and wait for the trap to alert you of a capture.
7. RESET TRAP AFTER A KILL
. If a rodent has been captured, record your kill data using the
VLINK Mobile App.
2. Once the rodent is removed, the trap is ready to be baited
and reset for another capture.
3.To reset, simply pull the kill bar back to the set position
and wait for the green and blue LEDflashes to let you know
the trap is communicating and ready for another kill.
Pro Tip: Avoid using strong cleaning
A captured rodent can leave behind scent and odor that can
make the trap more attractive to other rodents.
products on the traps.
