Sunrise Medical Empulse R90 Mode D'emploi

Please read these instructions carefully before beginning the assembly. Failure to understand and
follow assembly instructions may result in injury to technician and/or end user and may void the
warranty. If you have any questions call Sunrise Medical Technical Support.
Tools required
1. Flat head screw driver
(to remove battery)
2. 2mm Allen wrench

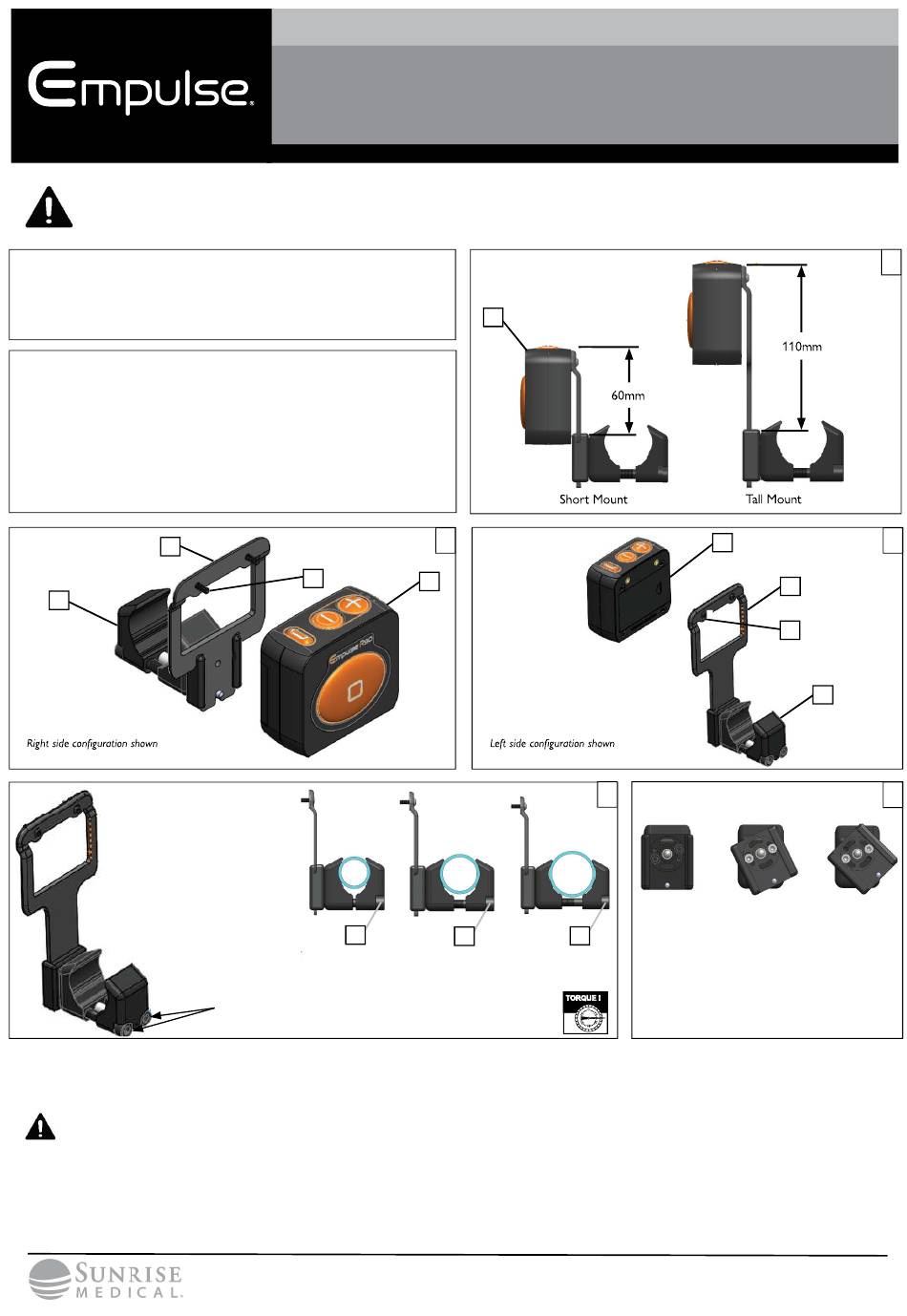

Parts
1. R90 Control Box
including Mount
(Right or Left)
2. R90 Control Box
(Right or Left)
3. R90 Control Box Mount
(includes items 4-8)
Short Mount
4
3
Adjustment Screws
Tube Size ConÞ guration
DEALER/TECHNICIAN WARNING
Attention dealers and qualiÞ ed technicians, do not operate or service this device without Þ rst reading the owners manual.
If you do not understand the instructions and warnings in the owners manual please contact the Sunrise Medical Technical
Service Department before operating and/or servicing the Empulse device. Failure to do so may result in damage and/or
injury.
Find more information and important warnings in the device owner's manual or at: www.SunriseMedical.co.uk
3. 2.5mm Allen wrench
4. 5mm Allen wrench
4. Vertical Bracket Short
5. Vertical Bracket Tall
6. SHCS M6x35 (x2)
7. SHCS M6x40 (x2)
8. SHCS M6x45 (x2)
9. M3x10 BHCS (x2)
9
6
23mm
M6x35 screws
Clamp
screws
Customer Service: Telephone: +(44) (0) 845 605 6688
or visit: www.SunriseMedical.co.uk
Height Option
1
2
Tall Mount
2
7
28.6mm 35mm
M6x40 screws M6x45 screws
Torque clamp screws to
16.27 Nm.
R90 CONTROL BOX
®
2
4
Angle Adjustment
0°
horizontal horizontal
8
tube mount tube mount
For 45° mount, remove hardware and
line up bracket with a new set of holes
and reattach hardware.
For vertical mount, rotate clamp 90°
© 2025 Sunrise Medical (US) LLC
2025-09-01
ENGLISH
1
3
5
9
3
5
45°
22°
horizontal
tube mount
255701 Rev. B
