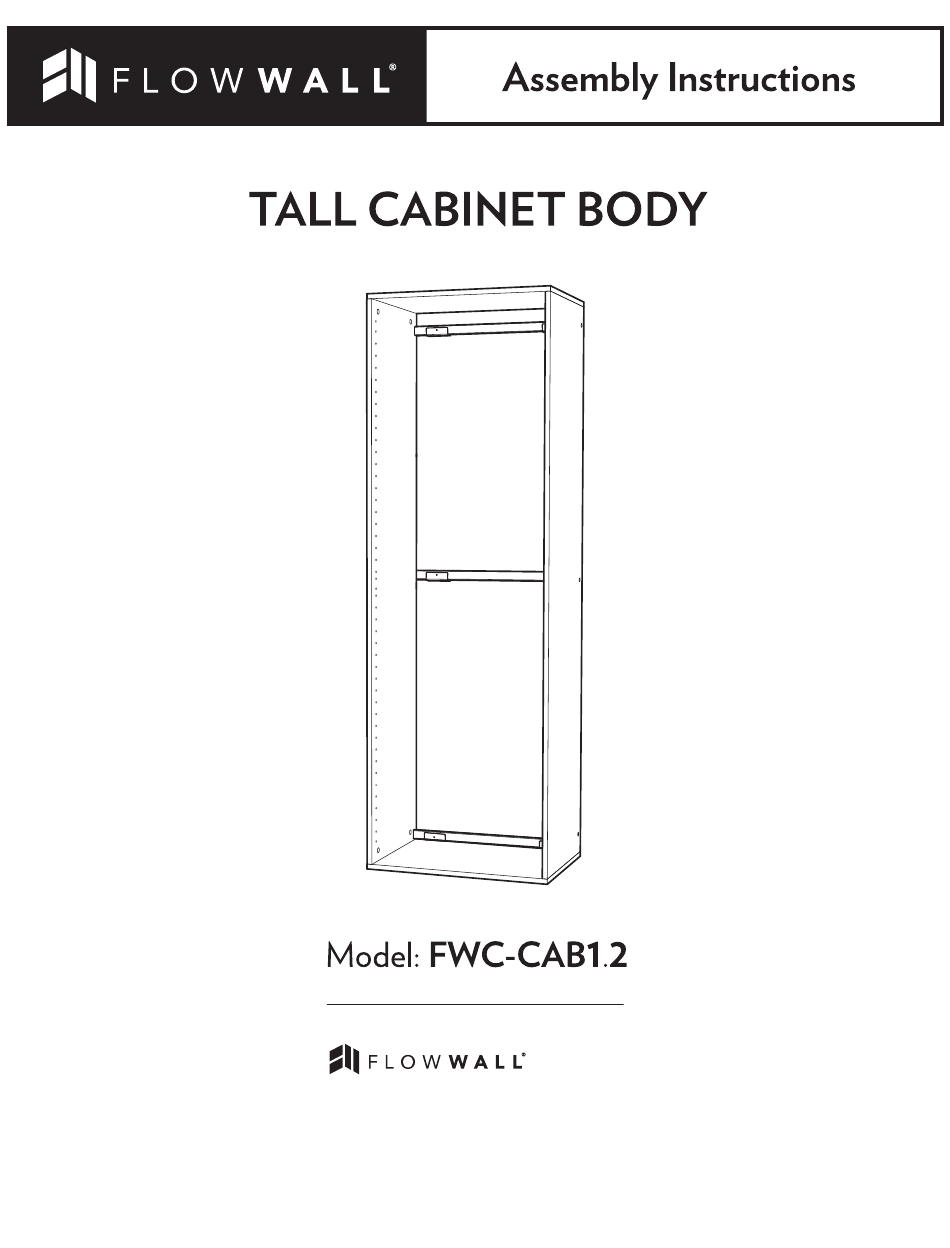

- Page 1 Assembly Instructions FLOWWALL@ TALL CABINET BODY Model: FWC-CAB1.2 FLOW WALL' 1891 W 2100 S 1891 2100 Salt Lake City, UT 84119 Salt Lake City, UT 84119 (877)-203-5974 (877)-203-5974 customerservice@flowwall.com customerservice@flowwall.com...
-
Page 2: Parts List
PARTSLIST TALL CABINET BODY FWC-CAB1.2 PICTURE PARTDESCRIPTION QTY. Cam Post Dowel SteelSpanner Spanner Screw SpannerBracket Top/ Bottom Side Panel... - Page 3 FLOW WALLO TALL CABINET BODY FWC-CAB1.2 Mount Posts - Screwcam posts (A) into receiverholeson top & bottom panels(F).
- Page 4 FLOWWALL@ TALL CABINET BODY FWC-CAB1.2 Side Panel- Glue and insert dowels(B) into side panels(G).(Glue optional) Wood Glue Optional...
- Page 5 FLOW WALC TALL CABINET BODY FWC-CAB1.2 Connect Panels-Connectthe top andbottom panels(F) to the sidepanels(G).Insertcams Step 3. (A) into the holeson the sides. S lidethe top and bottom together.Tighten the cams.
- Page 6 FLOWWALL@ TALL CABINET BODY FWC-CAB1.2 Add Steel Spanners- Assemblethe steel spanners(C) to your cabinet usingthe spanner Step 4. screws(D).
- Page 7 FLOWWALL@ TALL CABINET BODY FWC-CAB1.2 Hang the Cabinet - Assemblethe spannerbrackets(E) to your Flow Wall panel Step 5. whereveryou would like to hangyour cabinet. Hang the cabinet on the spannerbrackets (E). After hanging,the cabinet can be adjusted sideto side by sliding shelland brackets.
-
Page 8: Instruction D' Assemblage
Instruction D' Assemblage FLOWWALL@ STRUCTURE DU CABINET GRAND Modéle: FWC-CAB1.2 FLOW WALL' 1891 W 2100 S 1891 2100 Salt Lake City, UT 84119 Salt Lake City, UT 84119 (877)-203-5974 (877)-203-5974 customerservice@flowwall.com customerservice@flowwall.com... -
Page 9: Référence Discription
LISTEDES STRUCTURE DU CABINET GRAND FWC-C03-G RÉFÉRENCE DISCRIPTION QTE. IMAGE Came et Poteau Cheville Clé en acier Clé ä vis Support de serrage Dessus/Dessousdu cabinet Panneau latéral... - Page 10 FLOW WALLO STRUCTURE DU CABINET GRAND FWC-CAB1.2 Poteaux de montage - Vissez le poteau (A) dans lesorifices du receveursur le Etape 1. panneaudu dessuset du dessous(F).
- Page 11 FLOWWALL@ STRUCTURE DU CABINET GRAND FWC-CAB1.2 Panneaulatéral - Collezet insérezleschevilles (B) dansle panneaulatéral(G) Etape 2. (colle ä boisoptionnelle) COLLE BOIS OPTIONNELLE...
- Page 12 FLOW WALC STRUCTURE DU CABINET GRAND FWC-CAB1.2 Connecter les Panneaux- Connectezlespanneaux du dessus et du dessous (F) aux Etape 3. panneaux latéraux(G).Insérez lescames(A) danslesorificeslatéraux.Faitesglisserlapiöce du dessuset celle du dessous. Serrez les cames.
- Page 13 FLOWWALL@ STRUCTURE DU CABINET GRAND FWC-CAB1.2 Support ä étagære- Assemblezlessupports étagäre (C) votre cabinet en utilisant Etape 4. lesvis ä étagære (D).
- Page 14 FLOWWALL@ STRUCTURE DU CABINET GRAND FWC-CAB1.2 Suspension du cabinet - Assemblezlessupports plateau (E) votre plateau Flow Wall ä l'endroit oü vous souhaitezsuspendrevotre cabinet. Suspendezle cabinet aux supports Etape 5. ä plateau(E). Apræsla suspension, l e cabinet peut étre ajustécate ä cate en glissantI étagäre et les plateaux.
- Page 15 Manual de Instrucciones y Ensamble FLOWWALL@ ESTRUCTURAS GABINETE ALTAS Modelo: FWC-CAB1.2 FLOW WALL' 1891 W 2100 S 1891 2100 Salt Lake City, UT 84119 Salt Lake City, UT 84119 (877)-203-5974 (877)-203-5974 customerservice@flowwall.com customerservice@flowwall.com...
- Page 16 LISTADEPARTS ESTRUCTURAS DEL GABINETE ALTAS FWC-COI-G DESCRIPTCIÖN IMAGE CANT. Leva y perno Tarugos Llave de acero Tornillo para llave Soporte para llave Panelsuperior e inferior del gabinete Panel lateral...
- Page 17 FLOW WALLO ESTRUCTURAS DEL GABINETE ALTAS FWC-CAB1.2 Coloque los postes: Atornille los postes(A) en los orificios de recepci6n que se Paso 1. encuentranen la parte superior e inferior del panel(F).
- Page 18 FLOWWALL@ ESTRUCTURAS DEL GABINETE ALTAS FWC-CAB1.2 Panel lateral: Peguee insertelos tarugos (B) en el panel lateral(G). Paso 2. (el pegamento es opcional) EL PEGAMENTO ES OPCIONAL...
- Page 19 FLOW WALC ESTRUCTURAS DEL GABINETE ALTAS FWC-CAB1.2 Conectar Paneles:Una los panelesinferior y superior(G) a los paneleslaterales(F). Paso 3. Insertelas levas(A) en los orificios de los laterales.Deslice,simulténeamente, l os paneles superiore inferior. Ajuste laslevas.
- Page 20 FLOWWALL@ ESTRUCTURAS DEL GABINETE ALTAS FWC-CAB1.2 Llave de acero - Ensamblelos llavesde acero (C) en su gabinete utilazandolos tornillos Paso 4. para llave(D).
- Page 21 FLOWWALL@ ESTRUCTURAS DEL GABINETE ALTAS FWC-CAB1.2 C6mo colgar el gabinete - Ensamblelos soportespara llave(E) en su panel Flow Wall en el lugardonde le gustarfacolocar su gabinete. Cuelgue el gabinete en los soportes Paso 5. parallave(E). Una vez colgado, el gabinete puede ajustarsede lado a lado, deslizando la carcasay los soportes.
