Never swivel the footrests inwards!

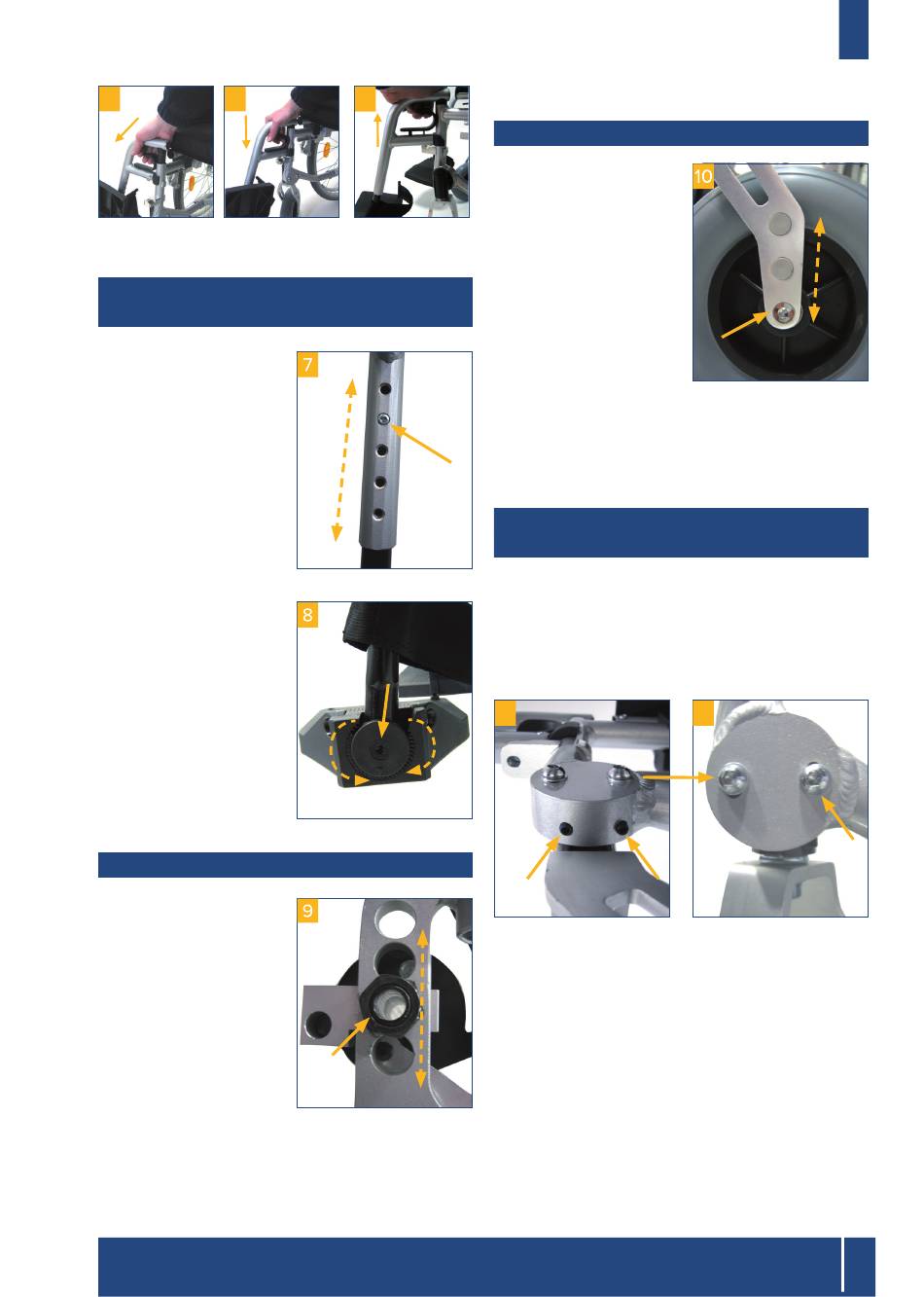

Length and angle adjustment
of the footrest
Length adjustment
(photo 7)
Use the enclosed Allen
wrench to unscrew and
remove the screw on the
footrest and adjust the
length as desired by shif-
ting up or down.
Check where the threaded
hole is and reinsert the lo-
cking screw.
Retighten the screw!
Angle adjustment
(photo 8)
Use the enclosed Allen
wrench to release the
screw on the footrest until
it can be pulled out of the
toothed wheel inwards.
Now rotate the footrest
into the desired position
and press it back into the
toothed wheel.
Retighten the screw!

Adjusting seat height (rear wheel mount)

The height of the seat at
the rear can be adjusted
in increments. To adjust
it, remove both hand rim
wheels by pressing the re-
lease button (see section
"Attach wheels"). Unscrew
the nut of the wheel mount
and move it into the desi-
red hole.
Replace the nut with the
locking washer and tigh-
ten it (photo 9).
Drive Medical GmbH & Co. KG | As per: 26.05.2020 | Errors and alterations excepted
Ensure that the wheel axle is properly tightened!
6

Adjusting seat height (front wheel mount)

The height of the seat can
be adjusted in increments
and is correspondingly ad-
justed in the desired incli-
nation of the seat surface.
To adjust, unscrew the
wheel axle screw and pull
it out.
The plugs of the corres-
ponding holes can be ea-
sily exchanged. Now move
the wheel in the desired
position and reinsert the wheel axle screw and tighten
it (photo 10).
Ensure that the wheel axle is properly tightened!
Adjusting the positive caster
of the front wheels
To adjust or shift the positive and negative caster of the
front wheels, use the enclosed Allen wrenches to un-
screw both lower locking screws (set screws - photo 11).
Then the 2 screws on the eccentric block need to be un-
screwed. The negative or positive caster can be adjus-
ted by rotating right or left (photo 12).
11
This adjustment should be performed only by the spe-
cialist dealer!
EN
12
17
Instructions for use FREETEC
