ASSEMBLY INSTRUCTIONS

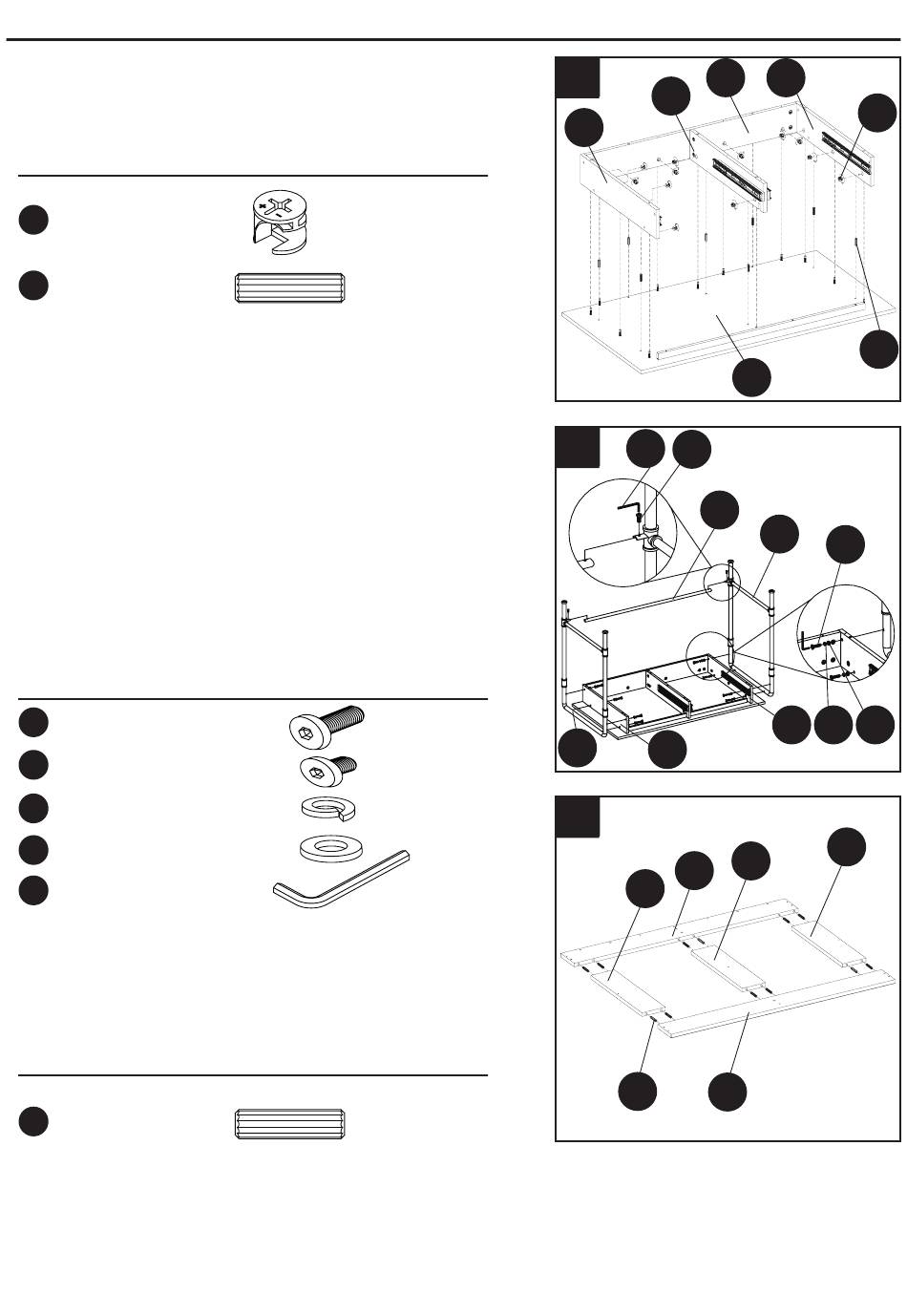

4. Attach fixed left side panel (F), right side panel (G),
partition panel (H), back panel (E) to top panel (A), using
large cam lock (AA) and wood dowel (DD).
Hardware Used
Large Cam Lock
AA
Wood Dowel
DD
5. Attach the left side frame (B) to the left side panel (F), and
right side frame (C) to right side panel (G), using 1/4" x 32
mm bolt (EE), 1/4" lock washer (GG) and 1/4" flat washer
(HH), and then attach back stretcher (M) to left side frame
(B) and right side frame (C), using 1/4" x 15 mm bolt (FF),
tighten with allen wrench (KK).
NOTE: DO NOT fully tighten all bolts until you finish
assembling all parts. Once assembled, go back and fully
tighten all bolts. This will make the assembly easier.
Hardware Used
EE
1/4"x 32 mm Bolt
FF 1/4"x 15 mm Bolt
GG
1/4" Lock Washer
HH
1/4" Flat Washer
KK
Allen Wrench
6. Insert wood dowel (DD) into bottom back rail (I), bottom
front rail (J), bottom side rail (K), bottom center rail (L).
Hardware Used
Wood Dowel
DD
4
G
x 12
x 8
5
x8
C
x2
x8
6
x8
x1
x 12
7
F
E
H
A
KK FF
M
B
F
G
L
I
K
DD J
AA
DD
EE
GG HH
K
