DeLOCK 90891 Mode D'emploi

Declaration of conformity
Products with a CE symbol fulfill the EMC directive (2014/30/EU) and
RoHS directive (2011/65/EU+2015/863+2017/2102), which were released by the
EU-comission.
The declaration of conformity can be downloaded under documents:
https://www.delock.de/produkte/G_90891/merkmale.html
WEEE-notice
The WEEE (Waste Electrical and Electronic Equipment)-directive, which became
effective as European law on February 13th 2003, resulted in an all out change
in the disposal of disused electro devices. The primarily purpose of this directive
is the avoidance of electrical waste (WEEE) and at the same time the support of
recycling and other forms of recycling in order to reduce waste. The WEEE-logo on
the device and the package indicates that the device should not be disposed in the
normal household garbage. You are responsible for taking the disused electrical
and electronical devices to a respective collecting point. A separated collection and
reasonable recycling of your electrical waste helps handling the natural resources
more economical. Furthermore recycling of electrical waste is a contribution to
keep the environment and thus also the health of men. Further information about
disposal of electrical and electronical waste, recycling and the collection points
are available in local organizations, waste management enterprises, in specialized
trade and the producer of the device.
Cet appareil
se recycle
Points de collecte sur www.quefairedemesdechets.fr
EU Import: Tragant Handels- und Beteiligungs GmbH
Beeskowdamm 13/15, 14167 Berlin, Germany
Support Delock
If you have further questions, please contact our customer support
support@delock.de
You can find current product information on our homepage: www.delock.com
Final clause
Information and data contained in this manual are subject to change without notice
in advance. Errors and misprints excepted.
Copyright
No part of this user's manual may be reproduced, or transmitted for any purpose,
regardless in which way or by which means, electronically or mechanically, without
explicit written approval of Delock.
Edition: 04/2025
User manual
Mode d'emploi
Uživatelská příručka
Manuale utente
Manual de utilizare
Korisnički priručnik

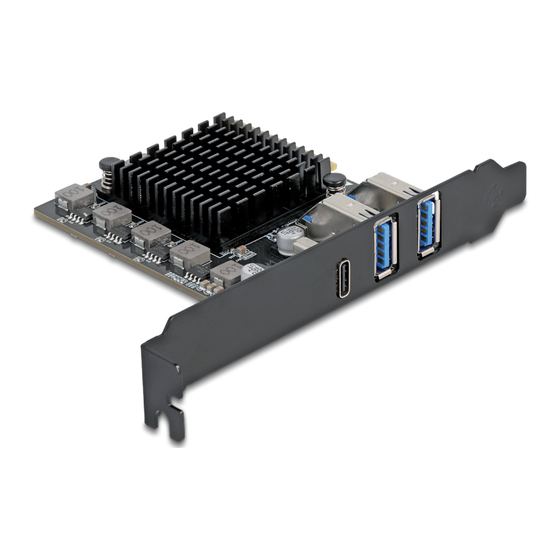

USB 20 Gbps PCI Express x4 Card
1 x USB 20 Gbps USB Type-C™ +
2 x USB 10 Gbps Type-A
English
Description
This PCI Express card by Delock expands the PC by three external USB ports,
one USB-C™ port with 20 Gbps and two USB Type-A ports with 10 Gbps data
transfer rate. Different USB devices can be connected to the card.
Technical details
• Connectors:
external:
1 x USB 20 Gbps USB Type-C™ female
2 x USB 10 Gbps Type-A female
internal:
1 x PCI Express x4, V3.0
• Chipset: Asmedia ASM3242
• 3 x LED indicator
• Data transfer rate up to 20 Gbps
• Downwards compatible to USB 3.0, USB 2.0, USB 1.1
• Electrical power:
USB Type-C™: max. 15 watt (5 V / 3 A)
USB Type-A: max. 12 watt (5 V / 2.4 A)
• Bootable
• Supports UASP
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Supports Multiple INs
Bedienungsanleitung
Manual del usuario
Instrukcja obsługi
Bruksanvisning
Használati utasítás
Εγχειρίδιο χρήστη
Product-No: 90891
User manual no: 90891-a
