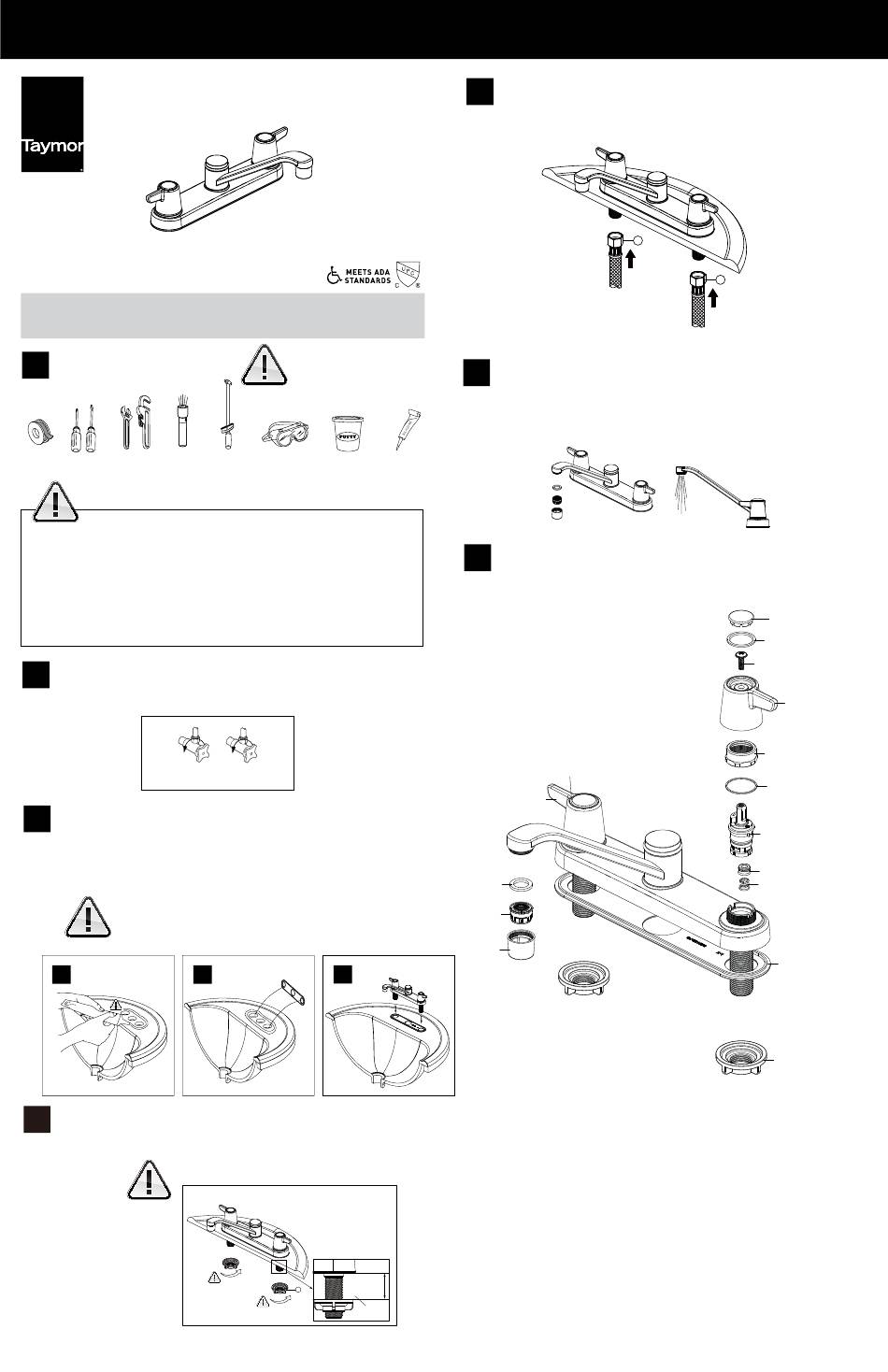

INSTALLATION INSTRUCTIONS
INFINITY 06-8867H
TWO HANDLE KITCHEN FAUCET
THIS FAUCET MEETS OR EXCEEDS THE FOLLOWING STANDARDS:
cUPC, ASME A112.18.1, NSF-61 AND LOW LEAD COMPLIANT
THANK YOU FOR PURCHASING THIS TAYMOR PRODUCT. ALL TAYMOR PRODUCTS ARE CAREFULLY
ENGINEERED AND FACTORY TESTED TO PROVIDE LONG TROUBLE-FREE USE UNDER NORMAL CONDITIONS.
HAVE BASIC TOOLS READY
1
RECOMMENDED TOOLS:
Teflon tape Screwdrivers Adjustable
Flashlight
wrench and
pipe wrench
WARNING: READ ALL the instructions completely before beginning.
READ ALL warnings, care and maintenance information.
Taymor recommends calling a professional if you are uncertain about installing this product!
This product should be installed in accordance with all local and provincial plumbing and building codes.
Need Help? Please call our toll-free Customer Support line at
(WEST) 1-800-267-4774 (EAST) 1-800-387-7064 for additional assistance or service.
TURN OFF THE MAIN WATER SUPPLY
2
Locate water supply inlets and shut off water supply valves. These are usually found under
the sink.
TURN OFF
GASKET & FAUCET INSTALLATION
3
A) Apply a bead of plumber's putty or silicone caulk around the sink openings.
B) Install the gasket over the three holes in your sink.
C) Install faucet shanks through the holes of the sink. Centre the faucet body on the sink.
Don't use plumber's putty on cultured marble or other composite sinks.
Putty will discolour the sink.
A
HAND TIGHTEN THE WING NUTS
4
From underneath the sink, hand tighten the wing nuts. Tighten gently until snug and alternate from side
to side to seat the faucet body evenly.
Don't over tighten
Your installation may require new supply
lines. (Supply lines are not included.)
Torque wrench Safety goggles Plumber's putty
TURN OFF
B C
1-1/4"
(31 mm)
1
Sink
MAKE CONNECTIONS TO WATER LINES
5
Use 1/2" IPS faucet connections (1) and tighten connections with wrench. Do not overtighten.
Do not use plumber's putty, pipe dope, or any other type of sealing compound on water inlet or
threads. Additional compound is not necessary.
FLUSHING & AERATOR CLEANING
6
Remove the aerator by turning it counterclockwise. Remove the internal parts of the aerator by push-
ing them out with your fingers. Remove any debris. Turn on hot and cold water supplies. Turn faucet
handle all the way on and run water through the spout for about a minute to remove debris. While
water is running check all connections for leaks. Reassemble the aerator and screw it back into the
spout hand tight.
Silicone caulk
EXPLODED DIAGRAM FOR REFERENCE
7
MAINTENANCE Your new faucet is
designed for years of trouble-free
performance. Keep it looking new
by cleaning it periodically with a sof
cloth. Avoid abrasive cleaners, steel
wool and harsh chemicals as these
will dull the finish and void your
warranty.
9 - HANDLE (H)
1 - WASHER
2 - AERATOR
3 - AERATOR
SHELL
Max
CUSTOMER SERVICE WEST 1-800-267-4774 | EAST 1-800-387-7064 | taymor.com
1
8 - RING (H)
® REGISTERED TRADEMARK OF TAYMOR INDUSTRIES LTD.
1
4-CAP
5 - RING (C)
6 - SCREW
7 - HANDLE (C)
10 - BONNET
11 - WASHER
12 - CARTRIDGE
13 - DISC
14 - DISC SPRING
15 - BASE PLATE
16 - MOUNTING NUT
