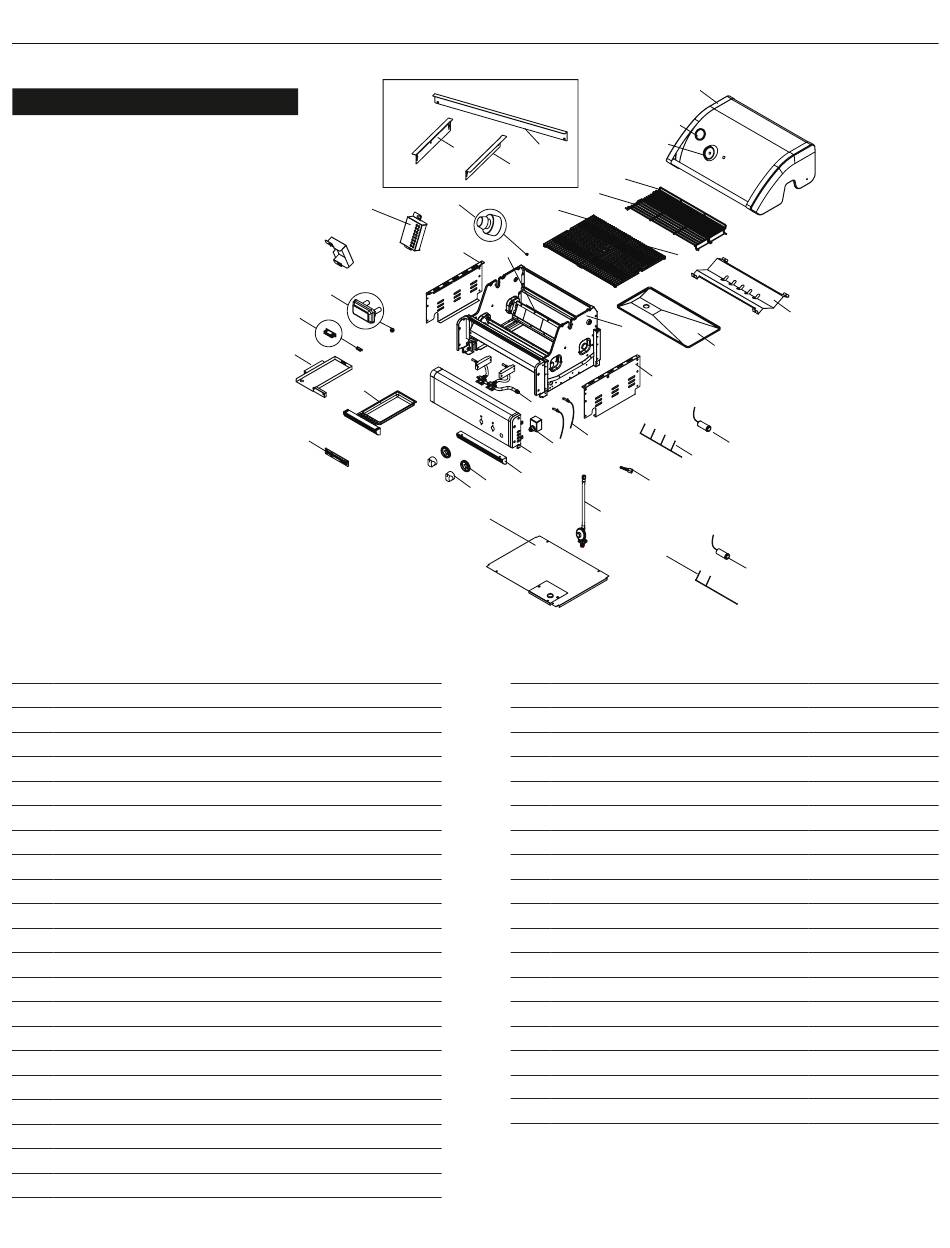

PARTS DIAGRAM
Model: TCS2FL & TCS 2PL (Grill Head)
PARTS LIST
KEY DESCRIPTION
1
Lid Assembly
2
Temperature Gauge
3
Temperature Gauge Seat
4
Warming Rack D145
5
Warming Rack D100
6A
Cooking Grid W281
6B
Cooking Grid W295
7
Grill Bowl Assembly
8A
Burner/Main
8B
Burner Wind Shield
9
Protective Pad
10
Gas Valve/Manifold Assembly (30mbar)
Gas Valve/Manifold Assembly (50mbar)
11
Electric Wires Set/Electrode
12A Protective Pad
12B Magnet
13
Electric Ignitor, 2 ports
14
Control Panel
15
Control Knob Seat
16
Control Knob
ENGLISH
B1
9
8B
18
12A
12B
17E
17C
22
PART#
QTY
P0014646KA
1
P00601601C
1
P00614047E
1
P01507037H
1
P01507038H
1
P01615067H
1
P01615068H
1
P00736047E
1
P020050374
2
P06909009C
2
P05518113K
2
Y0060869
1
Y0060870
1
P02614018A
1
P05518112K
2
P05523058M
1
P02502492F
1
P029170675
1
P03447014A
2
P03444022V
2
B3
B2
4
5
6A
8A
7
10
11
13
14
17D
15
16
20A
21
KEY DESCRIPTION
17A Grease Tray Heat Shield
17B Grease Tray
17C Grease Receptacle
17D Grease Receptacle Front Panel, Right
17E Grease Receptacle Bracket
18
Side Shelf Connecting Bracket, Left
19
Side Shelf Connecting Bracket, Right
20A Regulator with Hose (50mbar)
20B Universal Hose Barb
21
Bowl Bottom Shelf
23
Name Plates
A1
Electric Wires Set / LED
A2
Battery Pack / LED
B1
Spacer Bracket - LEFT
B2
Spacer Bracket - RIGHT
B3
Spacer Bracket - REAR
Plancha (Optional)
Assembly Manual
8
1
2
3
6B
17A
17B
19
22
21
20B
A1
A2
PART#
P06904074C
P0270538RG
P02701407F
P07508019W
P03304086C
P01202009B
P01203009B
P03640016A
P03905002A
P010020875
P00403009D
P05373013B
P05301013B
P07901056D
P07901057D
P07901058D
P05701058B
P80191040K
QTY
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
