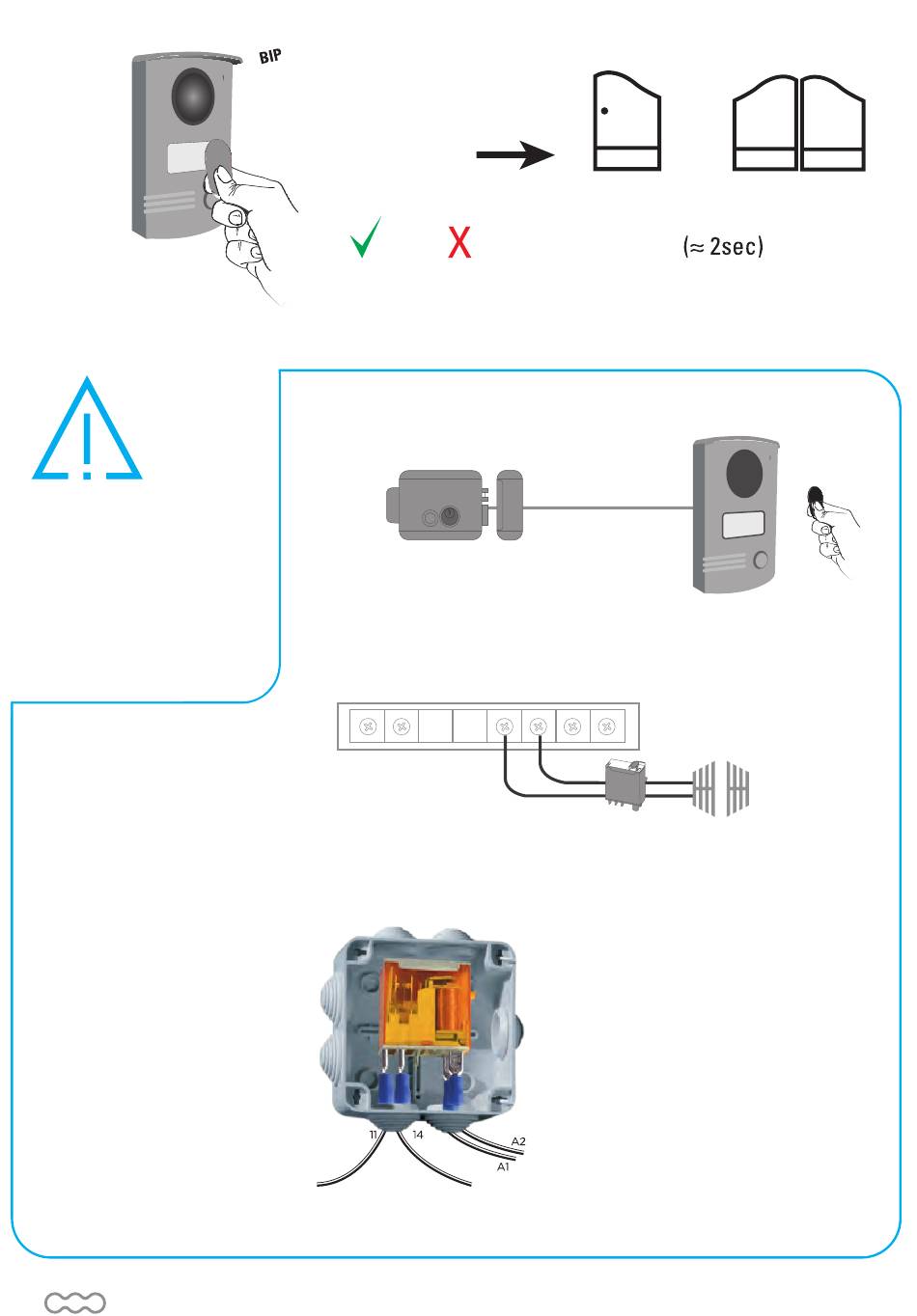

D7- Unlocking
The tag should be
placed in front of
the nameplate.
Versions prior to
V2767G20MID (page 25)
(or batches prior to 705444)
require a 12V contact relay
to open the gate.
Focus on the 12V relay
22 EN
BIP BIP BIP
Tag not
registered
Electric lock opening via RFID tag.
Gate opening possible via relay 12V dry contact (AAA0009).
In this case, the electric lock button of the monitor drives the gate opening.
Enter the cables in the cable gland
and connect your automation.
Electric lock or gate
OR
LK+ LK-
-
+
Relay 12V dry contact
(AAA0009)
Insert & weld the cables
to the thimbles.
Insert & connect the interphone cables
in the cable gland.
OR
Opening choice
