RDL4G-LED
INSTALLATION INSTRUCTIONS
ELECTRICAL SHOCK HAZARD
WARNING
Disconnect the Electrical supply power at the service panel (fuse or circuit breaker box). Failure to do so could result in serious
injury or death. Only qualified electricians should install this fixture and the installation MUST conform to the Canadian
Electrical Code Part I and all local codes and ordinances. Ensure that only proper tools, materials, and equipment are used to
complete the installation.
SAFETY
•
Proper grounding is required to ensure personal safety.
•
Fixture should be mounted in locations where unauthorized personnel will not readily subject it to tampering.
•
Do not use this equipment for anything other than its intended purpose.
•
Servicing this equipment should be performed by qualified service personnel.
•
Save these instructions.
•
Min 90°C supply conductor.
TOOLS REQUIRED
•
Philip screwdriver/ Drill tool (optional)

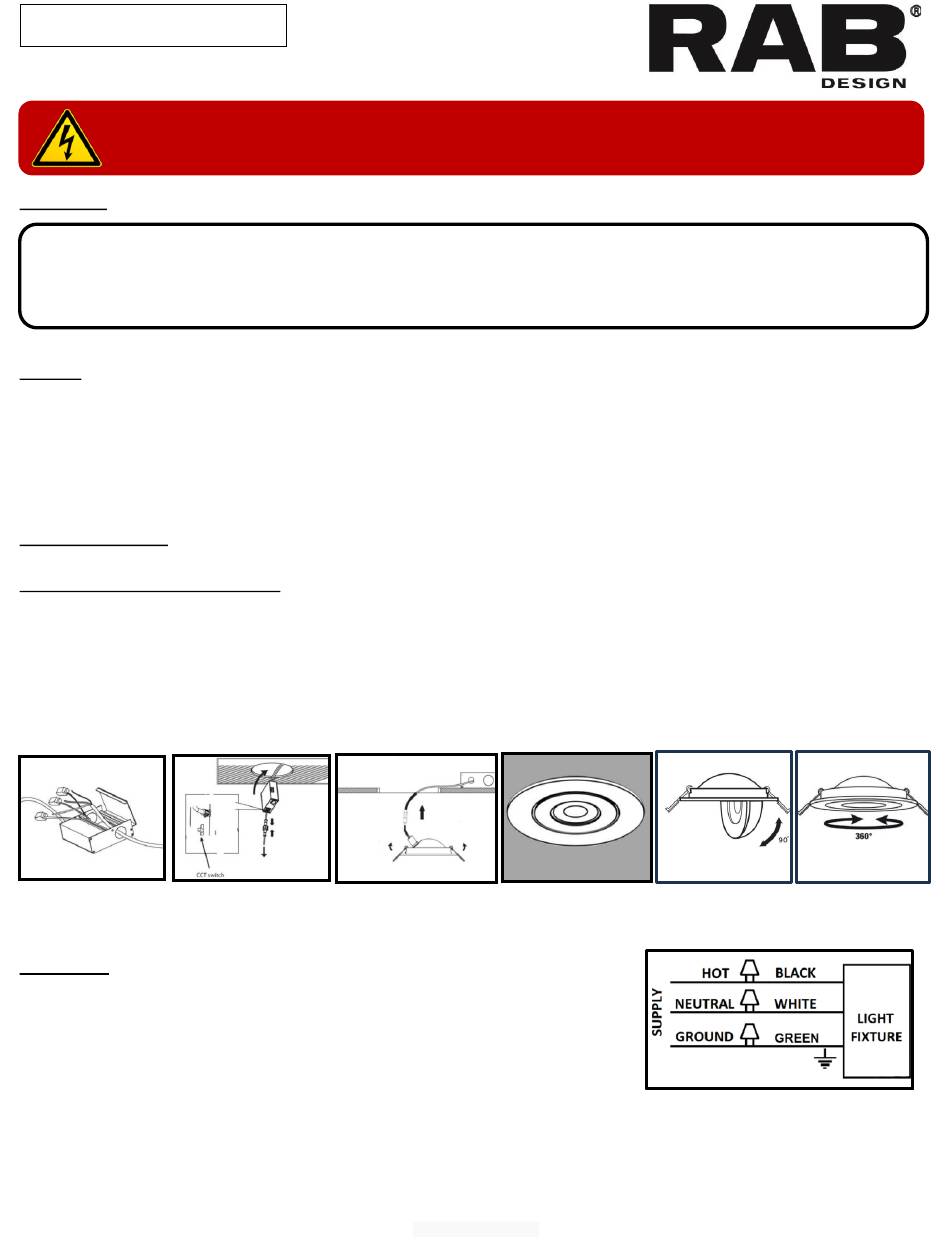

RECESS MOUNT INSTALLATION
1. Cut ceiling hole according to fixture outside diameter (108mm/4.25in).
2. Pull the junction box cover to open and remove a knockout for wiring. Wire inside the junction box according to the wiring
diagram (wire connectors provided). [1]
3. Ensure connection between fixture and junction box. Adjust CCT using the CCT selectable switch on the junction box
(default setting is 2700K). Secure the junction box into the ceiling. [2]
4. Push the mounting clips of the fixture upward, insert it into the ceiling and release the clips. [3]
5. Once the fixture is installed, rotate the head as needed to any desired direction. [4] [5] [6]
1
WIRING
•
Ensure power is off from the electrical panel prior to wiring.
•
Connect fixture GROUND (green) wire to power supply GROUND (green) wire.
•
Connect fixture WHITE wire to power supply NEUTRAL wire.
•
Connect fixture BLACK wire to power supply LINE wire
RAB DESIGN LIGHTING INC.
3
2
RDL4G_IN_2024_06
READ, UNDERSTAND
before installing the equipment.
4
FOLLOW
, and these instructions
5
6
