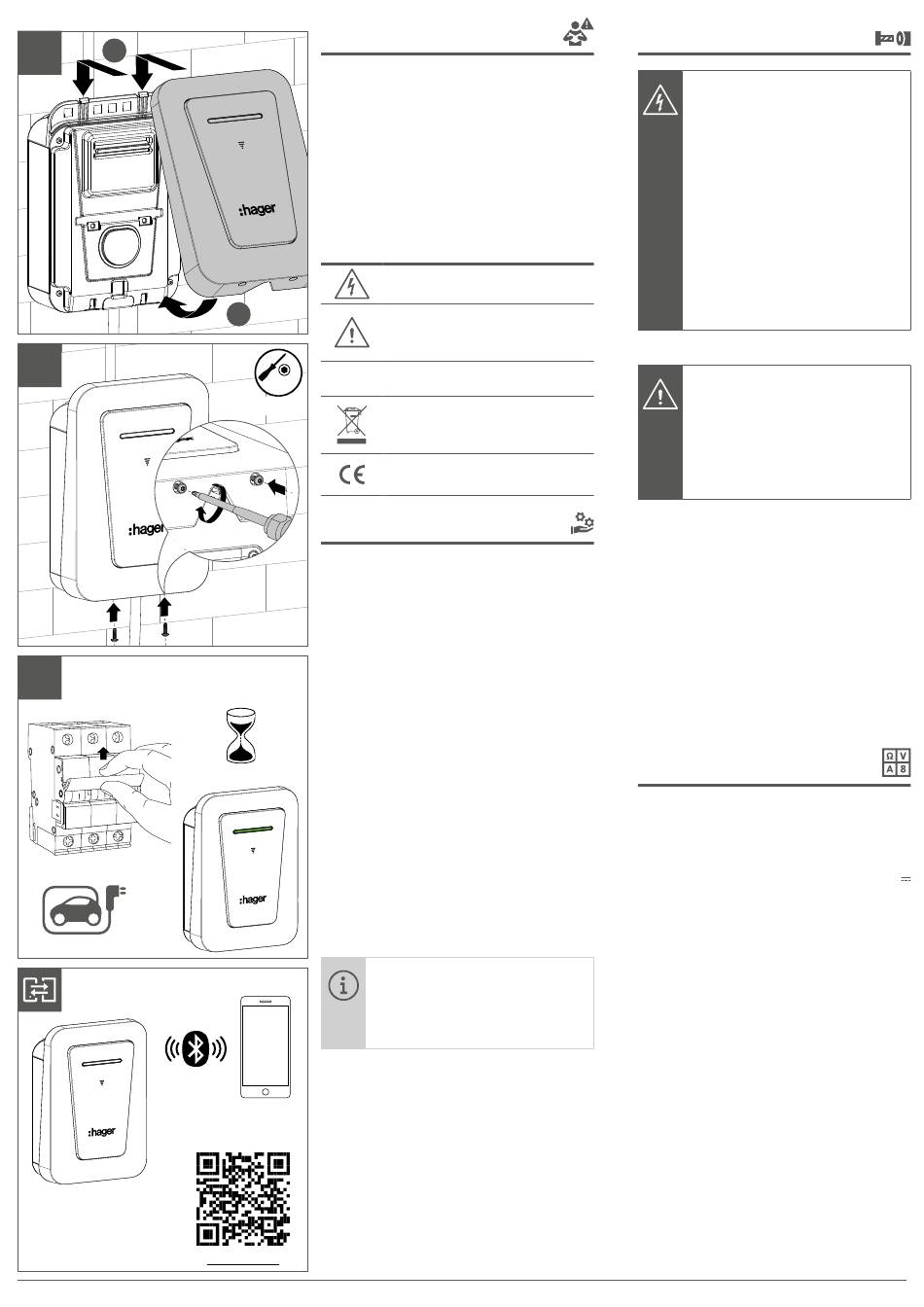

07
A
PE
L1 L2 L3
N
08
PE
L1 L2 L3
N
09
02
Safety instructions
z
Electrical devices must only be installed
and assembled by a qualified electrician
in accordance with the relevant installa-
tion standards, guidelines, regulations,
directives, safety and accident prevention
directives of the country.
Failure to comply with these installation
instructions may result in damage to the
device, fire or other dangers.
Symbol
B
s
T25
3,5 Nm
Function
The XVA205 card (TIC and P1 RF) is a gate-
way that enables the exchange of meter
data between an electronic energy meter of
the previous or new generation and a Hager
brand charging station.
This card receives electrical consumption
data from the electronic meter in real time and
transmits it to the charging station controller.
10 s
This controls the dynamic charging of the
vehicle by adjusting the vehicle's charging
current according to household consumption.
Correct use
− Installation in a charging station for
electric vehicles of type XVR107Cxx,
XVL122Cxx, XVL122Sxx and XVR111Cxx,
XVR111Sxx, XVR107Sxx.
− Communication with a new generation
meter or an electronic meter with a wire-
less TIC output
− Communication with a meter via the P1
gateway
For commissioning, please
download the Hager Charge
app and follow the instructions
in the app.
Hager Charge
Meaning
Danger: Risk of electric shock!
Note: Symbol on the device. Further
information can be found in these
instructions.
Direct current
Correct Disposal of this product
(Waste Electrical & Electronic
Equipment).
Applies to the whole of Europe and
Switzerland
Installation
Danger
Electric shock when live parts
are touched!
An electric shock can lead to
death!
•
Isolate all power before work-
ing on the device and cover
any live parts in the area!
•
Pay attention to all circuit
breakers and circuit breakers
that supply potentially hazard-
ous voltages.
Precautionary measures during installation
Caution
Electronic components such as
this card can be damaged by
electrostatic discharge (ESD)
when removed from the pack-
aging.
To insert this card correctly, please proceed
as follows:
•
Only hold the edges of the card to avoid
touching sensitive components.
•
Wear an anti-static strap when handling
the card to prevent damage. If no an-
ti-static tape is available, regularly touch
an earthed metal surface before installing
the PCB to keep static electricity away
from the body.
•
Store the card in the ESD packaging or
on an antistatic surface as long as it is not
installed.
Technical specifications
Communication:
By wireless connection (RF) from an electronic
meter that has a wireless TIC output or is con-
nected to a P1 gateway.
Electrical properties:
Supply voltage: ...........................................12 V
(supplied by the charging station)
Consumption: ............................................. 20 mA
Radio frequency (RF)
Radio frequency ....................... 868 ... 868.6 MHz
Transmission power .......................... max. 25 mW
Receiver category................................................2
Radio transmission range (free field) ...........100 m
Environmental conditions:
Operating temperature: ............. -25 °C ... + 70 °C
Storage temperature: ................. -25 °C ... + 70 °C
Degree of contamination: ....................................2
Overvoltage category: ........................................III
Maximum operating height: .......................2000 m
Surge voltage: ................................................4 kV
Simplified EU declaration of conformity
Hager Energy GmbH hereby declares that the
radio system type XVA205 is in compliance
with the directive 2014/53/EU. The complete
text of the EU declaration of conformity is
available at the following Internet address:
hager.com.
