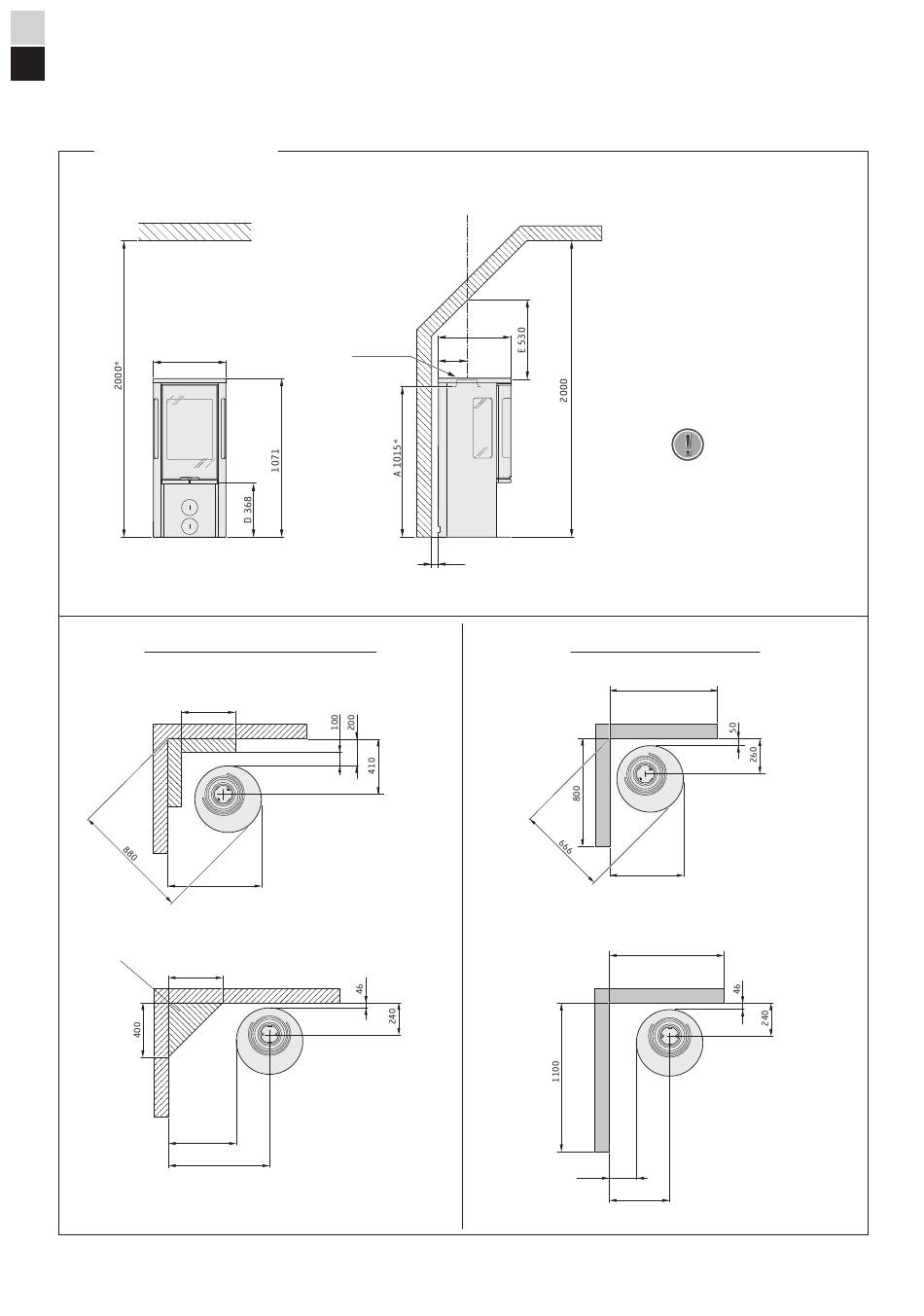

Installation distances
C556 / C556G TL
Combustible roof
495
INSTALLATION AGAINST COMBUSTIBLE WALLS
Permitted area for
combustible parts
of the building
400
* If the stove is placed on a hearth plate made of glass for example (accessory), the height from the floor is affected by a distance corresponding to the thickness of the hearth plate, for a free standing
glass hearth plate this is 10 mm.
** To prevent discolouration of painted non-flammable walls we recommend that the same side distance as to combustible walls is used.
Ø150
400
Combustible wall
695
Combustible wall
500
750
495
196
46
INSTALLATION AGAINST FIREWALLS
Fire-retardant wall of
brick or concrete
200**
The minimum distance in front of
the stove opening to combustible
parts of the building or interior
decoration must be at least 1 m.
A = height from floor to chimney
connection upwards
D = height from floor to lower edge
of hatch
E = minimum height to sloped
ceiling from the centre of the
chimney
!
A separate glass hearth
plate (accessory)
increases the connection
height to the chimney by
10 mm.
800
Fire-retardant wall of
brick or concrete
545
850
450**
