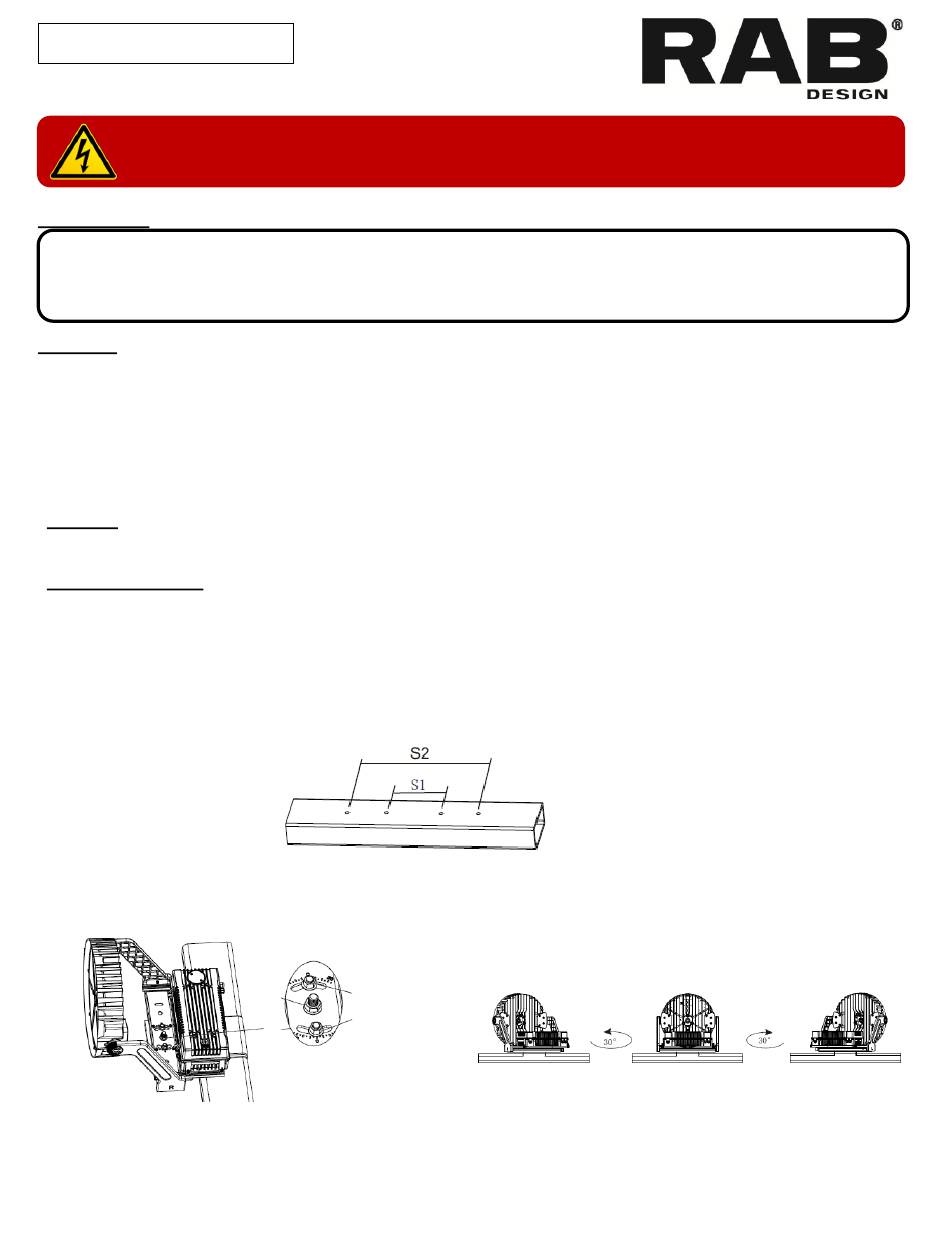

SFL3/4-LED
INSTALLATION INSTRUCTIONS
ELECTRICAL SHOCK HAZARD
WARNING
Disconnect the Electrical supply power at the service panel (fuse or circuit breaker box). Failure to do so could result in serious
injury or death. Only qualified electricians should install this fixture and the installation MUST conform to the Canadian
Electrical Code Part I and all local codes and ordinances. Ensure that only proper tools, materials, and equipment are used to
complete the installation.
SAFETY
•
Proper grounding is required to ensure personal safety.
•
Fixture should be mounted in locations where unauthorized personnel will not readily subject it to tampering.
•
Do not use this equipment for anything other than its intended purpose.
•
Servicing this equipment should be performed by qualified service personnel.
•
Save these instructions.
•
MIN 90 °C SUPPLY CONDUCTOR
TOOLS
•
Allen key set, open-end wrench, Phillip screwdriver, Drilling tool (optional)
INSTALLATION
YOKE MOUNT:
Note: Fixture comes with yoke bracket installed.
1. Drill the holes if required on the mounting surface and install the fixture with necessary hardware.
S1: 254mm/10in, S2: 345mm/13.58in
The orientation can be adjusted by loosening the bolts. Note: Adjustable angle is 30° in either direction in
2.
increments of 5°, follow the orientation angle in the lighting layout if applicable.
RAB Design Lighting inc.
READ, UNDERSTAND
before installing the equipment.
2024 08 26
FOLLOW
, and
these instructions
Page 1 of 8
