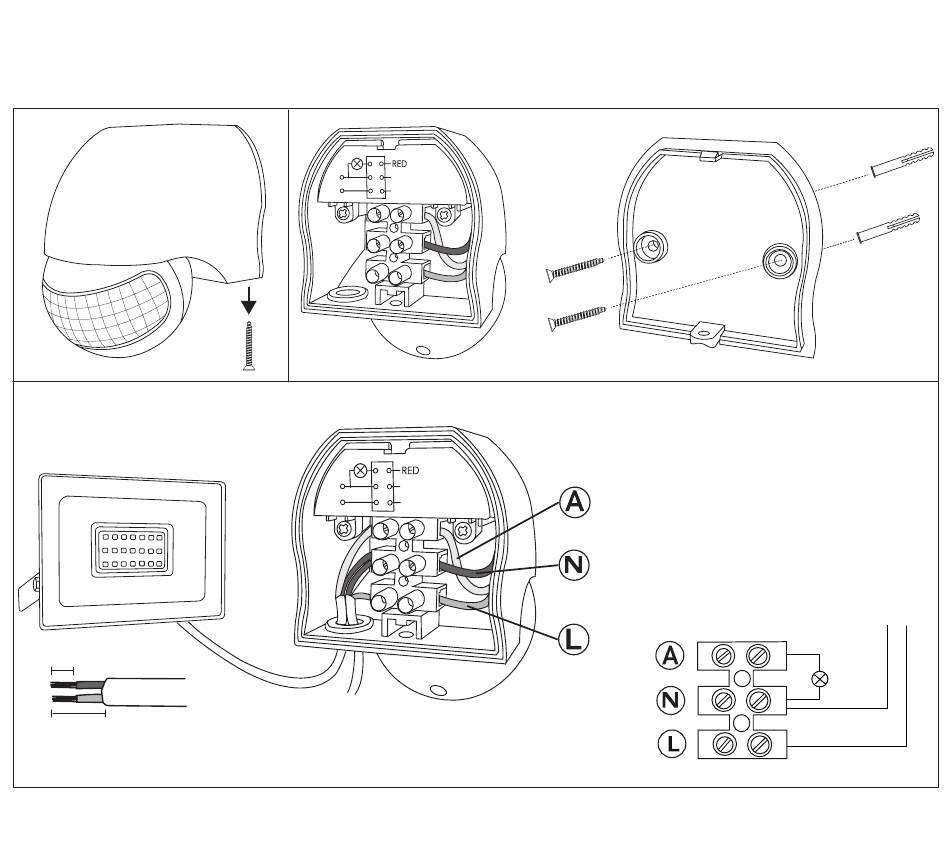

Connect the lamp to a Class II light fixture (not to be connected to earth).
• Shut off the power at your electrical board,
• Remove your existing light fixture if necessary.
1
3
Automatic function
5mm
10mm
H05RN-F 2G1mm2
10
2
LOAD
A
N
BLUE/GREEN
N
L
L
BROWN/BLACK
LOAD
A
N
N
BLUE/GREEN
L
L
BROWN/BLACK
230V
With this connection, the
light fixture is controlled by
the detector. All motion
within the area covered by
the detector triggers the
light.
red
rouge
blue
bleu
marron
brown
220/240V
lamp
lampe
