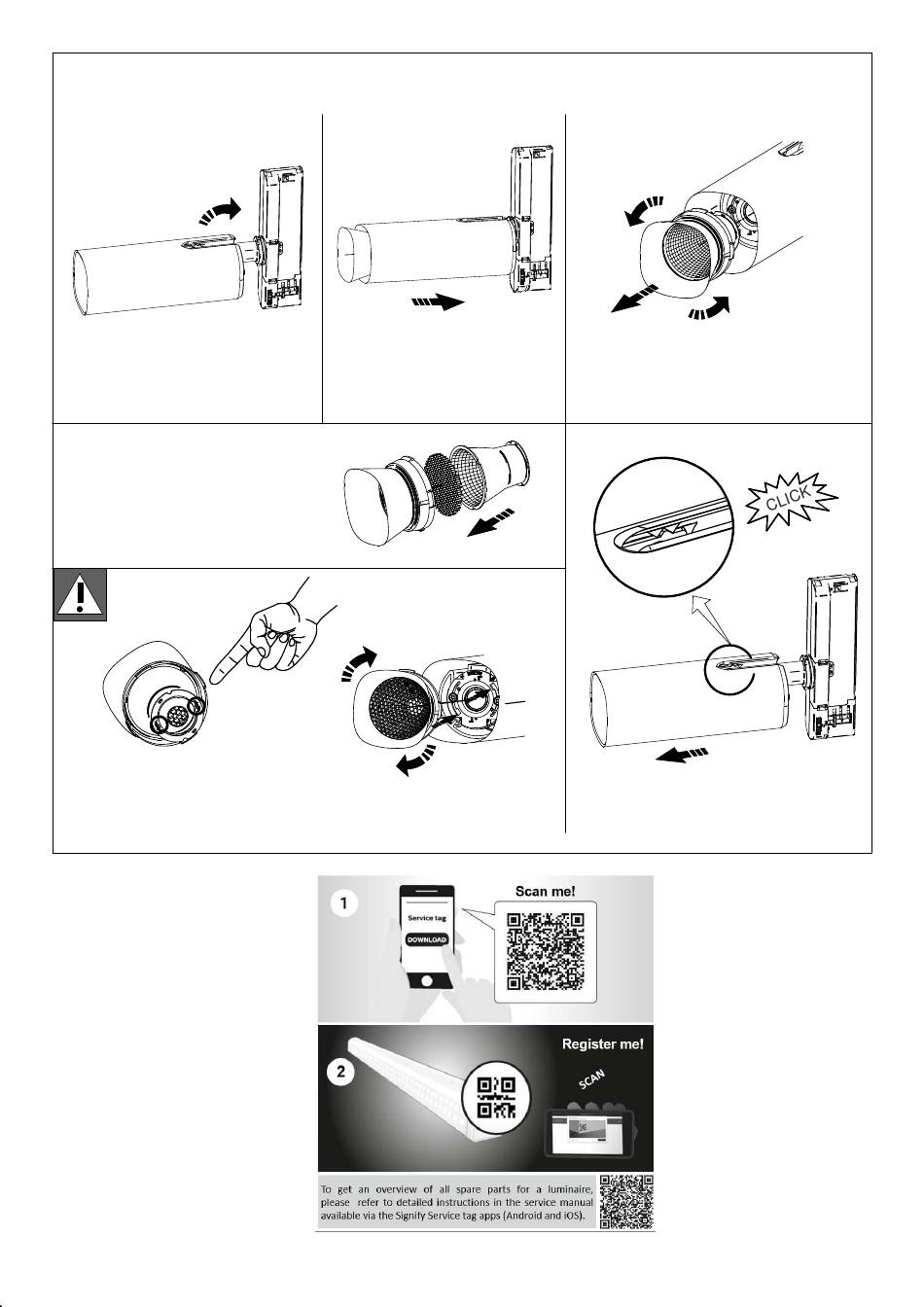

Glare Accessory Installation - Honeycomb
1. Turn projector head
parallel to hinge
4. Assemble optical part
(Reflector or Collimator)
with Honeycomb and
Honeycomb ring
5. Assemble with
luminaire.
2. Shift housing back
Watch out for the positioning
of the optical part and
the LED holder
Turn clockwise
4/8
3. Remove front ring and
optical part by rotating it
counter-clockwise.
6. Shift housing to original
position
