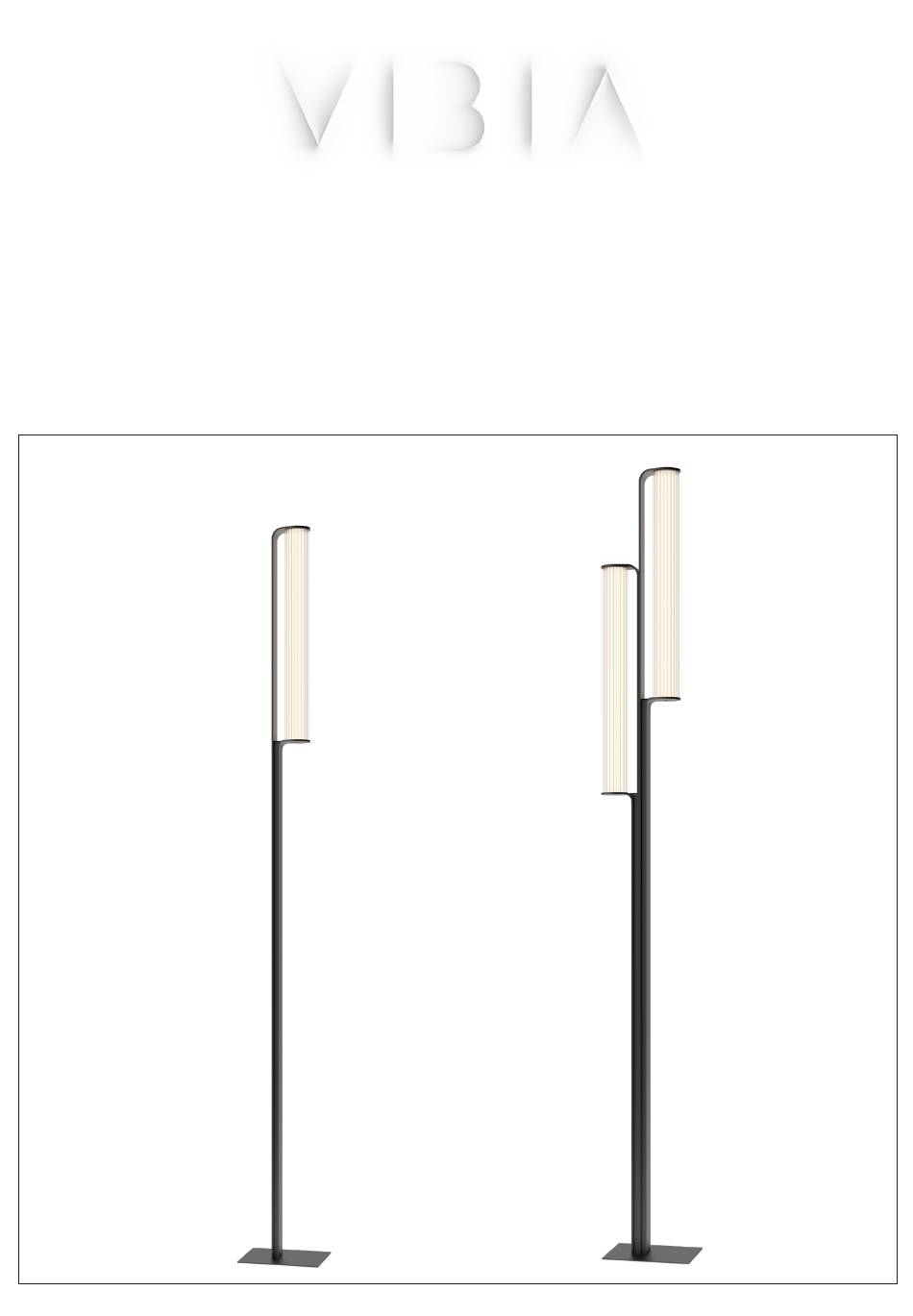

- Page 1 Assembly instructions / Instructions de montage Class Design by Sebastian Herkner Version U01...
- Page 2 - Do not disassemble, modify or try to repair this fitting. In order fixation les mieux adaptés au support. to get technical assistance contact VIBIA. Any change or - Nous vous recommandons de lire le manuel avant de modification to the light fitting can null the manufacturer’s commencer l'installation du luminaire.
- Page 3 Index Step 1 Product Spec Sheet Step 2 Supplied Materials Step 3 Installation Preparation Step 4 Electrical Connection Step 5 Product Assembly...
- Page 4 Multi-volt 50/60 Hz 2 x LED STRIP 8.6W 350mA. Net Weight / Poids net 56 lbs. Multi-volt IP65 Wet Location Class II. Double Dust-tight product. This lamp can be used Voltage range. Alternating current. -or reinforced- Protected against water in locations subject to Gamme de tension.
- Page 5 Step 2/5 Supplied Materials Supplied material / Matériel fourni 2810 2815 1 un. 1 un. 1. Allen key / Clé Allen 1 un. 1 un. 2. Lighting fixture / Structure du luminaire 1 un. 1 un. 3. Inset casing / Boîte d'encastrement 4.
- Page 6 Step 3/5 Installation Preparation 1/32'' 17 cm 1/4'' 1/3'' ANCHOR BOLT OPTION CONCRETE SCREWS OPTION 1/4'' 1/4'' - Mains power cable - Câble de votre installation électrique 1/3'' 1/3'' 1/3'' - Gravel for drainage - Gravier de drainage - Concrete footing - Semelle en béton IMPORTANT NOTICE: IMPORTANT:...
- Page 7 Step 3/5 Installation Preparation 7/16...
- Page 8 Step 3/5 Installation Preparation ANCHOR BOLT OPTION - Holes for drainage - Orifice d'évacuation - Nuts (not supplied) - Écrou (non fournies) CONCRETE SCREWS OPTION - Holes for drainage - Orifice d'évacuation - Screws (not supplied) - Vis (non fournies) 8/16...
- Page 9 Step 3/5 Installation Preparation ref. 2810 ref. 2815 ref. 2815 ref. 2810 9/16...
- Page 10 Step 3/5 Installation Preparation ref. 2815 ref. 2810 10/16...
- Page 11 Step 4/5 Electrical Connection - Electric cable (not supplied) - Câble électrique (non fournies) 120V Max. 30 ft. of cable OPTION A OPTION B TRIAC CONTROL 0-10V CONTROL Refs.: Refs.: 2810-11/12 2810-11/14 2815-11/12 2815-11/14 11/16...
- Page 12 Step 4/5 Electrical Connection 4.1A TRIAC DIMMING SYSTEM CONNECTION Refs.: 4.2A 2810-11/14 2815-11/14 - Only for product references ending in 4 - Uniquement pour les produits terminés en 4 1/4" 13/16" POLES 12/16...
- Page 13 Step 4/5 Electrical Connection 4.1B 0-10V DIMMING SYSTEM CONNECTION Refs.: 4.2B 2810-11/12 2815-11/12 - Only for product references ending in 2 - Uniquement pour les produits terminés en 2 1/4" 13/16" POLES 13/16...
- Page 14 Step 5/5 Product Assembly 14/16...
- Page 15 Step 5/5 Product Assembly 15/16...
- Page 16 In case of malfunction or damage, please contact the retailer who sold the lamp. En cas d’incident ou de non fonctionnement du luminaire, con- tactez directement l’établissement où vous l’avez acheté. VIBIA. INC. VASELINE - VASELINA - WAZELINE 272 Fernwood Ave. 7 gr.
