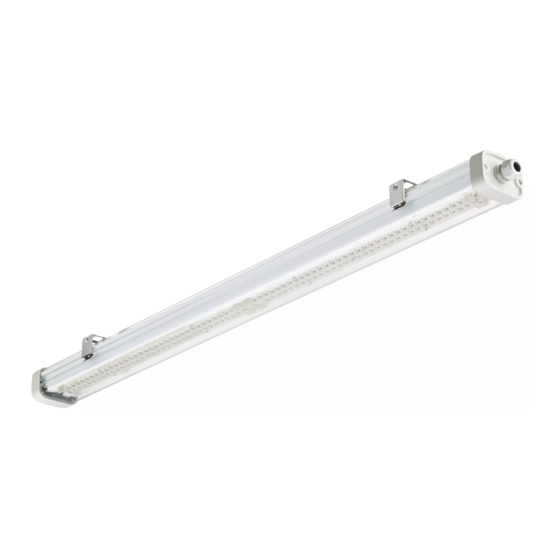

Philips WT492C Mode D'emploi
  1. Manuels
  2. Marques
  3. Philips Manuels
  4. Équipement d'éclairage
  5. WT492C
  6. Mode d'emploi

Philips WT492C Mode D'emploi

Masquer les pouces
1
2
3
4
5
6
7
8

Liens rapides

Télécharger ce manuel
Pacific LED gen5
ATEX 2/22
WT492C
System flux [lm] NB-
Luminare type
Driver type
HRO, WB, VWB/ PCO/
O
WT490C L700
23S
2300/ 2100/ 2200
35S
3500/ 3200/ 3400
WT490C L1200/
42S
4200/ 3800/ 4000
L1600
64S
6400/ 5800/ 6200
80S
8000/ 7200/ 7600
WT490C L1800
100S
10000/ 9200/ 9600
*) Lumen output provided for 4000K, 6500K options,
in 3000K lumen output will be on average approx.7% less .
KDB Ex.22.015X
II 3G Ex ec IIC T5 Gc
II 3D Ex tc IIIC T65°C Dc
Ta -25°C...45°C
Uwaga - Nie otwierać pod napięciem
Uwaga -zagrożenie ładunkami elektrostatycznymi– patrz instrukcja
Caution- Do not open when energized
Caution-Risk of electrostatic discharge- see manual
442710449330
© 02/2023, Signify Holding All rights reserved
indoor
220V
LEDs
240V
min. 60 cm
Max ambient
P(W)
temperature
35W PSU
15,2
35W PSD
14,4
35W PSU
22,0
35W PSD
23,0
T45
75W PSU
25,5
35W PSD
26,0
Light source of energy effecienty class: C
75W PSU
40,0
60W PSD
39,5
75W PSU
48,5
60W PSD
48,5
T45
75W PSU
62,0
60W PSD
62,0
Luminaire type
WT492C L700 (TCW5)
WT492C L1200 (TCW5)
WT492C L1600 (TCW5)
WT492C L1800 (TCW5)
Luminaire type
WT492C L1200 TW
WT492C L1600 TW
WT492C L1800 TW
50Hz
60Hz
Nie otwierać zagrożenie ładunkami elektrostatycznymi. Uwaga-zagrożenie ładunkami elektrostatycznymi-patrz instrukcje.
Korpus oprawy wykonany z materiału niemetalowego - zagrożenie ładunkami elektrostatycznymi.
Czyszczenie opraw jedynie za pomocą wilgotnej szmatki z dodatkiem środka antyelektrostatycznego.
Nie dopuścić do gromadzenia pyłu na powierzchni oprawy.
Do not open, risk of electrostatic discharge! Caution -Risk of electrostatic discharge- see manual The housing is made of
non-metallic material - the risk of electrostatic discharge. Cleaning luminaires only with a damp cloth containing antistatic
agent. Prevent the accumulation of dust on the surface of the housing.
WT492C / TW
96
A
B
C
A [mm]
B [mm]
C [mm]
360 - 260
660
686
920 - 720
1221
1248
1300- 1100
1601
1628
1480 - 1080
1783
1810
A
B
D
A [mm]
B [mm]
D [mm]
920 - 720
1224
1278
1300 - 1100
1601
1654
1480 - 1080
1785
1838
1/8
Max.
IP66
45°C
Min.
-25°C
UK
LIFETIME
D
HRS
CA
100k L80
WT492C TCW5
96
max
1,6
2,4
3,0
3,2
max
2,8
3,4
3,6
Printed in Poland
Data subject to change without notice
Keep for future reference: www.philips.com/lighting
10
PH1
27
IK08
loading

Manuels Connexes pour Philips WT492C

Sommaire des Matières pour Philips WT492C

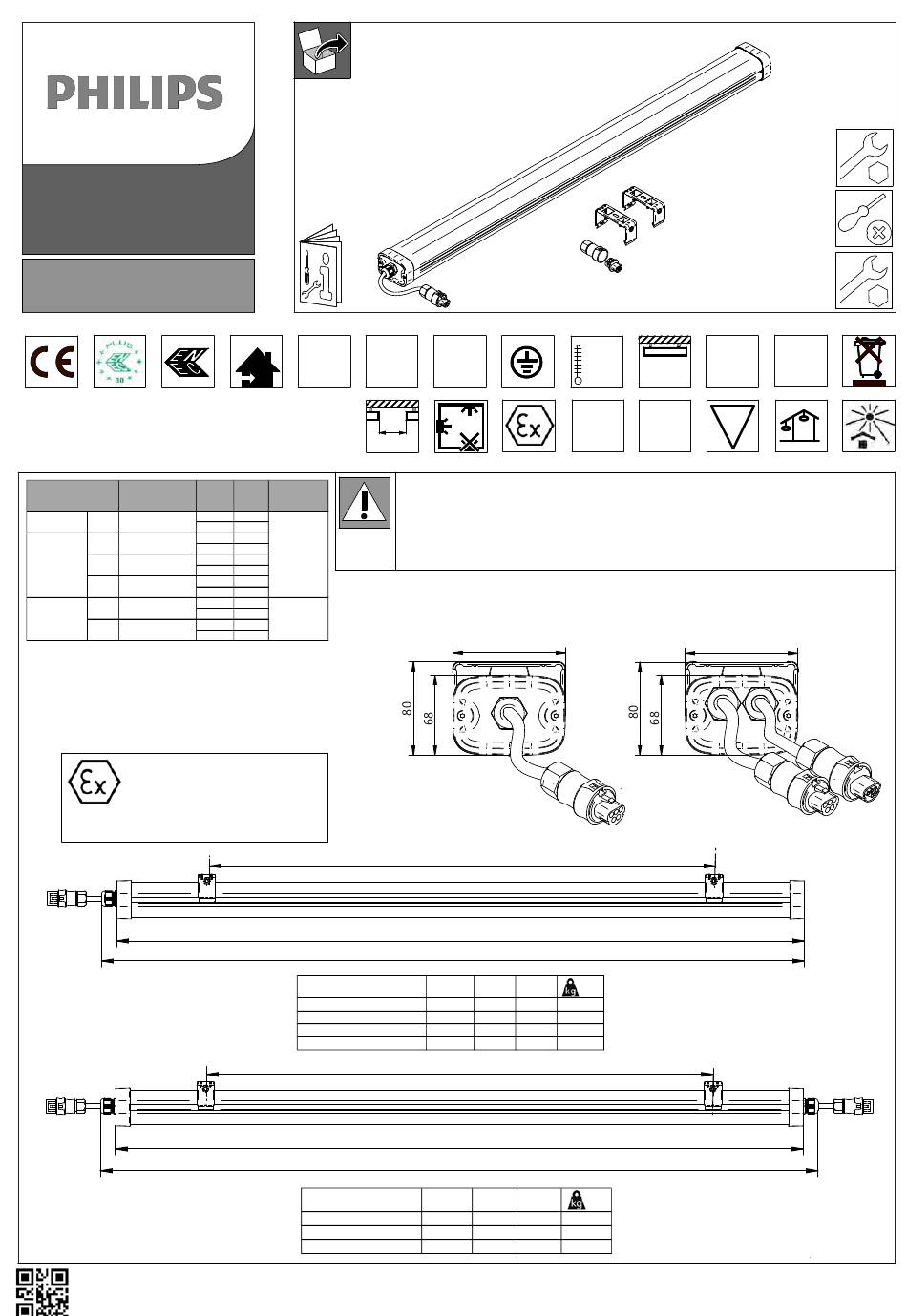

  • Page 1 1224 1278 WT492C L1600 TW 1300 - 1100 1601 1654 WT492C L1800 TW 1480 - 1080 1785 1838 Printed in Poland 442710449330 Data subject to change without notice © 02/2023, Signify Holding All rights reserved Keep for future reference: www.philips.com/lighting...
  • Page 2 For wall mounting applications in vertical and/or horizontal positions its required to use special set of screws and nuts (WT470Z SCREW-VP SET (10PCS), EOC: 871869638509800, 12NC: 910925864392 supplied as accessories). Screw WT492C WT492C TW Wieland connector (female) L = 315 mm Wieland connector (male and female) included in the box.
  • Page 3 EN IEC 60079-0:2018; EN IEC 60079-7:2015; EN IEC 60079-7:2015/A1:2018 Urządzenie spełnia wymagania dla niskiego narażenia na udary mechaniczne zgodnie z normą PN-EN 60079-31:2014 Luminaire WT492C constructed in accordance with the requirements of the following standards: EN IEC 60079-0:2018; EN IEC 60079-7:2015; EN IEC 60079-7:2015/A1:2018 The device meets the requirements for low exposure to mechanical shock according to EN 60079-31:2014 Wszystkie złącza oprawy TC, TW podczas pracy muszą...

  • Page 4: Maintenance Instructions

    Inrush current I mains (A) I max I nom Time ( µs Tref TYPE DRIVER Leak current [mA rms] Imax [A] 17,0 23,1 25,1 19,0 21,0 25,0 22,5 10,0 Tref [μs] 35,9 MCB-16A CABLE 1.5mm2 / TI3 [EN 50525-1] Section [mm B-6A B-10A C-10A...
  • Page 6 GB - Disconnect before servicing DK - Frakobl, før service IT - Toglieretensioneprima di fare manutencione FR - Mettrehors tension avantintervention NO - Koble fra før service ES - Desconectarantes de manipular DE - Offnennurspannungsfrei FI - Irrota pistoke ennen huoltoa SE - Brytströmmenförelampbyte NL - Stroom afsluiten voor onderhoud CZ - Před servisem se odpojte...
  • Page 7 Storage, installation, use, operation and maintenance of the products needs to be performed exactly according the instructions in this manual and/or other instructions as may be provided by us to guarantee safe use of the product over its entire lifetime. Failure to adhere to these instructions will invalidate your entitlement to warranty.
  • Page 8 Ten produkt zawiera źródło światła o klasie efektywności energetycznej: Ta izdelek vsebuje svetlobni vir razreda energijske učinkovitosti: glej patrz tabela lub etykieta. tabelo ali nalepko. Printed in Poland 442710449330 Data subject to change without notice © 02/2023, Signify Holding All rights reserved Keep for future reference: www.philips.com/lighting...
