APPLICATION
This kit mounts and connects two (2) 12V 33Ah batteries in TECHNA
BG24DC series barrier gate operators. This kit is compatible with two (2)
12V 33Ah batteries, or part no. A12330SGLPK and LiftMaster Solar Kits that
include 33Ah batteries.
TASKS
Disconnect all power to the operator.

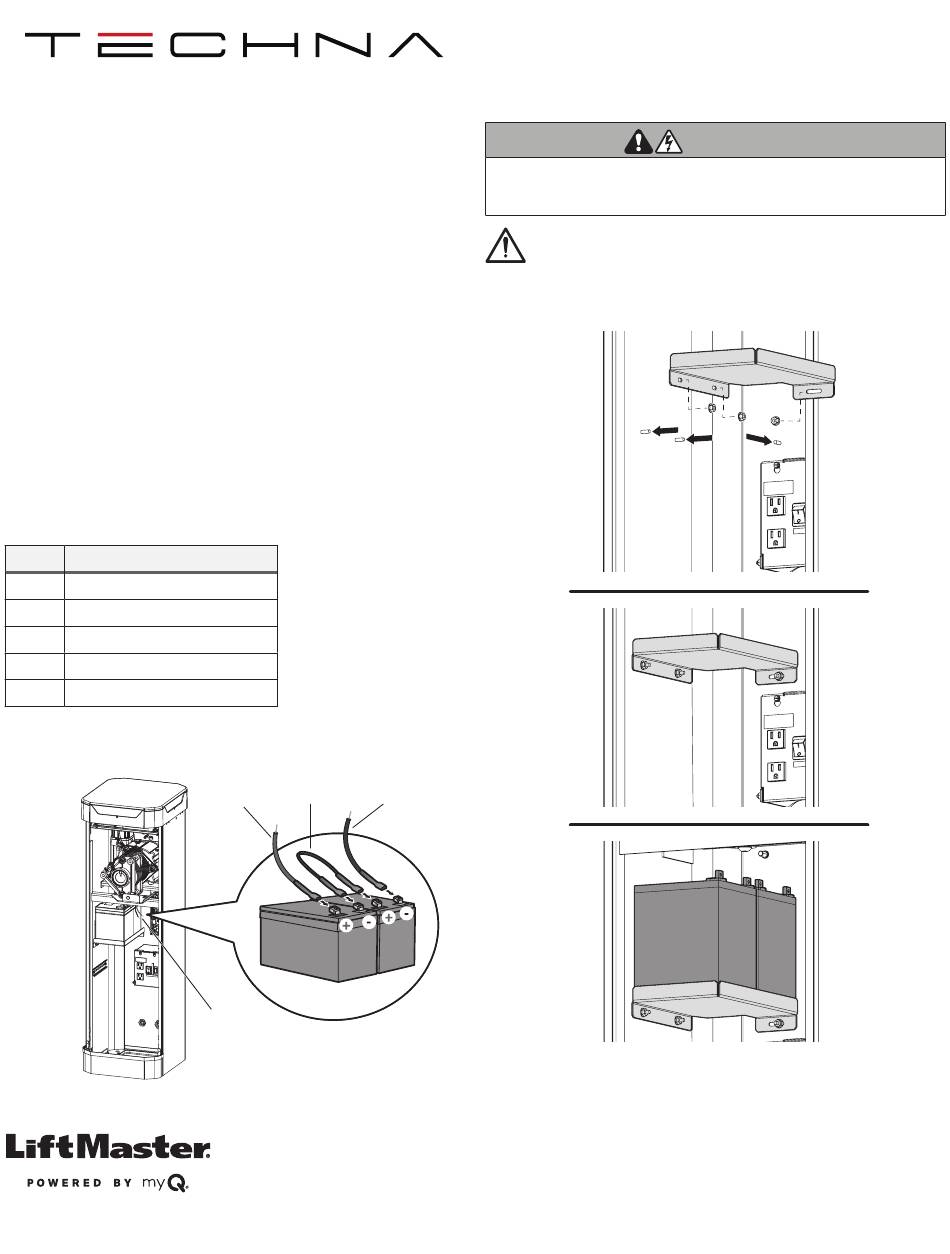

INSTALL BATTERY TRAY
1. Mount the battery tray with the hardware provided (figure 1).
2. Place and mount the battery to the tray (figure 2).
CONNECT BATTERIES IN SERIES
1. Connect white jumper wire to jump inside positive terminal on one battery
to the inside negative terminal on the other battery.
2. Use the red and black wires to connect between the remaining outside
battery terminals on each battery (see figure 4).
3. Restore power to operator using power switch located on junction box.
PACKING LIST
Qty. Description
1 Red 33Ah Harness
1 Black 33Ah Harness
1 White 33Ah Battery Jumper Harness
1 Battery Tray
3 Hex Nuts
Figure 4
114-6008-000
White Jumper
Wire
Black Wire
Red Wire
Battery
Wiring
To reduce the risk of INJURY or DEATH, turn both the AC Power and
Battery switches to OFF position BEFORE servicing operator. ALL electrical
connections MUST be made by a qualified individual.
WARNING: This product can expose you to chemicals including
lead, which are known to the State of California to cause cancer or
birth defects or other reproductive harm. For more information go
to www.P65Warnings.ca.gov.
Figure 1
Figure 2
Figure 3
LiftMaster and the LiftMaster logo are trademarks, service marks, and/or
registered trademarks of The Chamberlain Group LLC. All rights reserved.
The Chamberlain Group LLC, 300 Windsor Drive, Oak Brook, IL, 60523, United States
1
TRAY33AH
BATTERY TRAY
INSTRUCTIONS
WARNING
