TP-Link Omada IES210GPP Guide D'installation

Installation Guide
Guía de Instalación
Guide d'installation
Guia de Instalação
Industrial Easy Managed Switch
The images may differ from the actual product.
For technical support, the user guide and more information, please visit https://support.omadanetworks.com/,
or simply scan the QR code.

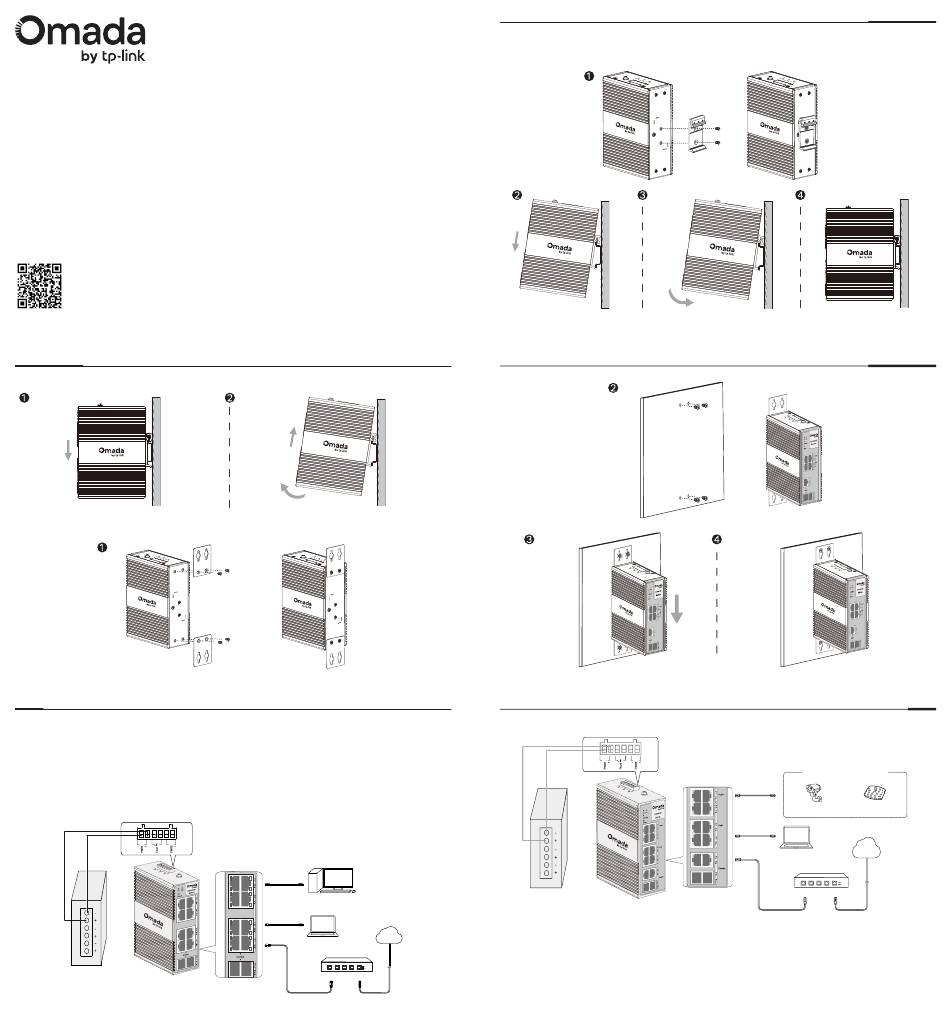

Mount the Switch
Removal from the DIN rail:
Option 2: Wall Mounting
English
*Mount your switch according to the diagrams in the opening chapter of this guide.
Connection
Note:
1. Keep the power off until everything is properly connected.
2. To avoid any device damage and bodily injury, connect the grounding stud to the grounding surface properly
before connecting devices.
3. The fault circuit will open when a relay warning event is triggered.
Connect Your Non-PoE Switch
DC Power Supply
7100000104 REV1.1.0 ©2025 TP-Link
PC
PC
Internet
Router/Gateway
LAN Port WAN Port
Mount Your Switch
Option 1: DIN-Rail Mounting
Connect Your PoE Switch
DC Power Supply
Note:
1. The PoE ports can also connect to non-PoE devices, but only transmit data.
2. The PoE ports shall not be used to charge lithium batteries or devices supplied by lithium batteries.
3. PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will
vary as a result of client limitations and environmental factors.
Mount the Switch
Mount the Switch
English
Powered Device (PD)
IP Camera AP
PC
Internet
Router/Gateway
LAN Port WAN Port
