Domocontrol 122
Telephone remote control
with voice guide
Installation guide

Technical specifications

• Power supply: 230 V +10% -15% 50/60 Hz
• Power consumption:
• Contacts: three 5A 250 V AC change-over switches
• Connection: tunnel terminals 4mm
• Operating temperature:
• Storage temperature:
• Relative humidity:

Dimensions

Mounting
"Analogue line equipment "
Declaration of conformity:
We, Flash SAS, 33 rue Saint Nicolas 67704 Saverne
Cedex, hereby declare under our own responsibility that
the products dealt with by these instructions satisfy all
essential demands linked to the R&TTE 1999/5/CE
Directive dated March 1999
The BA Controls Quality Manager/ 01-01

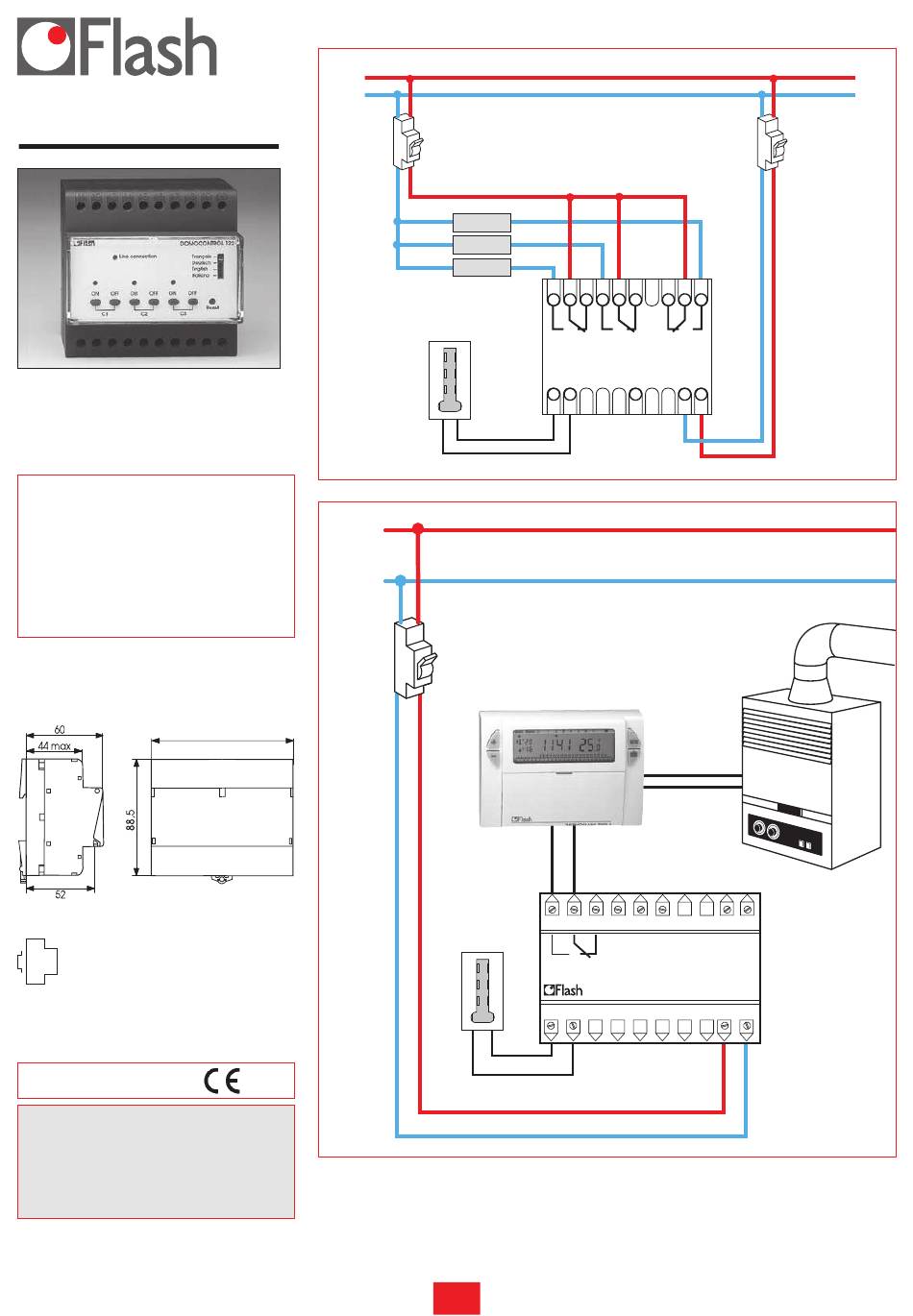

Installation diagram

L
N
L
20 mA maxi
N
2 maxi
- 10°C à +50°C
-20°C à +60°C
90% at 20°C
90
Telephone remote control of a heating boiler.
THERMOFLASH DIGI 2 controls the comfort and set-back temperatures. By closing
a contact on THERMOFLASH DIGI 2, DOMOCONTROL 122 allows to switch the
heating from automatic mode to frost protection (+ 6°C).
L O A D
L O A D
L O A D
11 12 13 14 15 16 17 18 19 20
C1
1 2 3 4 5 6 7 8 9 10
1 3
11 12 13 14 15 16 17 18 19 20
DOMOCONTROL 122
1
2 3
1 3
6
C2 C3
4 5 6 7 8 9 10
