WARNING: Power must be disconnected before installation and servicing,
cleaning, and other user maintenance. Failure to disconnect power creates risk
of fi re, electric shock, and serious bodily injury.
CAUTION: The Big Ass Fans product warranty will not cover equipment damage
or failure that is caused by improper installation or use.

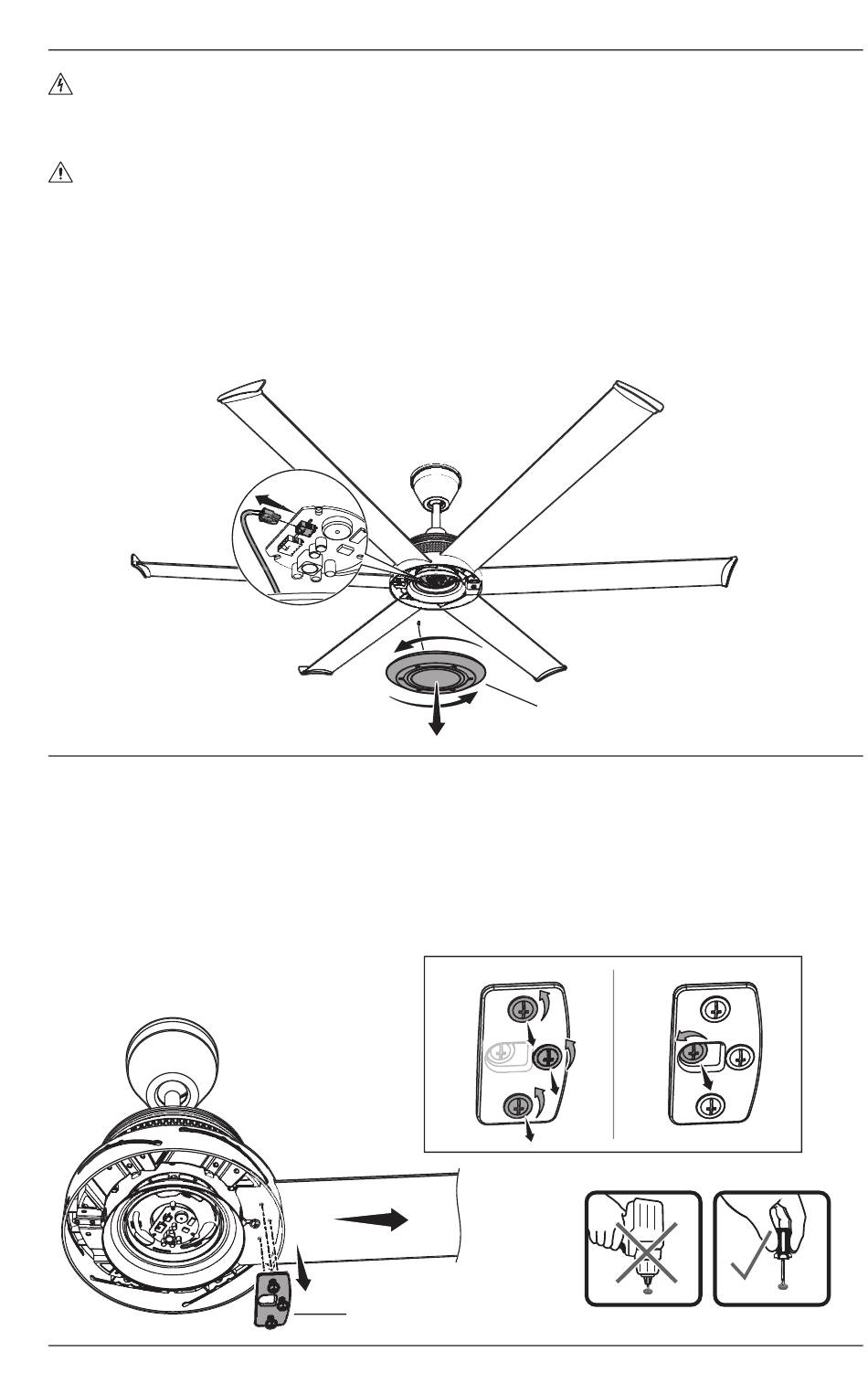

1. Remove light or lower cover
Remove light or lower cover from bottom of fan by twisting counterclockwise (Fig. 1).
Disconnect light wiring harness from "LED" receptacle on bottom of fan (Fig. 1).
Fig. 1
2. Remove old airfoils
Loosen the three screws on an airfoil retainer and remove retainer (Fig. 2). Loosen the
screw securing the airfoil to the fan hub and remove airfoil (Fig. 2). Repeat to remove
remaining airfoils. Remove each airfoil from the opposite side of the fan as the previous
airfoil to prevent the fan from tilting. Save airfoil retainers for reinstallation.
Fig. 2
AIRFOIL REPLACEMENT
Light Wiring
Harness
Airfoil Retainer
© 2024 DELTA T LLC. ALL RIGHTS RESERVED.
Light or Lower Cover
1
Do not use power tools.
2
