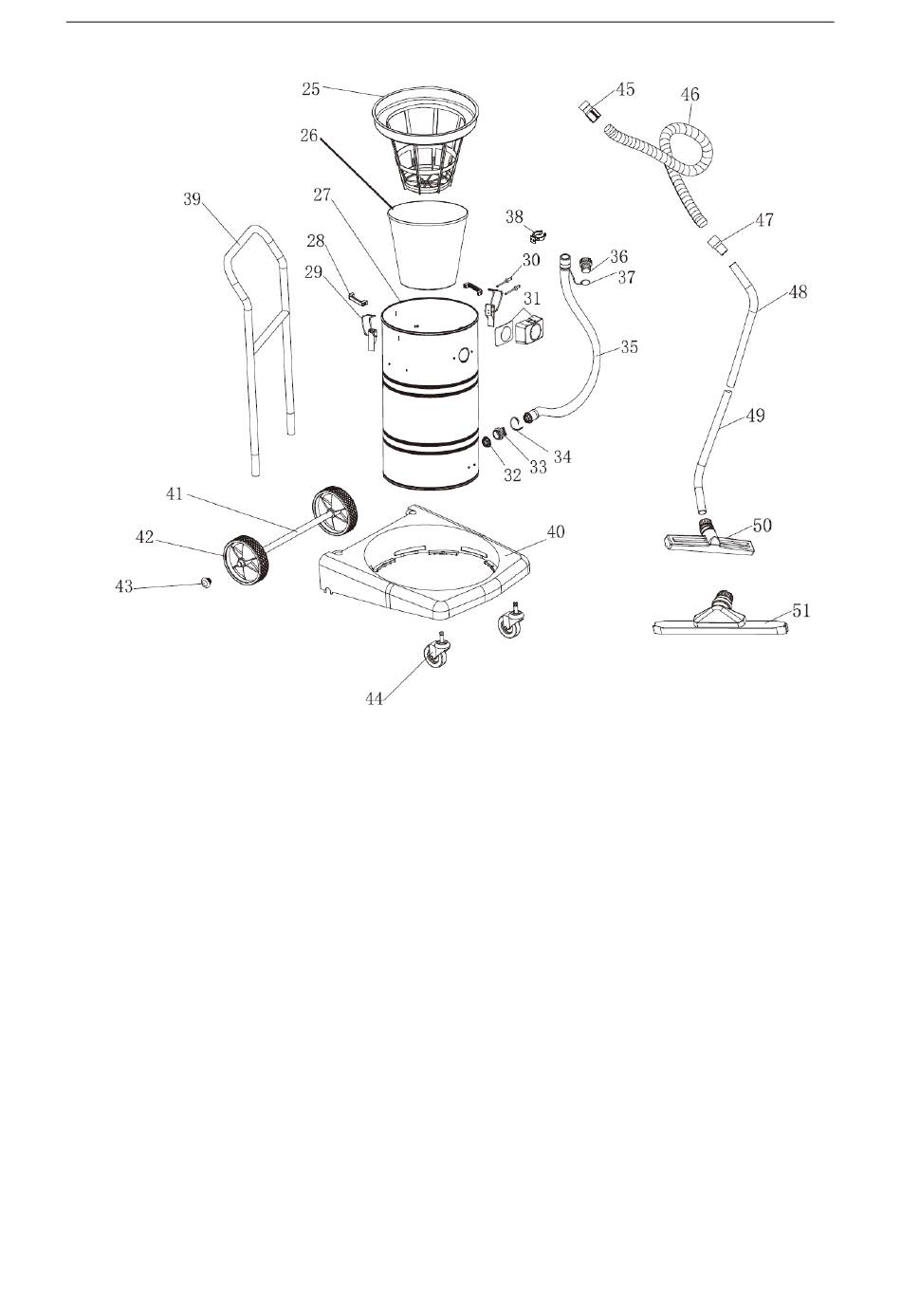

1. Handle
5. Bushing
9. Surface cover
13. Inner choke
sponge
17. Triangle pad
21. Buoy rack holder
25. Cloth filter apron
29. Tank buckles
assembly
33. Drain hose
connector
37. Drain hose double
aprons
41. Frame axle
45. Short connector
49. Metal tube B
EN
2. Top cover
6. Line holder
10. Surface cover seal 11. Upper choke
14. Motor apron
18. Motor base
22. Buoy cover
26. Cloth filter
30. Core extractor pin 31. Square connector
34. Hose clamp
38. Drain hose hook
42. Big rear wheel
46. Hose
50. Dry nozzle
assembly
3. Power switch
7. Circuit board
sponge
15. Motor
19. Base apron
23. Buoy
27. 80 litres tank
assembly
35. Drain hose
39. Armrest
43. Axle stopper
47. Long connector
51. Wet nozzle
assembly
4. Power cable
8. Surface cover
sponge
12. Motor choke
(black)
16. Base sponge
20. Holder seal
24. Buoy rack
28. Tank handles
32. Drain hose nut
36. Drain hose piston
40. Frame base
44. Frame front wheel
48. Metal tube A
