Quick Installation Guide
NEED TECH HELP?
810600366
www.cudy.com
support@cudy.com
www.cudy.com/download
Support: For technical support, the user guide and more
information, please visit: https://www.cudy.com/support

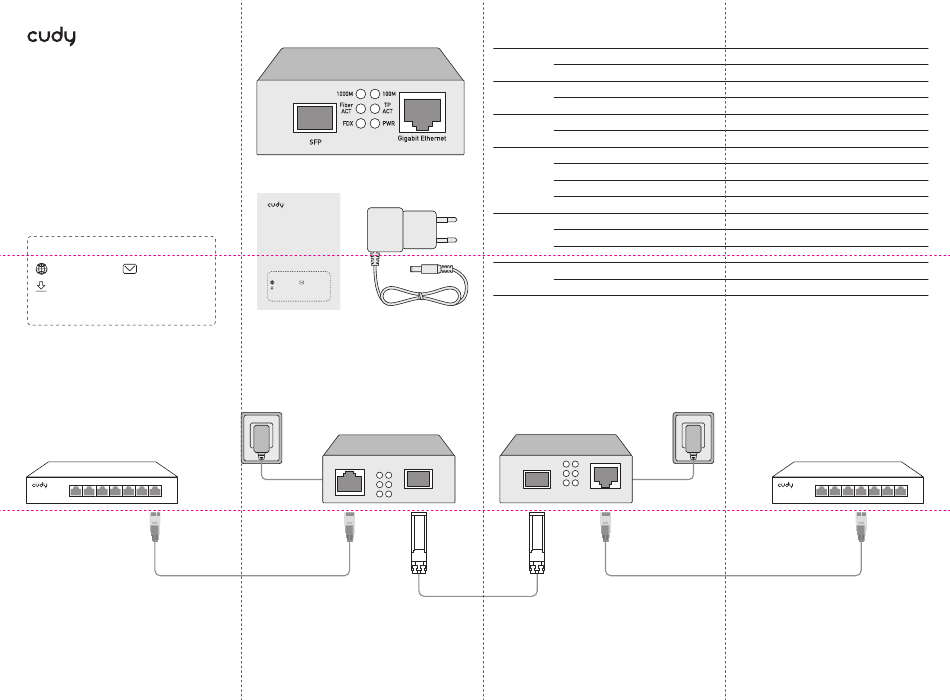

Scenario 1: Connect devices without optical interface
Note: This product excludes SFP modules; please purchase separately. It is recommended to use with Cudy SFP modules.
Note: Two converters with a pair of SFP modules can work cooperatively.
Package Contents
Quick Installation Guide
NEED TECH HELP?
810600366
www.cudy.com
support@cudy.com
www.cudy.com/download
Support: For technical support, the user guide and more
information, please visit: https://www.cudy.com/support
LEDs
PWR
On
Power on
Off
Power off
1000M
On
RJ45 port is negotiated at 1000Mbps
Off
RJ45 port isn't connected or negotiated at 1000Mbps
100M
On
RJ45 port is negotiated at 100Mbps
Off
RJ45 port isn't connected or negotiated at 100Mbps
TP ACT
On
RJ45 port is connected
Quick Flash
RJ45 port is transmitting or receiving data
Slow Flash
A break or other fault has been detected at the fiber or copper cable
Off
RJ45 port isn't connected
Fiber ACT
On
Fiber port is connected
Flash
Fiber port is transmitting or receiving data
Off
Fiber port isn't connected
FDX
On
RJ45 port is in full-duplex mode
Off
RJ45 port isn't in full-duplex mode
